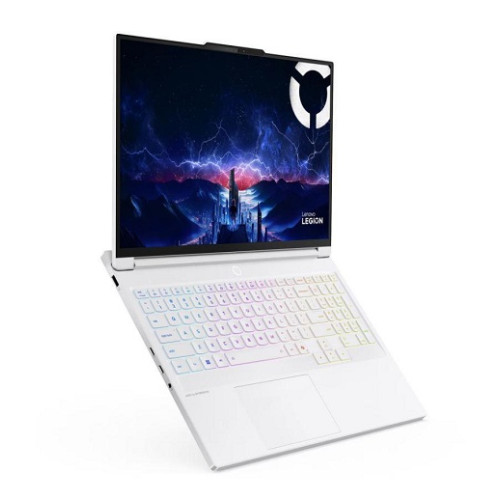

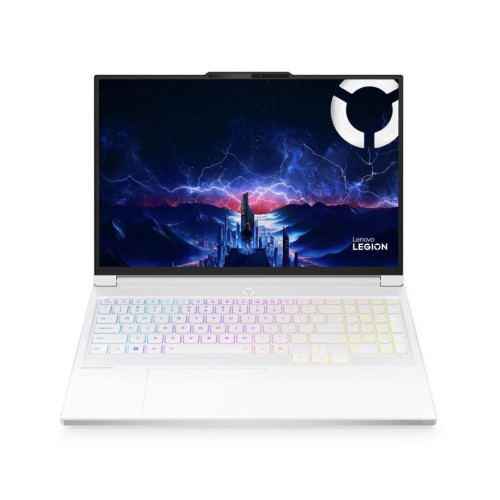

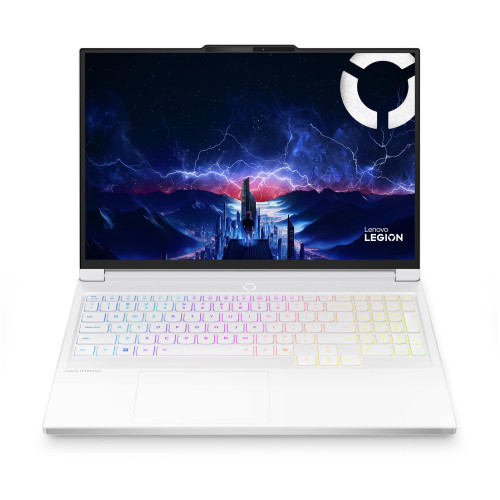

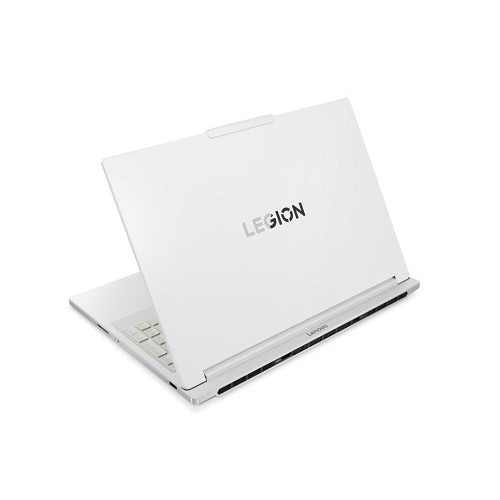

Legion 7 16IAX10

Technical Specifications

• Summary: Lenovo Legion 7 16IAX10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 275HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070. Product colour: White. Weight: 2 kg
• Vendor Homepage: https://www.lenovo.com/gb/en/
• Name: NB L7-16IAX10 CU9-275HX 16"/32GB/1TB 83KY0039RM LENOVO
• Category Code: NB
• NB Family name: Legion
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 275HX
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.4
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.6
• Performance-core base frequency: 2.7
• Efficient-core base frequency: 2.1
• Processor cache: 36
• Maximum turbo power: 160
• Processor base power: 55
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: OLED
• HD type: WQXGA
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• Contrast ratio (typical): 100000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000/Dolby Vision
• Colour name: Glacier white
• Product type: Laptop
• Product colour: White
• Form factor: Clamshell
• Housing material: Aluminium
• Market positioning: Gaming
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 36
• NPU performance up to: 13
• GPU performance up to: 8
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• NVIDIA G-SYNC: Yes
• Audio chip: Realtek ALC3306
• Audio system: Nahimic Audio
• Number of built-in speakers: 2
• Speakers manufacturer: Harman Kardon
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Webcam kill switch
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel HM870
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: Per-key RGB
• Keyboard language: English
• Copilot key: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 84
• Battery life (max): 3.98
• Continuous video playback time: 7.18
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 245
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD/Power on
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ErP Lot 3 TÜV Rheinland Flicker Free TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution)
• Width: 361.7
• Depth: 263.4
• Height (front): 15.9
• Height (rear): 17.9
• Weight: 2000
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01402
• Unit Calculated Weight: 3.7
