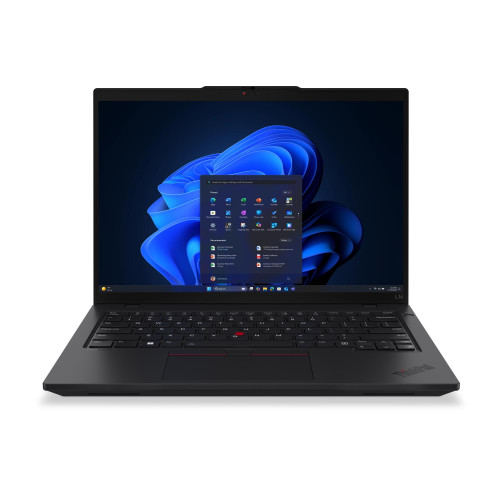

ThinkPad L14 Gen 6 (Intel)

Technical Specifications

• Summary: Lenovo ThinkPad L14 Gen 6 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255U. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.38 kg
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/thinkpad/thinkpadl/lenovo-thinkpad-l14-gen-6-14-inch-intel/len101t0129
• Name: NB TB L14 G6 CU5-225U 14"/16/512GB 11P 21S6001WRI LENOVO
• Category Code: NB
• NB Family name: ThinkPad
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 255U
• Processor cores: 12
• Processor threads: 14
• Processor boost frequency: 5.2
• Performance cores: 2
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.2
• Efficient-core Max Turbo Frequency: 4.2
• Low Power Efficient-core Max Turbo Frequency: 2.4
• Performance-core base frequency: 2
• Efficient-core base frequency: 1.7
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 12
• Maximum turbo power: 57
• Processor base power: 15
• Display diagonal: 14
• Display resolution: 1920 x 1200
• Panel type: IPS
• HD type: WUXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 400
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Contrast ratio (typical): 1000:1
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/Windows ML
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Memory channels: Dual-channel
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio system: Dolby Atmos
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• WWAN: Upgradable
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel SoC
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Spill-resistant keyboard: Yes
• Keyboard language: English
• Copilot key: Yes
• Operating system language: English/ROM
• Operating system installed: Windows 11 Pro
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 57
• Fast charging: Yes
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Smart card reader: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/Power on/SSD/Supervisor
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified 10.0
• Sustainability certificates: ENERGY STAR/EPEAT Gold/ErP/TCO
• Width: 313.7
• Depth: 226
• Height (front): 11.39
• Height (rear): 17.31
• Weight: 1380
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01201
• Unit Calculated Weight: 3
