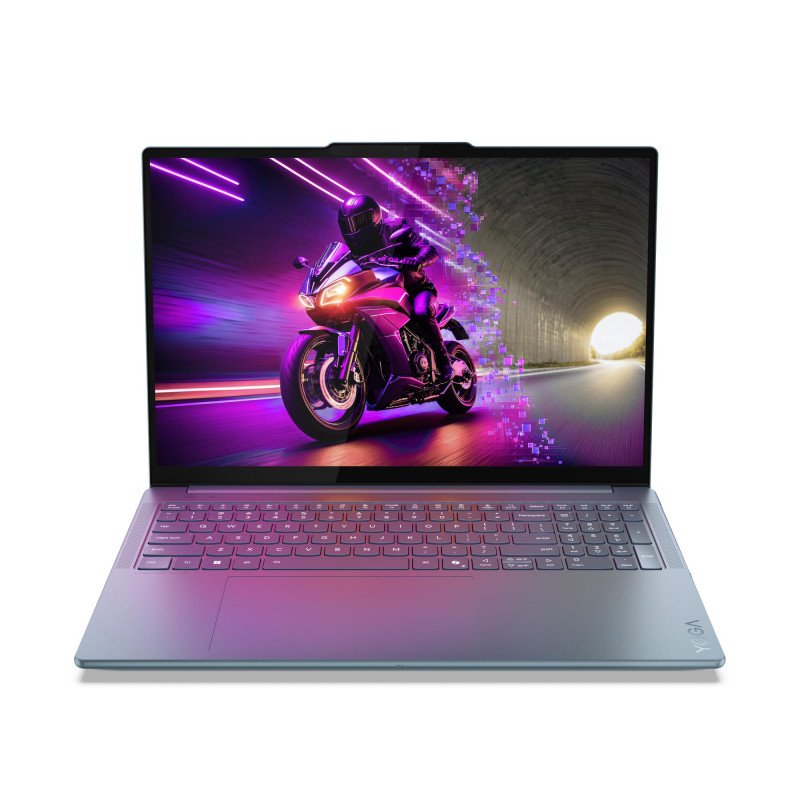

Yoga Pro 9 16IAH10

Technical Specifications

• Summary: Lenovo Yoga Pro 9 16IAH10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 40.6 cm (16"), HD type: WQXGA+, Display resolution: 2880 x 1800 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA GeForce RTX 5050. Operating system installed: Windows 11 Home. Product colour: Teal
• Vendor Homepage: https://www.lenovo.com/gb/en/
• Name: NB YGP9-16IAH10 CU7-255H 16"/32GB/1TB W11 83L0001NRM LENOVO
• Category Code: NB
• NB Family name: Yoga
• Model name: Yoga Pro 9 16IAH10
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 255H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.1
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.1
• Efficient-core Max Turbo Frequency: 4.4
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2
• Efficient-core base frequency: 1.5
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 24
• Maximum turbo power: 115
• Processor base power: 28
• Display diagonal: 16
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: WQXGA+
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 1100
• Maximum display brightness (HDR): 1100
• Standard Dynamic Range (SDR) brightness: 500
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000/Dolby Vision
• Colour name: Tidal Teal
• Product type: Laptop
• Product colour: Teal
• Form factor: Clamshell
• Housing material: Aluminium
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/Windows ML
• Total processor performance up to: 96
• NPU performance up to: 13
• GPU performance up to: 74
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8400
• Memory form factor: On-board
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5050
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T
• Audio chip: Realtek ALC3306
• Audio system: Dolby Atmos
• Number of built-in speakers: 6
• Built-in microphone: Yes
• Number of microphones: 4
• Front camera: Yes
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard language: English
• Copilot key: Yes
• Operating system architecture: 64-bit
• Operating system language: English/ROM
• Trial software: Office
• Operating system installed: Windows 11 Home
• Bundled software: Office Trial
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 84
• Battery life (max): 5.5
• Continuous video playback time: 14
• Fast charging: Yes
• AC adapter power: 170
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 100
• USB Type-C required charging power (min): 65
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: Carbon Neutral Certified ErP Lot 6/26 Intel Evo Platform Eyesafe Certified 2.0 TÃœV Rheinland Low Blue Light (Hardware Solution)
• Sustainability certificates: ENERGY STAR/EPEAT Gold
• Width: 362.72
• Depth: 253.69
• Height: 17.9
• Weight: 1920
• AC adapter included: Yes
• Box contents: Lenovo USB-C 4-in-1 Hub Gen 2
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01624
• Unit Calculated Weight: 4
