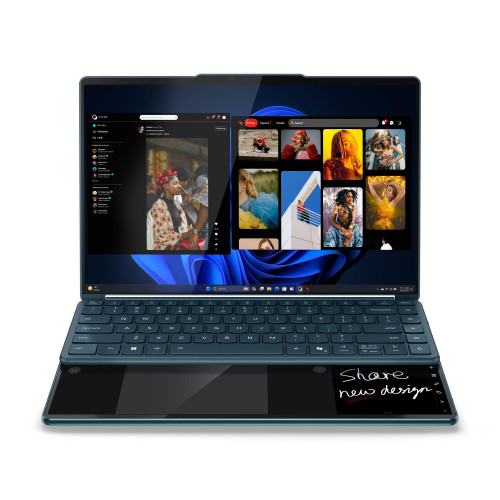

Yoga Book 9 14IAH10

Technical Specifications

• Summary: Lenovo Yoga Book 9 14IAH10. Product type: Hybrid (2-in-1), Form factor: Convertible (Dual Screen). Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 35.6 cm (14"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Home. Product colour: Teal
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/yoga/yoga-2-in-1-series/yoga-book-9i-gen-10-14-inch-intel/len101y0054
• Name: NB YG9-14IAH10 CU9-285H 14"T/32GB/1TB W11 83KJ0016RM LENOVO
• Category Code: NB
• NB Family name: Yoga
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 285H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.4
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.5
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2.9
• Efficient-core base frequency: 2.7
• Low Power Efficient-core Base Frequency: 1000
• Processor cache: 24
• Maximum turbo power: 115
• Processor base power: 45
• Display diagonal: 14
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 2.8K
• Touchscreen: Yes
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Maximum display brightness (HDR): 750
• Standard Dynamic Range (SDR) brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 600/Dolby Vision
• Colour name: Tidal Teal
• Product type: Hybrid (2-in-1)
• Product colour: Teal
• Form factor: Convertible (Dual Screen)
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 99
• NPU performance up to: 13
• GPU performance up to: 77
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8400
• Memory form factor: On-board
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T
• Audio chip: Realtek ALC3306
• Audio system: Dolby Atmos
• Number of built-in speakers: 4
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• Thunderbolt 4 ports quantity: 3
• Intel Thunderbolt 4: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel SoC
• Accelerometer: Yes
• Gyroscope: Yes
• Hall sensor: Yes
• Keyboard backlit: Yes
• Keyboard language: English
• Copilot key: Yes
• Operating system language: English/ROM
• Operating system installed: Windows 11 Home
• Bundled software: Office Trial
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 88
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD/Supervisor/User
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS/TÜV mark
• Certification: Carbon Neutral Certified ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant Intel Evo Platform Eyesafe Certified 2.0 TÜV Rheinland Low Blue Light (Hardware Solution) MIL-STD-810H military test passed (11 test items)
• Sustainability certificates: ENERGY STAR/EPEAT Gold/ErP
• Width: 315.09
• Depth: 209.5
• Height: 15.5
• Weight: 1219
• Mouse included: Yes
• AC adapter included: Yes
• Stylus pen: Yes
• Box contents: Yoga Slim Mouse + Folio Stand
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.023808
• Unit Calculated Weight: 5
