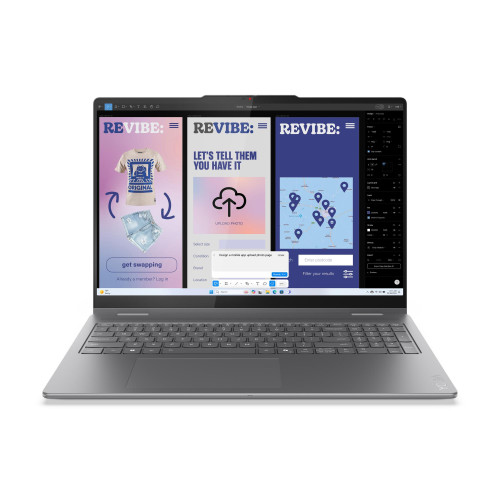

Yoga Yoga 7 2-in-1 16ILL10

Technical Specifications

• Summary: Lenovo Yoga 7 2-in-1 16ILL10 Copilot+ PC. Product type: Hybrid (2-in-1), Form factor: Convertible (Folder). Processor family: Intel Core Ultra 7, Processor model: 258V. Display diagonal: 40.6 cm (16"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 140V. Operating system installed: Windows 11 Pro. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/
• Name: NB YG7-16ILL10 CU7-258V 16"T/32GB/1TB 11P 83JT002RRM LENOVO
• Category Code: NB
• NB Family name: Yoga
• Model name: Yoga 7 2-in-1 16ILL10
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 258V
• Processor cores: 8
• Processor threads: 8
• Processor boost frequency: 4.8
• Performance cores: 4
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 4.8
• Low Power Efficient-core Max Turbo Frequency: 3.7
• Performance-core base frequency: 2.2
• Low Power Efficient-core Base Frequency: 2200
• Processor cache: 12
• Processor cache type: Smart Cache
• Maximum turbo power: 37
• Processor base power: 17
• Display diagonal: 16
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 2.8K
• Touchscreen: Yes
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 1100
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 120
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Luna Grey
• Product type: Hybrid (2-in-1)
• Product colour: Grey
• Form factor: Convertible (Folder)
• Housing material: Aluminium
• Copilot+ PC: Yes
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 115
• NPU performance up to: 47
• GPU performance up to: 64
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8533
• Memory form factor: On-board
• Maximum internal memory: 32
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics 140V
• Audio chip: Realtek ALC3306
• Number of built-in speakers: 4
• Built-in microphone: Yes
• Number of microphones: 4
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 1.4b
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Copilot key: Yes
• Operating system language: English/ROM
• Microsoft Copilot: Yes
• Trial software: Office
• Operating system installed: Windows 11 Pro
• Battery capacity: 70
• AC adapter power: 65
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: ENERGY STAR,EPEAT Gold,RoHS
• Width: 361
• Depth: 257
• Height: 15.85
• Weight: 1770
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01165
• Unit Calculated Weight: 4
