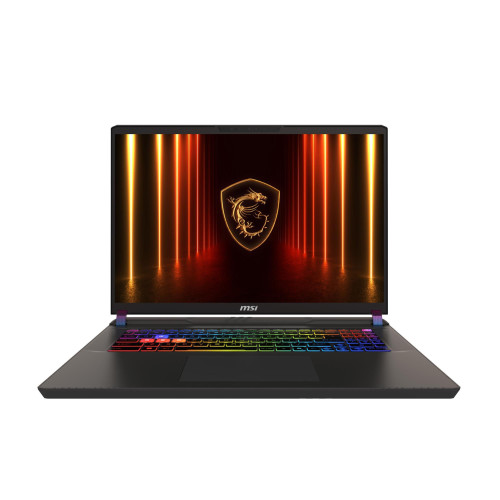

Vector 17 HX AI A2XWJG

Technical Specifications

• Description:

  Designed for STEM professionals, the Vector 17 HX AI delivers cutting-edge performance and rock-solid stability. It acts as a high-tech brain, seamlessly processing complex data with speed and precision. From software development to data analysis and simulations, the Vector 17 HX AI provides the performance and reliability engineers need to succeed.

• Vendor Homepage: www.msi.com/Laptop/Vector-17-HX-AI-A2XWX/Overview
• Name: NB VECTOR 17HXAI CU9-275HX 17"/64G/2TB W11 9S7-17S372-207 MSI
• Category Code: NB
• Model name: Vector 17 HX AI A2XWJG
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 275HX
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.4
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.6
• Performance-core base frequency: 2.7
• Efficient-core base frequency: 2.1
• Processor cache: 36
• Maximum turbo power: 160
• Processor base power: 55
• Display diagonal: 17
• Display resolution: 2560 x 1600
• Panel type: IPS-Level
• HD type: Quad HD+
• Touchscreen: No
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 400
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• Colour name: Cosmos Gray
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Metal,Plastic
• Original brand name: MSI
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 36
• NPU performance up to: 13
• GPU performance up to: 8
• Internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 6400
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 96
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• Number of SSDs installed: 1
• SSD capacity: 2000
• NVMe: Yes
• SSD interface: PCI Express
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5090
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 24
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio system: Nahimic 3
• Number of built-in speakers: 2
• Speaker power: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Video capturing speed: 30
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• WLAN controller model: Killer Wi-Fi 7 BE1750
• Ethernet LAN: Yes
• Ethernet LAN data rates: 2500
• Bluetooth: Yes
• Bluetooth version: 5.4
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 5 ports quantity: 2
• Intel Thunderbolt 5: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• Motherboard chipset: Intel HM870
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 24-zone RGB
• Keyboard number of keys: 99
• Keyboard language: English
• Copilot key: Yes
• Operating system installed: Windows 11 Home
• Number of battery cells: 4
• Battery capacity: 5845
• Battery capacity: 90
• AC adapter power: 330
• AC adapter input voltage: 90 - 264
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Width: 380.34
• Depth: 297.97
• Height (front): 22.85
• Height (rear): 28.75
• Weight: 3000
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.020925
• Unit Calculated Weight: 5.3
