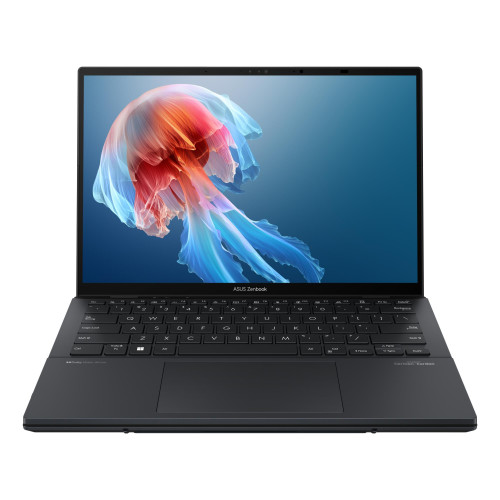

ZenBook Series DUO

Technical Specifications

• Summary: ASUS Zenbook Duo UX8406CA-QL118X. Product type: Hybrid (2-in-1), Form factor: Convertible (Detachable). Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Pro. Product colour: Grey
• Vendor Homepage: https://www.asus.com/laptops/for-home/zenbook/asus-zenbook-duo-2024-ux8406/
• Name: NB UX8406CA CU7-255H 14"T 32GB/1TB W11P UX8406CA-QL118X ASUS
• Category Code: NB
• NB Family name: ZenBook Series
• Model name: DUO
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 255H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.1
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.1
• Efficient-core Max Turbo Frequency: 4.4
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2
• Efficient-core base frequency: 1.5
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 24
• Maximum turbo power: 115
• Processor base power: 28
• Display diagonal: 14
• Display resolution: 1920 x 1200
• Panel type: OLED
• HD type: WUXGA
• Touchscreen: Yes
• Display number of colours: 1.07 billion colours
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 400
• Maximum display brightness (HDR): 500
• Colour gamut: 100
• Low Blue Light technology: Yes
• RGB colour space: DCI-P3
• Display response rise/fall: 0.2
• Maximum refresh rate: 60
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: HDR True Black 500
• Colour name: Inkwell Gray
• Product type: Hybrid (2-in-1)
• Product colour: Grey
• Form factor: Convertible (Detachable)
• Housing material: Aluminium,Magnesium
• Market positioning: Home
• Introduction year: 2024
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 96
• NPU performance up to: 13
• GPU performance up to: 74
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Maximum internal memory: 32
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T
• Audio system: Smart Amp
• Speakers manufacturer: Harman Kardon
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Ethernet LAN: No
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel® Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Repairability index: 9.4
• Pointing device: Touchpad
• Numeric keypad: No
• Operating system architecture: 64-bit
• Operating system installed: Windows 11 Pro
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 75
• Battery life (max): 8
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 3.25
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Face recognition: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Sustainability certificates: ENERGY STAR/EPEAT Gold
• Width: 313.5
• Depth: 217.9
• Height (front): 14.6
• Height (rear): 19.9
• Weight: 1650
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0126
• Unit Calculated Weight: 5
