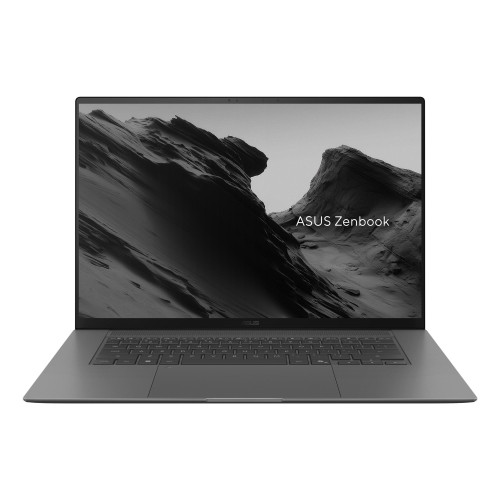

ZenBook Series UM5606GA-SR232X

Technical Specifications

• Summary: ASUS Zenbook S16 UM5606GA-SR232X. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 9, Processor model: 465, Processor frequency: 2 GHz. Display diagonal: 40.6 cm (16"), HD type: 3K, Display resolution: 2880 x 1800 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 880M. Operating system installed: Windows 11 Pro. Product colour: Grey
• Vendor Homepage: https://www.asus.com/laptops/for-home/zenbook/asus-zenbook-s-16-um5606
• Name: NB UM5606GA RAI9-465 16" 32GB/1TB W11P UM5606GA-SS231X ASUS
• Category Code: NB
• NB Family name: ZenBook Series
• Model name: UM5606GA-SR232X
• Processor manufacturer: AMD
• Processor family: AMD Ryzen AI 9
• Processor generation: AMD Ryzen AI 400 Series
• Processor model: 465
• Processor cores: 10
• Processor threads: 20
• Processor boost frequency: 5
• Processor frequency: 2
• Processor cache type: L2 & L3
• L3 cache: 24
• L2 cache: 10
• Display diagonal: 16
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 3K
• Display number of colours: 1.07 billion colours
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 500
• Maximum display brightness (HDR): 1000
• Colour gamut: 100
• Low Blue Light technology: Yes
• RGB colour space: DCI-P3
• Display response rise/fall: 0.2
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000
• Colour name: Antrim Gray
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Market positioning: Home
• Copilot+ PC: Yes
• Neural processor unit (NPU): AMD Ryzen AI
• Total processor performance up to: 73
• NPU performance up to: 50
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Maximum internal memory: 32
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 880M
• On-board graphics card 4K support: Yes
• On-board graphics card 8K support: Yes
• AMD FreeSync: Yes
• Audio system: Smart Amp
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB4 Gen 3x2 ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Copilot key: Yes
• Operating system architecture: 64-bit
• Microsoft Copilot: Yes
• Trial software: 1-month trial for new Microsoft 365 customers. Credit card required.
• Operating system installed: Windows 11 Pro
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 83
• AC adapter power: 68
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 3.4
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR
• Width: 353.6
• Depth: 243
• Height (front): 11.9
• Height (rear): 12.9
• Weight: 1500
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0105
• Unit Calculated Weight: 3
