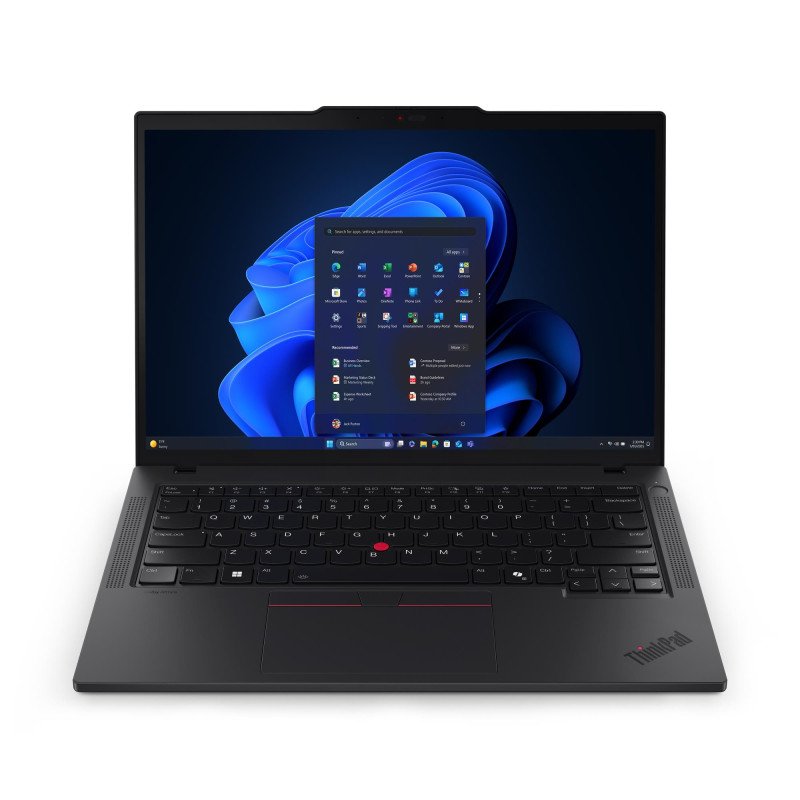

ThinkPad T14 Gen 6 (Intel)

Technical Specifications

• Description:
  • Intel Core Ultra 7 255U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 5.2GHz, 12MB
  • 14" WUXGA (1920x1200) IPS 400nits 45% NTSC 60Hz DBEF5
  • 1x 32GB SODIMM DDR5-5600
  • 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
  • Intel Graphics
  • Windows 11 Pro

• Summary: Lenovo ThinkPad T14 Gen 6 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255U. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.38 kg
• Vendor Homepage: https://www.lenovo.com/
• Name: NB TP T14 G6 CU7-255U 14"/32/512GB 11P 21QC00BXRI LENOVO
• Category Code: NB
• NB Family name: ThinkPad
• Model name: T14 Gen 6 (Intel)
• Model: T14 Gen 6 (Intel)
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor model: 255U
• Processor cores: 12
• Display diagonal: 14
• Display resolution: 1920 x 1200
• Panel type: IPS
• HD type: WUXGA
• Touchscreen: No
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 400
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 32
• Maximum internal memory: 64
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• Discrete graphics card: No
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio chip: Realtek ALC3287
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• Near Field Communication (NFC): No
• WWAN: Upgradable
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel® Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel SoC
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Numeric keypad: No
• Keyboard language: English
• Operating system language: English/ROM
• Operating system installed: Windows 11 Pro
• Battery capacity: 57
• AC adapter power: 65
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Smart card reader: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS
• Width: 315.9
• Depth: 223.7
• Height (front): 10.9
• Height (rear): 16.13
• Weight: 1380
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00966
• Unit Calculated Weight: 4
