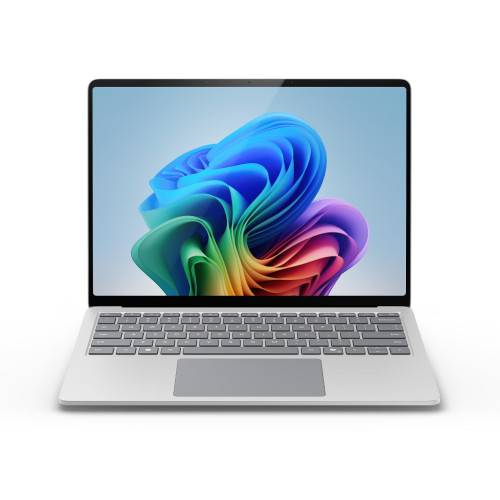

Surface 7th Edition 5G

Technical Specifications

• Summary: Microsoft Surface Laptop 7 Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 268V. Display diagonal: 35 cm (13.8"), Display resolution: 2304 x 1536 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 140V. Mobile network generation: 5G. Operating system installed: Windows 11 Pro. Product colour: Platinum
• Vendor Homepage: https://www.microsoft.com/en-us/d/surface-laptop-for-business-copilot-pc-intel/93dzmw6q4w2b?icid=CNav_BusinessStore_Surface
• Name: NB SURFACE 5G 13.8 CU7 32GB/1TB W11P EP2-40092 MICROSOFT
• Category Code: NB
• NB Family name: Surface
• Model name: 7th Edition 5G
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 268V
• Processor cores: 8
• Processor threads: 8
• Processor boost frequency: 5
• Performance cores: 4
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 5
• Low Power Efficient-core Max Turbo Frequency: 3.7
• Performance-core base frequency: 2.2
• Low Power Efficient-core Base Frequency: 2200
• Processor cache: 12
• Processor cache type: Smart Cache
• Maximum turbo power: 37
• Processor base power: 17
• Display diagonal: 13.8
• Display resolution: 2304 x 1536
• Touchscreen: Yes
• Display technology marketing name: PixelSense Flow
• LED backlight: Yes
• Native aspect ratio: 3:2
• Anti-reflective coating: Yes
• Display glass type: Corning Glass
• Display brightness: 600
• Maximum display brightness (HDR): 600
• Standard Dynamic Range (SDR) brightness: 600
• Pixel density: 201
• RGB colour space: sRGB
• Maximum refresh rate: 120
• Contrast ratio (typical): 1300:1
• Product type: Laptop
• Product colour: Platinum
• Form factor: Clamshell
• Housing material: Aluminium
• Market positioning: Business
• Introduction year: 2025
• Country of origin: China
• Copilot+ PC: Yes
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 118
• NPU performance up to: 48
• GPU performance up to: 66
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Maximum internal memory: 32
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics 140V
• Audio system: Dolby Atmos
• Speakers manufacturer: OmniSonic
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Mobile network generation: 5G
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Mobile network connection: Yes
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Bluetooth: Yes
• Bluetooth Low Energy (BLE): Yes
• Bluetooth version: 5.4
• WWAN: Installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB4 Gen 3x2 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• Docking connector: Yes
• Charging port type: Surface Connect
• USB Type-C DisplayPort Alternate Mode: Yes
• Ambient light sensor: Yes
• GPS (satellite): Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Copilot key: Yes
• Operating system architecture: 64-bit
• Operating system installed: Windows 11 Pro
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 54
• Battery life (max): 20
• Browsing time (Wi-Fi): 12
• Continuous video playback time: 20
• AC adapter power: 39
• AC adapter frequency: 50/60
• AC adapter output voltage: 15
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Wi-Fi certified: Yes
• Sustainability certificates: ENERGY STAR
• Width: 301
• Depth: 220
• Height: 17.8
• Weight: 1390
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.004335
• Unit Calculated Weight: 2.36
