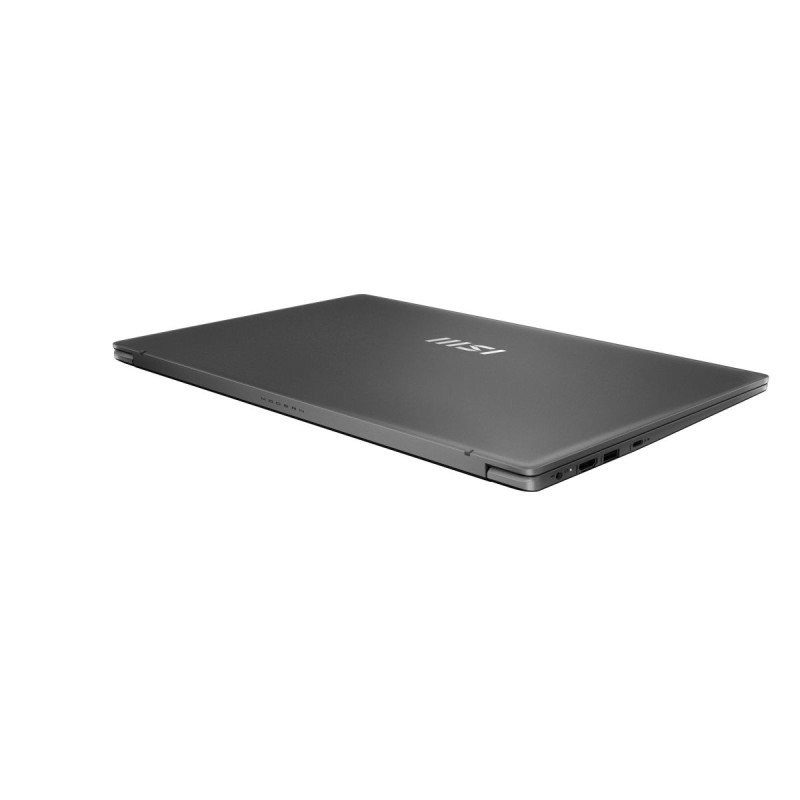

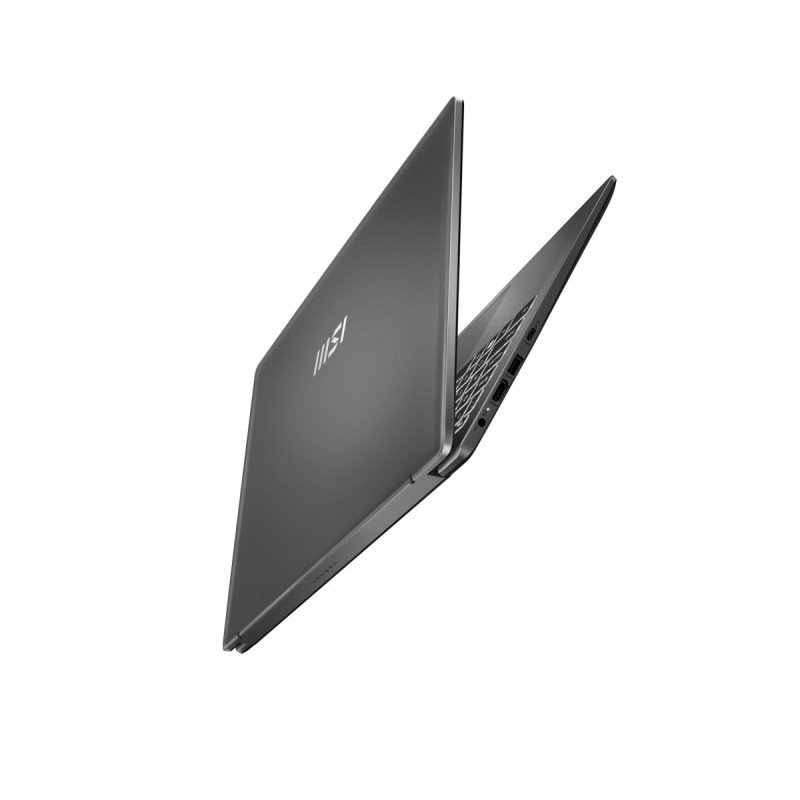

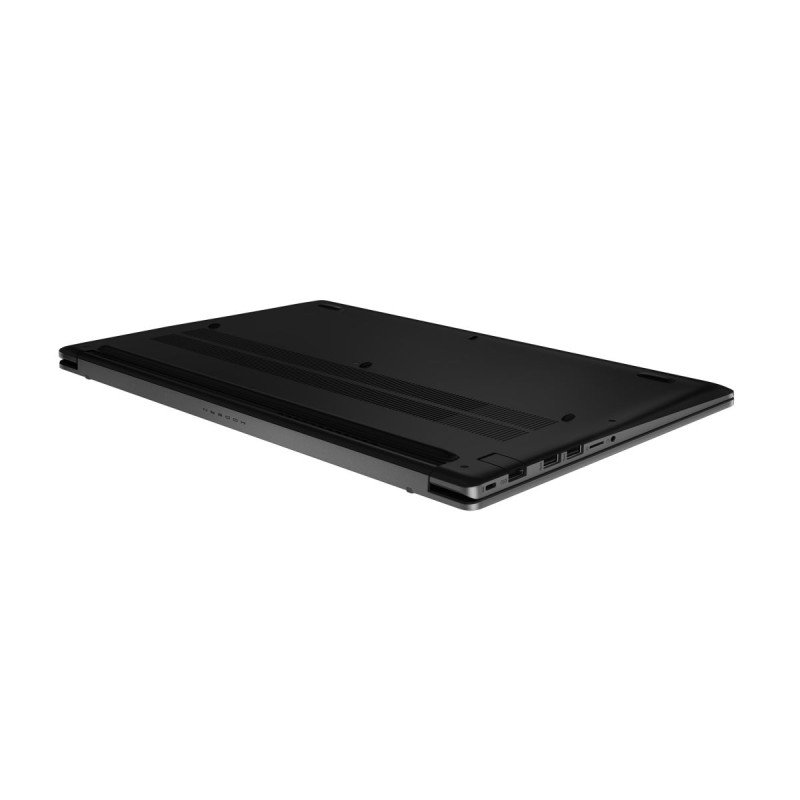

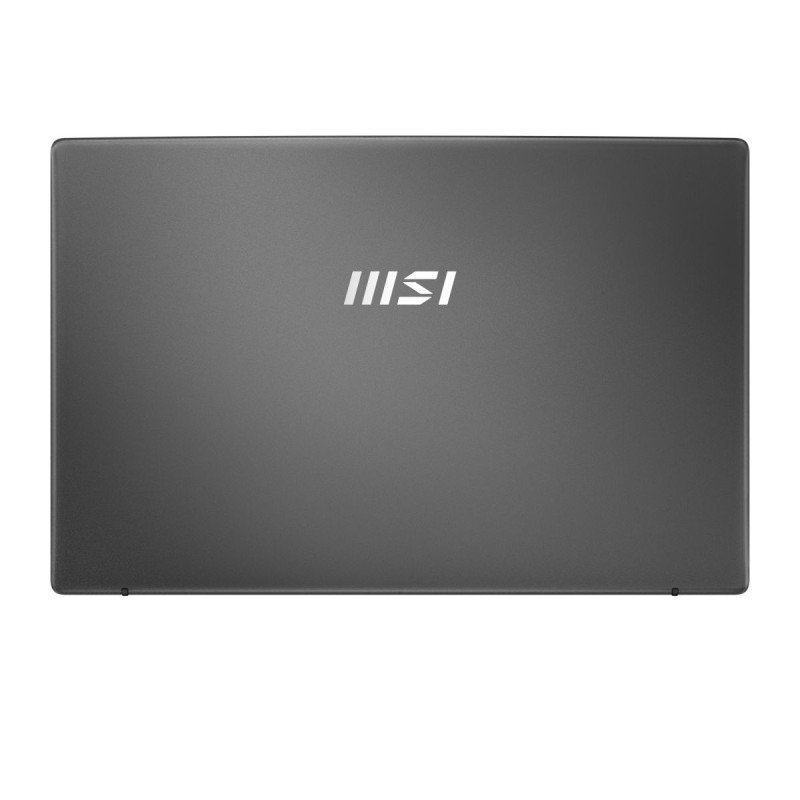

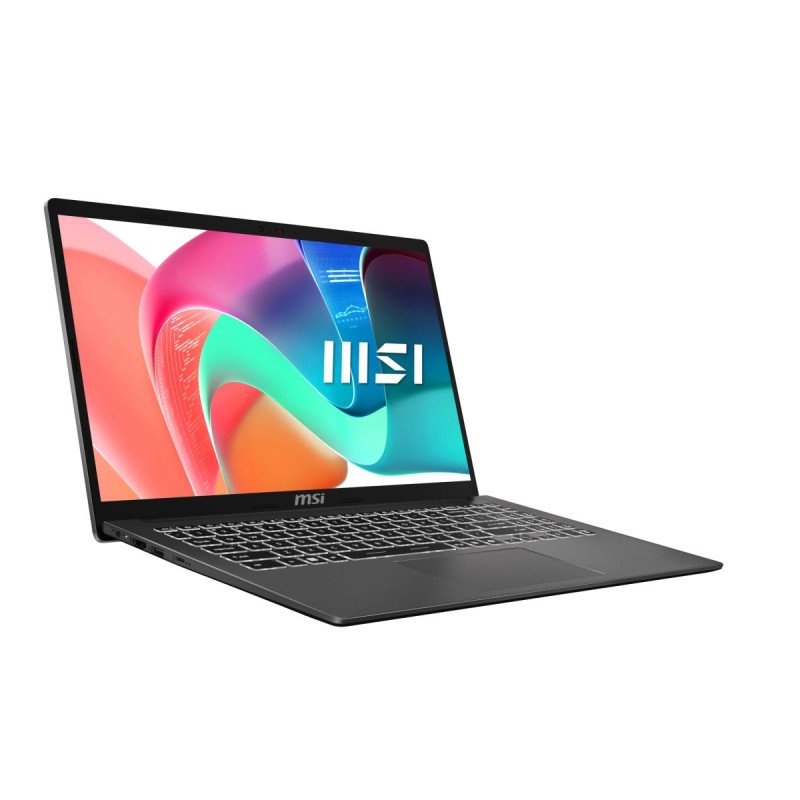

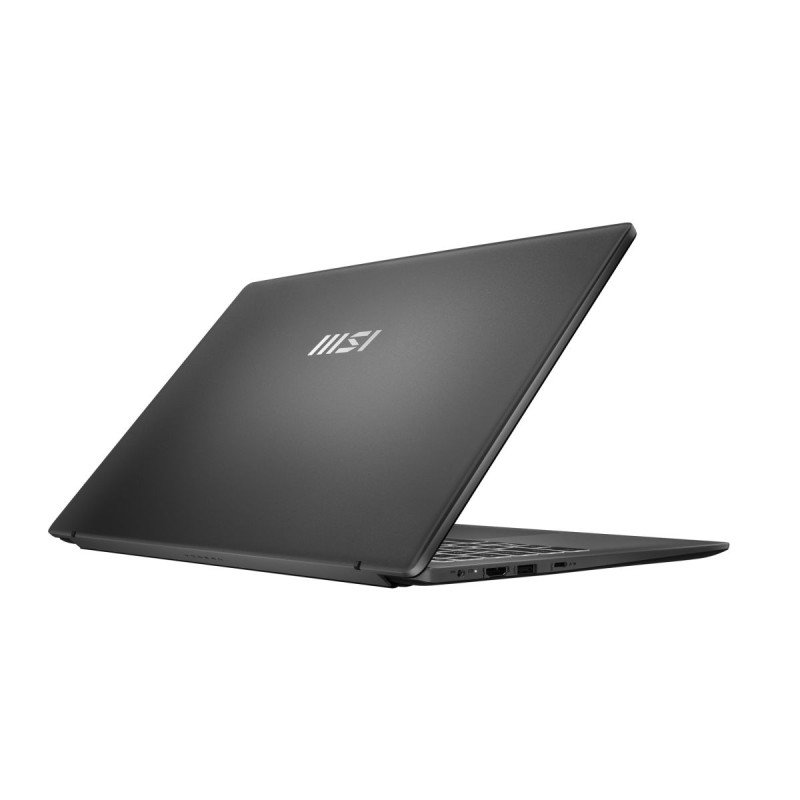

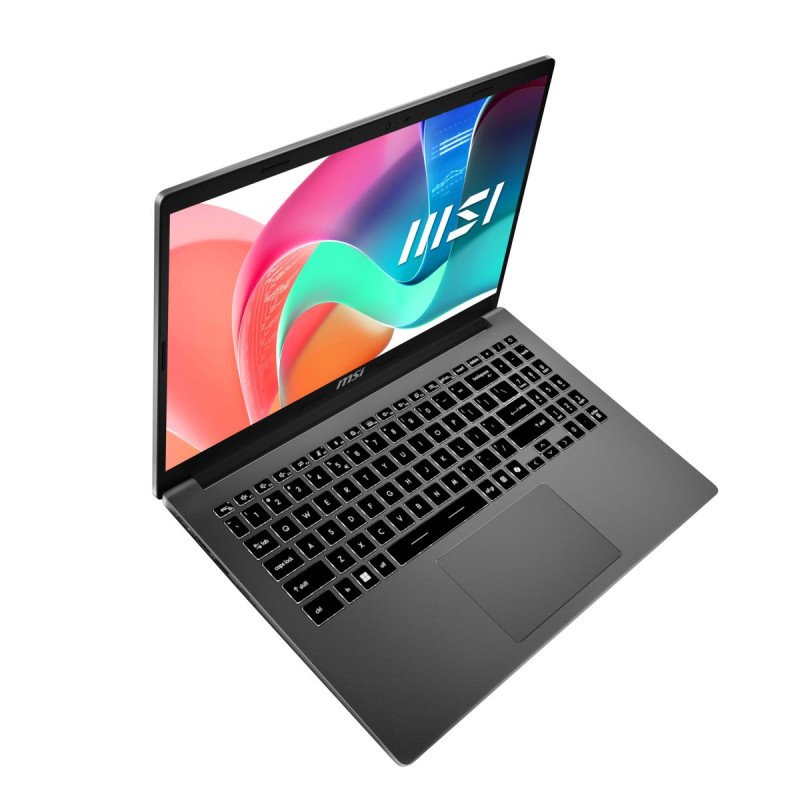

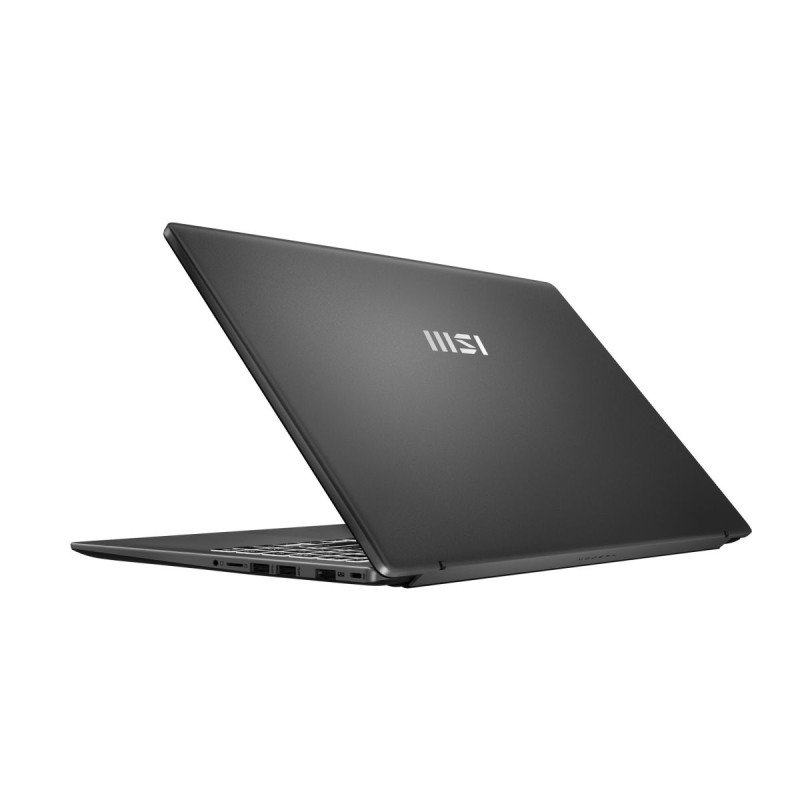

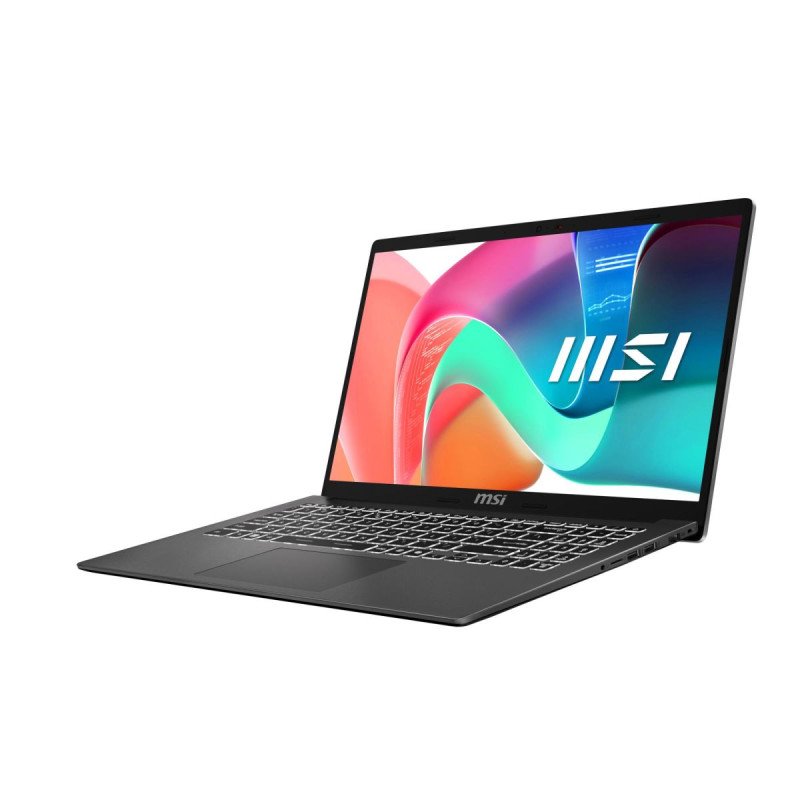

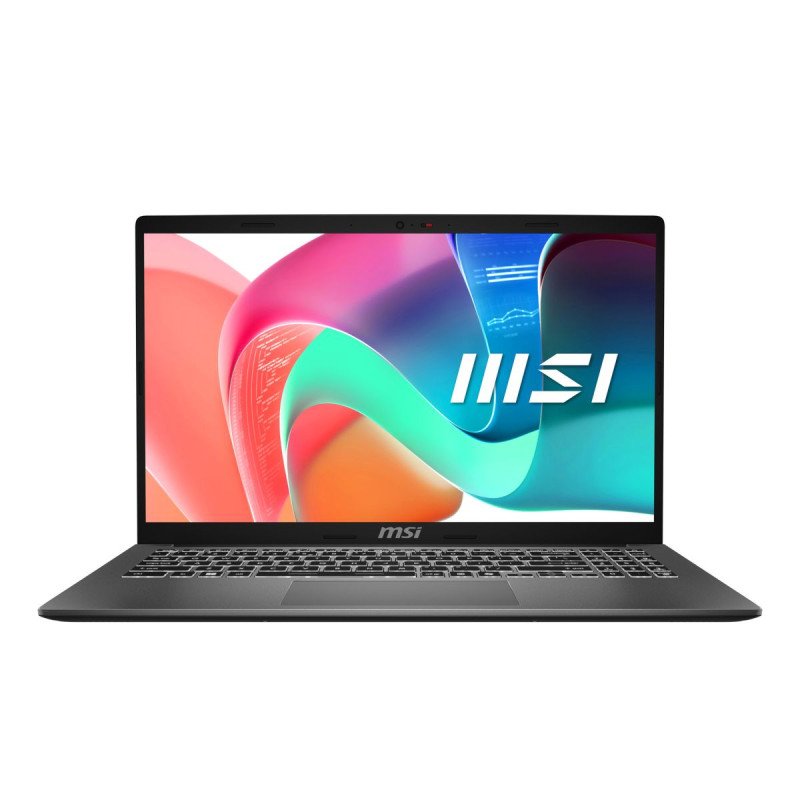

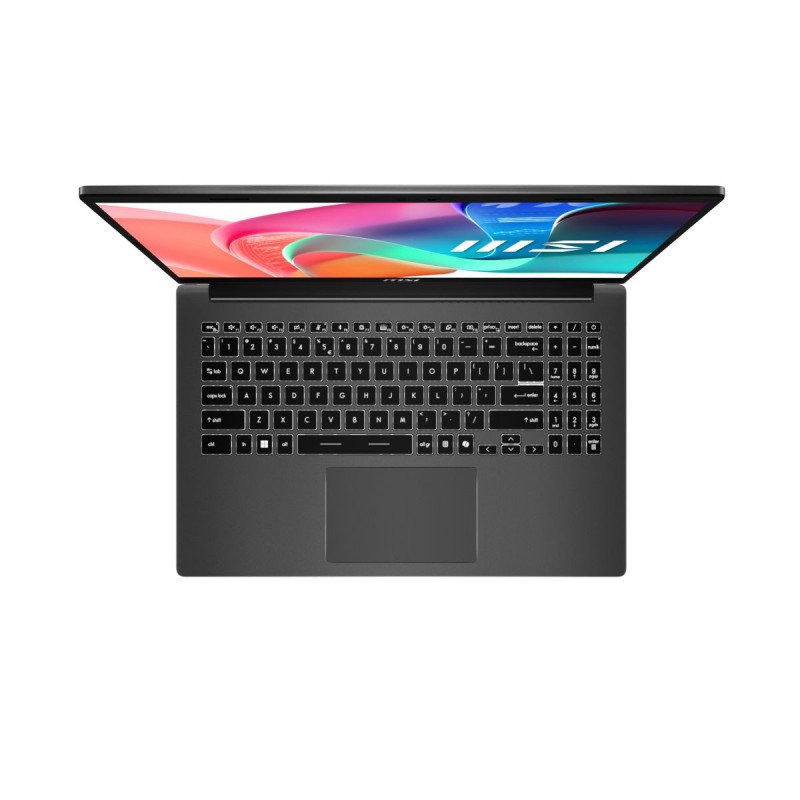

Modern 15

Technical Specifications

• Summary: MSI Modern 15 F13MG-1003XRO. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-1334U. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: FreeDOS. Product colour: Grey. Weight: 1.7 kg
• Vendor Homepage: https://www.msi.com/index.php
• Name: NB MODERN 15 CI5-1334U 15"/16/512GB 9S7-15S121-1003 MSI
• Category Code: NB
• NB Family name: Modern
• Model name: Modern 15 F13MG-1003XRO
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: 13th gen Intel Core i5
• Processor model: i5-1334U
• Processor cores: 10
• Processor threads: 12
• Processor boost frequency: 4.6
• Performance cores: 2
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 4.6
• Efficient-core Max Turbo Frequency: 3.4
• Processor cache: 12
• Processor cache type: Smart Cache
• Processor socket: BGA 1744
• Maximum turbo power: 55
• Processor base power: 15
• Display diagonal: 15.6
• Display resolution: 1920 x 1080
• Panel type: IPS-Level
• HD type: Full HD
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Colour name: Platinum Gray
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Market positioning: Business
• Original brand name: MSI
• Internal memory: 16
• Internal memory type: DDR4-SDRAM
• Memory clock speed: 3200
• Memory layout (slots x size): 2 x 8
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Iris Xe Graphics
• On-board graphics card model: Intel Iris Xe Graphics
• Audio system: Hi-Res Audio
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720
• Video capturing speed: 30
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Motherboard chipset: Intel SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: White
• Keyboard number of keys: 99
• Copilot key: Yes
• Operating system installed: FreeDOS
• Number of battery cells: 3
• Battery capacity: 4050
• Battery capacity: 46.8
• AC adapter power: 65
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: MIL-STD-810H/G
• Width: 358.9
• Depth: 235.9
• Height: 19.9
• Weight: 1700
• AC adapter included: Yes
• Warranty period: 2
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01152
• Unit Calculated Weight: 3
