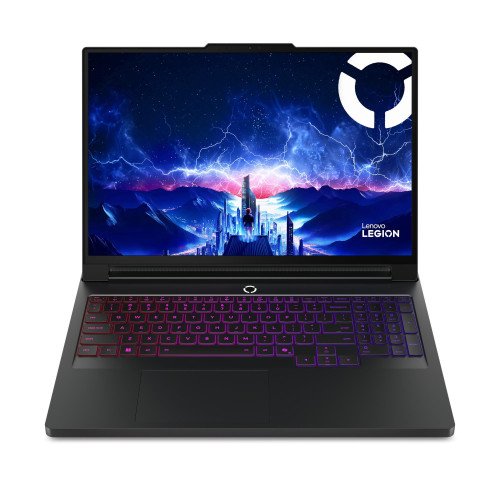

Legion Pro 7 16IAX10H

Technical Specifications

• Summary: Lenovo Legion Pro 7 16IAX10H. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 290HX Plus. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5080. Product colour: Black. Weight: 2.57 kg
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/legion-laptops/legion-pro-series/legion-pro-7i-gen-10-16-inch-intel/len101g0039
• Name: NB LP7-16IAX10H CU9-290HX 16"/32GB/1TB 83F500RCRM LENOVO
• Category Code: NB
• Model name: Legion Pro 7 16IAX10H
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 290HX Plus
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.5
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.5
• Efficient-core Max Turbo Frequency: 4.7
• Performance-core base frequency: 2.7
• Efficient-core base frequency: 1.8
• Processor cache: 36
• Processor cache type: Smart Cache
• Processor socket: BGA 2114
• Maximum turbo power: 160
• Processor base power: 55
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: OLED
• HD type: WQXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Maximum display brightness (HDR): 1100
• Standard Dynamic Range (SDR) brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000/Dolby Vision
• Colour name: Eclipse black
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Display back cover material: Aluminium
• Housing material: Aluminium
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 36
• NPU performance up to: 13
• GPU performance up to: 8
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 6400
• Memory form factor: SO-DIMM
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 5.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5080
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 16
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Total Graphics Power (TGP): 175
• NVIDIA G-SYNC: Yes
• Audio chip: Realtek ALC3306
• Audio system: Nahimic Audio
• Number of built-in speakers: 4
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 5
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 2500
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel HM870
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: Per-key RGB
• Keyboard language: English
• Copilot key: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 99.9
• Fast charging: Yes
• AC adapter power: 400
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 100
• USB Type-C required charging power (min): 95
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD/Power on/User
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Certification: ErP Lot 3 RoHS compliant
• Width: 364.38
• Depth: 275.94
• Height (front): 21.9
• Height (rear): 26.65
• Weight: 2570
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02016
• Unit Calculated Weight: 4
• NB Family name: Legion
