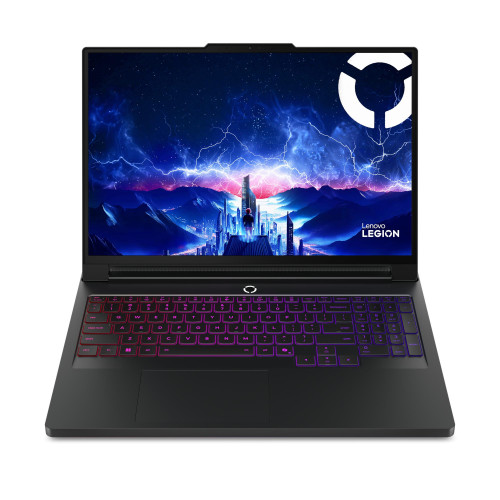

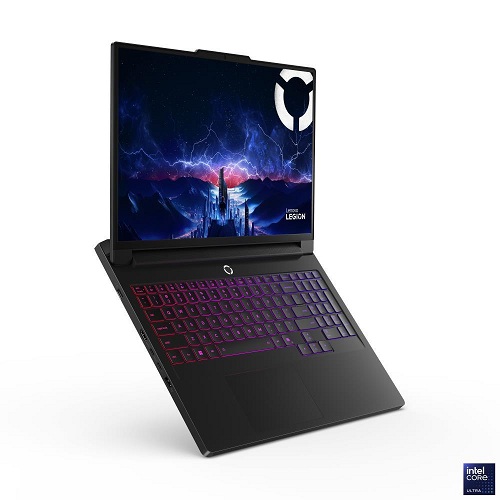

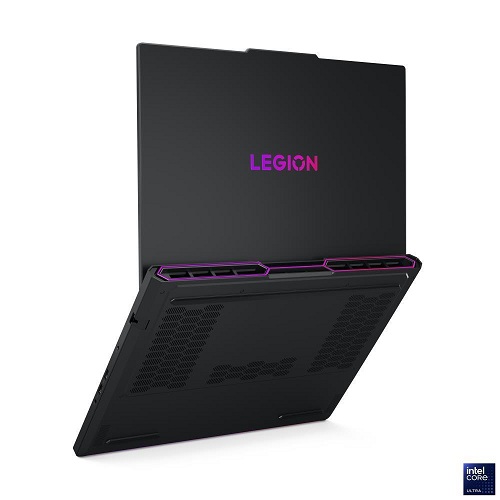

Legion Pro 7 16IAX10H

Technical Specifications

• Summary: Lenovo Legion Pro 7 16IAX10H. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 275HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5090. Product colour: Black. Weight: 2.57 kg
• Vendor Homepage: https://www.lenovo.com/
• Name: NB LP7-16IAX10H CU9-275HX 16"/64GB/1TB 83F50049RM LENOVO
• Category Code: NB
• NB Family name: Legion
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 275HX
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.4
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.6
• Performance-core base frequency: 2.7
• Efficient-core base frequency: 2.1
• Processor cache: 36
• Maximum turbo power: 160
• Processor base power: 55
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: OLED
• HD type: WQXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Eclipse Black
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Aluminium
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 36
• NPU performance up to: 13
• GPU performance up to: 8
• Internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 6400
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 32
• Maximum internal memory: 64
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express
• SSD form factor: M.2
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5090
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 24
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio chip: Realtek ALC3306
• Number of built-in speakers: 4
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera resolution (numeric): 5
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel HM870
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: Per-key RGB
• Battery capacity: 99.9
• AC adapter power: 400
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: RoHS
• Width: 364.38
• Depth: 275.94
• Height (front): 21.9
• Height (rear): 26.65
• Weight: 2570
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01568
• Unit Calculated Weight: 4
