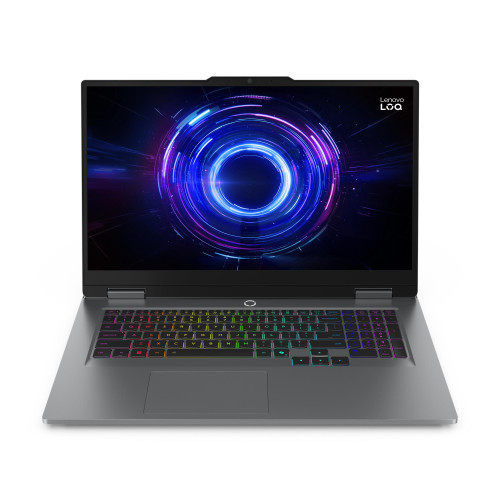

LOQ 17IRX10

Technical Specifications

• Summary: Lenovo LOQ 17IRX10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core i7, Processor model: i7-14700HX, Processor frequency: 2.1 GHz. Display diagonal: 43.9 cm (17.3"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/
• Name: NB LOQ-17IRX10 CI7-14700HX 17"/32GB/1TB 83JH0042RM LENOVO
• Category Code: NB
• NB Family name: LOQ
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: Intel Core i7 (14th gen)
• Processor model: i7-14700HX
• Processor cores: 20
• Processor threads: 28
• Processor boost frequency: 5.5
• Processor frequency: 2.1
• Performance cores: 8
• Efficient cores: 12
• Performance-core Max Turbo Frequency: 5.5
• Efficient-core Max Turbo Frequency: 3.9
• Performance-core base frequency: 2.1
• Efficient-core base frequency: 1.5
• Processor cache: 33
• Processor cache type: Smart Cache
• Maximum turbo power: 157
• Processor base power: 55
• Display diagonal: 17.3
• Display resolution: 1920 x 1080
• Panel type: IPS
• HD type: Full HD
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 300
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 165
• Colour name: Luna Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 32
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5060
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Audio chip: Realtek ALC3287
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera resolution (numeric): 5
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.2
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel HM770
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 24-zone RGB
• Battery capacity: 60
• AC adapter power: 245
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: RoHS
• Width: 398.4
• Depth: 276.2
• Height (front): 22.95
• Height (rear): 25.25
• Weight: 2900
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.019647
• Unit Calculated Weight: 4.3
