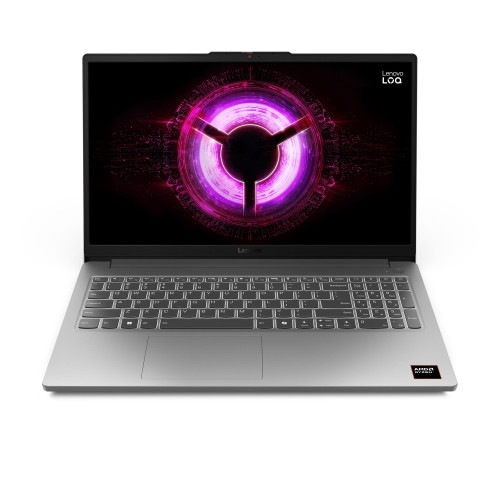

LOQ LOQ 15ARP10E

Technical Specifications

• Summary: Lenovo LOQ 15ARP10E. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen 5, Processor model: 7535HS, Processor frequency: 3.3 GHz. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 660M, Discrete graphics card model: NVIDIA GeForce RTX 3050. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/loq-laptops/loq-15-series/lenovo-loq-essential-15arp10/83s0cto1wwgb1?orgRef=https%253A%252F%252Fwww.google.com%252F&srsltid=AfmBOorQRScvi0I780rj9Ejmz8Yg8-eALTLMMm5u5PVh6jlpZ7b8l7cQ
• Name: NB LOQ-15ARP10E R5-7535HS 15"/16GB/1TB 83S0002ERM LENOVO
• Category Code: NB
• NB Family name: LOQ
• Model name: LOQ 15ARP10E
• Processor manufacturer: AMD
• Processor family: AMD Ryzen 5
• Processor generation: AMD Ryzen 7000 Series
• Processor model: 7535HS
• Processor cores: 6
• Processor threads: 12
• Processor boost frequency: 4.55
• Processor frequency: 3.3
• Processor cache type: L2 & L3
• L3 cache: 16
• L2 cache: 3
• Display diagonal: 15.6
• Display resolution: 1920 x 1080
• Panel type: IPS
• HD type: Full HD
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 300
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 144
• Contrast ratio (typical): 1000:1
• Colour name: Luna grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
• Market positioning: Gaming
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 4800
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 16
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 3050
• Discrete graphics memory type: GDDR6
• Discrete graphics card memory: 6
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 660M
• AMD FreeSync: Yes
• Audio chip: Realtek ALC3287
• Audio system: Nahimic Audio
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.2
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• Motherboard chipset: AMD SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: White
• Keyboard language: English
• Copilot key: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 57.5
• Battery life (max): 3.5
• Continuous video playback time: 10.5
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 135
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/Power on
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ErP Lot 6/26
• Width: 359.2
• Depth: 236
• Height (front): 19.9
• Height (rear): 22.95
• Weight: 1800
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0105
• Unit Calculated Weight: 3
