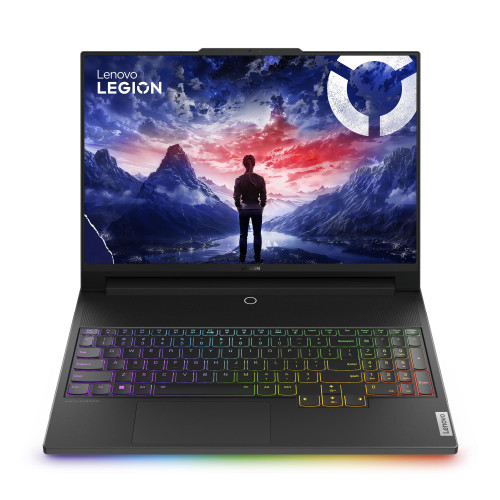

Legion 9 18IAX10

Technical Specifications

• Summary: Lenovo Legion 9 18IAX10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 275HX. Display diagonal: 45.7 cm (18"), HD type: WQUXGA, Display resolution: 3840 x 2400 pixels. Internal memory: 192 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5080. Product colour: Black. Weight: 3.5 kg
• Vendor Homepage: https://www.lenovo.com/
• Name: NB L9-18IAX10 CU9-275HX 18"/192GB/4TB 83EY002WRM LENOVO
• Category Code: NB
• NB Family name: Legion
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 275HX
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.4
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.6
• Performance-core base frequency: 2.7
• Efficient-core base frequency: 2.1
• Processor cache: 36
• Maximum turbo power: 160
• Processor base power: 55
• Display diagonal: 18
• Display resolution: 3840 x 2400
• Panel type: IPS
• HD type: WQUXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 520
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR 400/Dolby Vision
• Colour name: Eclipse Black
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Aluminium
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 36
• NPU performance up to: 13
• GPU performance up to: 8
• Internal memory: 192
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 4000
• Memory form factor: SO-DIMM
• Memory slots: 4x SO-DIMM
• Maximum internal memory: 192
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• Number of SSDs installed: 1
• SSD capacity: 2000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5080
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 16
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio chip: Realtek ALC3306
• Number of built-in speakers: 6
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• Ethernet LAN: Yes
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel HM870
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: Per-key RGB
• Battery capacity: 99.9
• AC adapter power: 400
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: RoHS
• Width: 403
• Depth: 296.9
• Height (front): 23.9
• Height (rear): 27.95
• Weight: 3500
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02574
• Unit Calculated Weight: 7.6
