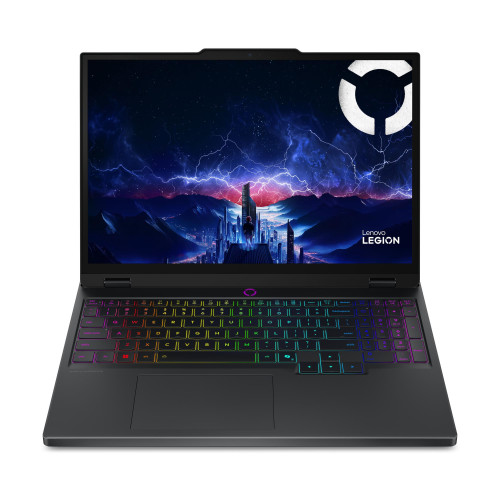

Legion 5 15IRX10

Technical Specifications

• Summary: Lenovo Legion 5 15IRX10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core i9, Processor model: i9-14900HX. Display diagonal: 38.4 cm (15.1"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070. Product colour: Black. Weight: 1.9 kg
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/legion-laptops/legion-5-series/lenovo-legion-5i-gen-10-(15-inch-intel)/len101g0042?orgRef=https%253A%252F%252Fwww.google.com%252F&srsltid=AfmBOopnpbyj8I6IpyGX4JAykD1BYtg93gD6qBxTTASLX8fN5akYQWi4
• Name: NB L5-15IRX10 CI9-14900HX 15"/32GB/1TB 83LY008ARM LENOVO
• Category Code: NB
• NB Family name: Legion
• Processor manufacturer: Intel
• Processor family: Intel Core i9
• Processor generation: Intel Core i9 (14th gen)
• Processor model: i9-14900HX
• Processor cores: 24
• Processor threads: 32
• Processor boost frequency: 5.8
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.8
• Efficient-core Max Turbo Frequency: 4.1
• Performance-core base frequency: 2.2
• Efficient-core base frequency: 1.6
• Processor cache: 36
• Processor cache type: Smart Cache
• Maximum turbo power: 157
• Processor base power: 55
• Display diagonal: 15.1
• Display resolution: 2560 x 1600
• Panel type: OLED
• HD type: WQXGA
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 165
• Contrast ratio (typical): 100000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 600/Dolby Vision
• Colour name: Eclipse Black
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Acrylonitrile butadiene styrene (ABS),Aluminium,Polycarbonate (PC)
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 4800
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Audio chip: Realtek ALC3287
• Audio system: Nahimic Audio
• Number of built-in speakers: 2
• Speakers manufacturer: Harman Kardon
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 5
• Privacy camera: Yes
• Privacy type: Webcam kill switch
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel HM770
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 24-zone RGB
• Keyboard language: English
• Copilot key: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 80
• Battery life (max): 4.2
• Continuous video playback time: 9
• Fast charging: Yes
• AC adapter power: 245
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 100
• USB Type-C required charging power (min): 65
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/Power on/Supervisor
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ErP Lot 6/26 TÜV Rheinland Flicker Free TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution)
• Width: 344.9
• Depth: 255.35
• Height (front): 19.95
• Height (rear): 21.54
• Weight: 1900
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01346
• Unit Calculated Weight: 5
