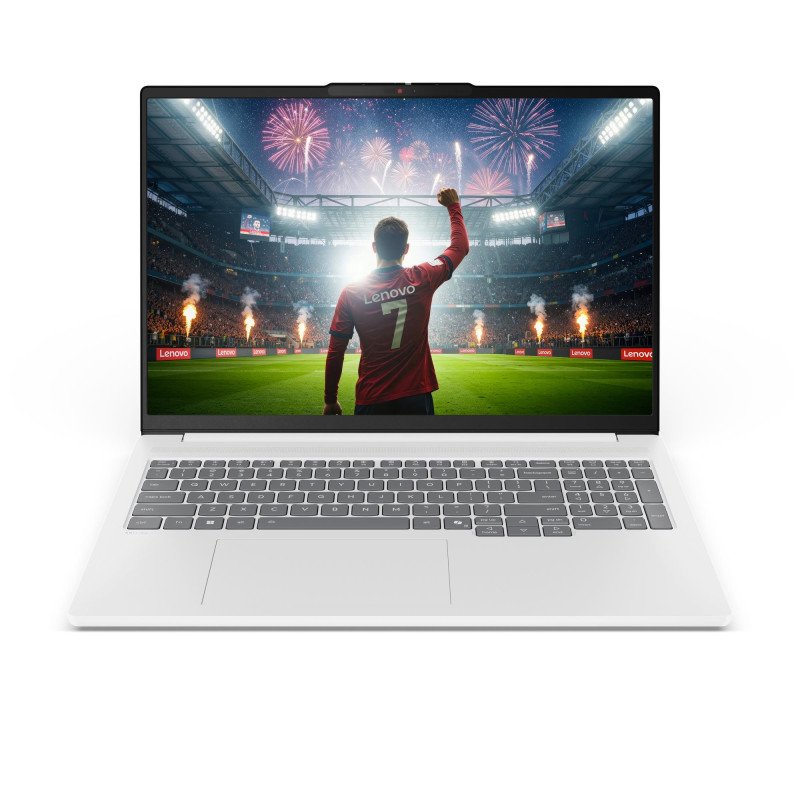

IdeaPad Pro 5 16IPH11 Copilot+ PC

Technical Specifications

• Summary: Lenovo IdeaPad Pro 5 16IPH11 Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra X9, Processor model: 388H. Display diagonal: 40.6 cm (16"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc B390, Discrete graphics card model: NVIDIA GeForce RTX 5050. Product colour: White. Weight: 1.7 kg
• Vendor Homepage: https://www.lenovo.com/
• Name: NB IP5P-16IAH10 CU9-388H 16"/32GB/1TB 83SK0016RM LENOVO
• Category Code: NB
• NB Family name: IdeaPad
• Model name: IdeaPad Pro 5 16IPH11 Copilot+ PC
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra X9
• Processor generation: Intel Core Ultra (Series 3)
• Processor model: 388H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.1
• Performance cores: 4
• Efficient cores: 8
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 5.1
• Efficient-core Max Turbo Frequency: 3.8
• Low Power Efficient-core Max Turbo Frequency: 3.7
• Performance-core base frequency: 2.1
• Efficient-core base frequency: 1.6
• Low Power Efficient-core Base Frequency: 1600
• Processor cache: 18
• Processor cache type: Smart Cache
• Processor socket: FCBGA2540
• Maximum turbo power: 80
• Processor base power: 25
• Display diagonal: 16
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 2.8K
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Maximum display brightness (HDR): 1100
• Standard Dynamic Range (SDR) brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000
• Colour name: Glacier White
• Product type: Laptop
• Product colour: White
• Form factor: Clamshell
• Display back cover material: Aluminium
• Housing material: Aluminium
• Copilot+ PC: Yes
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: ONNX RT/OpenVINO/WebNN/Windows ML
• NPU performance up to: 50
• GPU performance up to: 122
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5050
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc B390
• Ray tracing acceleration: Yes
• Audio system: Dolby Atmos
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard language: English
• Copilot key: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 99.9
• Battery life (max): 23.8
• Continuous video playback time (max): 34.2
• Fast charging: Yes
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 100
• USB Type-C required charging power (min): 65
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: HDD/Power on/User
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ErP Lot 6/26 MIL-STD-810H military test passed (21 test items)
• Sustainability certificates: ENERGY STAR/EPEAT Gold
• Width: 356
• Depth: 250
• Height: 15.85
• Weight: 1700
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.012152
• Unit Calculated Weight: 4
