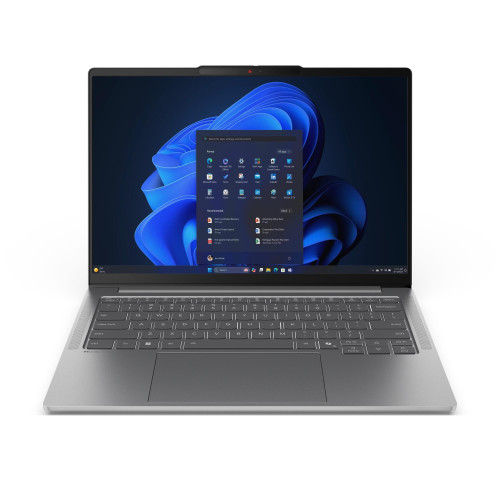

IdeaPad Pro 5 14IAH10

Technical Specifications

• Summary: Lenovo IdeaPad Pro 5 14IAH10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 35.6 cm (14"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels. Internal memory: 24 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Pro. Product colour: Grey. Weight: 1.39 kg
• Vendor Homepage: https://www.lenovo.com/
• Name: NB IP5P-14IAH10 CU7-255H 14"/24GB/1TB 11P 83JK002HRM LENOVO
• Category Code: NB
• NB Family name: IdeaPad
• Model name: Pro 5 14IAH10
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 255H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.1
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.1
• Efficient-core Max Turbo Frequency: 4.4
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2
• Efficient-core base frequency: 1.5
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 24
• Maximum turbo power: 115
• Processor base power: 28
• Display diagonal: 14
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 2.8K
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 500
• Maximum display brightness (HDR): 1100
• Standard Dynamic Range (SDR) brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000
• Colour name: Luna Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Aluminium
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/Windows ML
• Total processor performance up to: 96
• NPU performance up to: 13
• GPU performance up to: 74
• Internal memory: 24
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8533
• Memory form factor: On-board
• Maximum internal memory: 24
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T
• Audio system: Dolby Atmos
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard language: English
• Copilot key: Yes
• Operating system language: English/ROM
• Operating system installed: Windows 11 Pro
• Bundled software: Office Trial
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 84
• Continuous video playback time: 23.8
• Fast charging: Yes
• AC adapter power: 100
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 100
• USB Type-C required charging power (min): 65
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Certification: ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant MIL-STD-810H military test passed (21 test items) Intel Evo Platform Eyesafe Certified 2.0 TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light (Hardware Solution)
• Width: 312
• Depth: 221
• Height: 15.5
• Weight: 1390
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01455
• Unit Calculated Weight: 4
