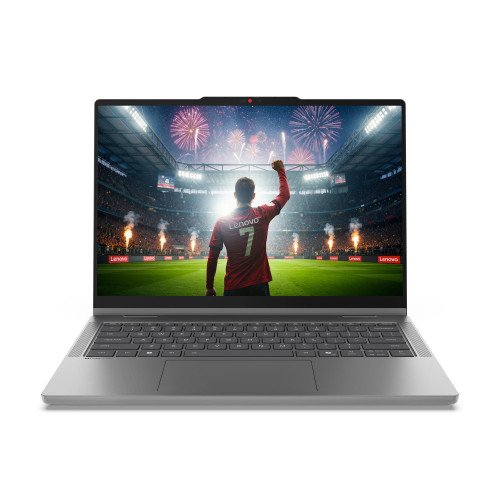

IdeaPad 5 2-in-1 14IPH11 Copilot+ PC

Technical Specifications

• Summary: Lenovo IdeaPad 5 2-in-1 14IPH11 Copilot+ PC. Product type: Hybrid (2-in-1), Form factor: Convertible (Folder). Processor family: Intel Core Ultra 5, Processor model: 322. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Product colour: Grey. Weight: 1.54 kg
• Vendor Homepage: https://www.lenovo.com/
• Name: NB IP5-14IPH11 CU5-322 14"T/16/512GB 83UG004QRM LENOVO
• Category Code: NB
• NB Family name: IdeaPad
• Model name: IdeaPad 5 2-in-1 14IPH11 Copilot+ PC
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 5
• Processor generation: Intel Core Ultra (Series 3)
• Processor model: 322
• Processor cores: 6
• Processor threads: 6
• Processor boost frequency: 4.4
• Performance cores: 2
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 4.4
• Low Power Efficient-core Max Turbo Frequency: 3.3
• Performance-core base frequency: 2.5
• Low Power Efficient-core Base Frequency: 1900
• Processor cache: 12
• Processor cache type: Smart Cache
• Processor socket: FCBGA2540
• Maximum turbo power: 55
• Processor base power: 25
• Display diagonal: 14
• Display resolution: 1920 x 1200
• Panel type: IPS
• HD type: WUXGA
• Touchscreen: Yes
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 400
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Contrast ratio (typical): 800:1
• Colour name: Luna Grey
• Product type: Hybrid (2-in-1)
• Product colour: Grey
• Form factor: Convertible (Folder)
• Display back cover material: Aluminium
• Housing material: Aluminium,Polycarbonate (PC),ABS synthetics,Glass fibre
• Copilot+ PC: Yes
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: ONNX RT/OpenVINO/WebNN/Windows ML
• NPU performance up to: 46
• GPU performance up to: 18
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 8
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Ray tracing acceleration: Yes
• Audio chip: Realtek ALC3287
• Audio system: Dolby Audio
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 1.4b
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel SoC
• Accelerometer: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard language: English
• Copilot key: Yes
• Microsoft Copilot: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 60
• Battery life (max): 12.8
• Continuous video playback time (max): 20
• Fast charging: Yes
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 65
• USB Type-C required charging power (min): 45
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ErP Lot 6/26 MIL-STD-810H TÜV Rheinland Low Blue Light (Hardware Solution)
• Sustainability certificates: ENERGY STAR/EPEAT Gold
• Width: 311.6
• Depth: 224.9
• Height: 17.4
• Weight: 1540
• Stylus pen: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.010904
• Unit Calculated Weight: 3
