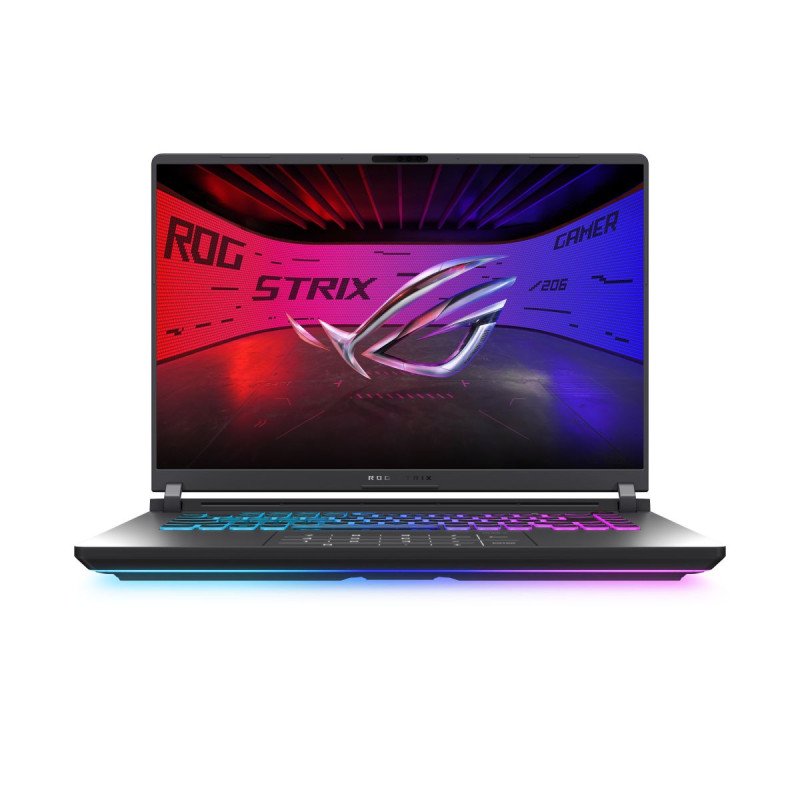

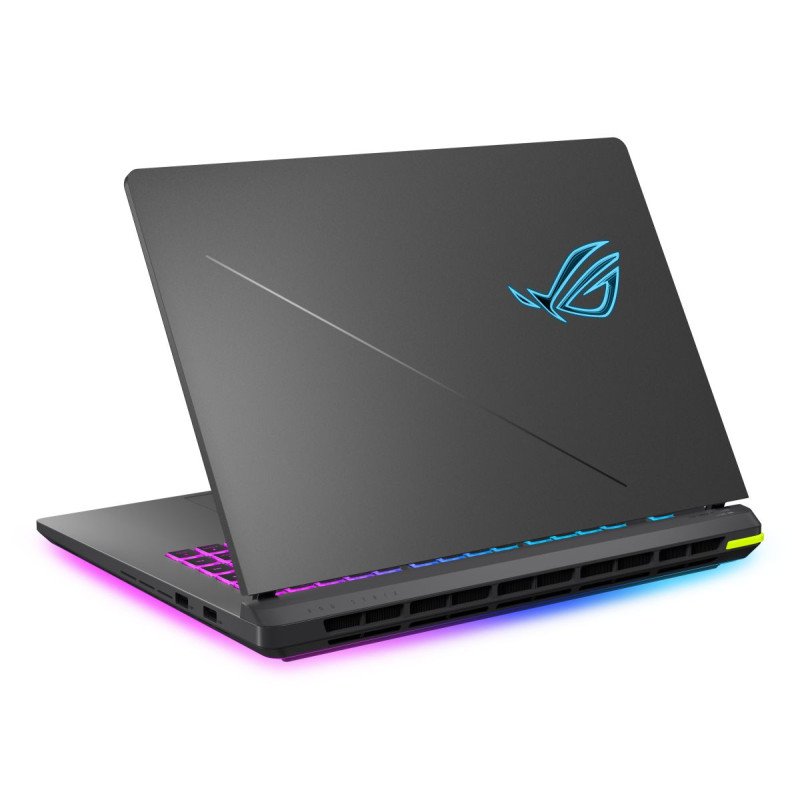

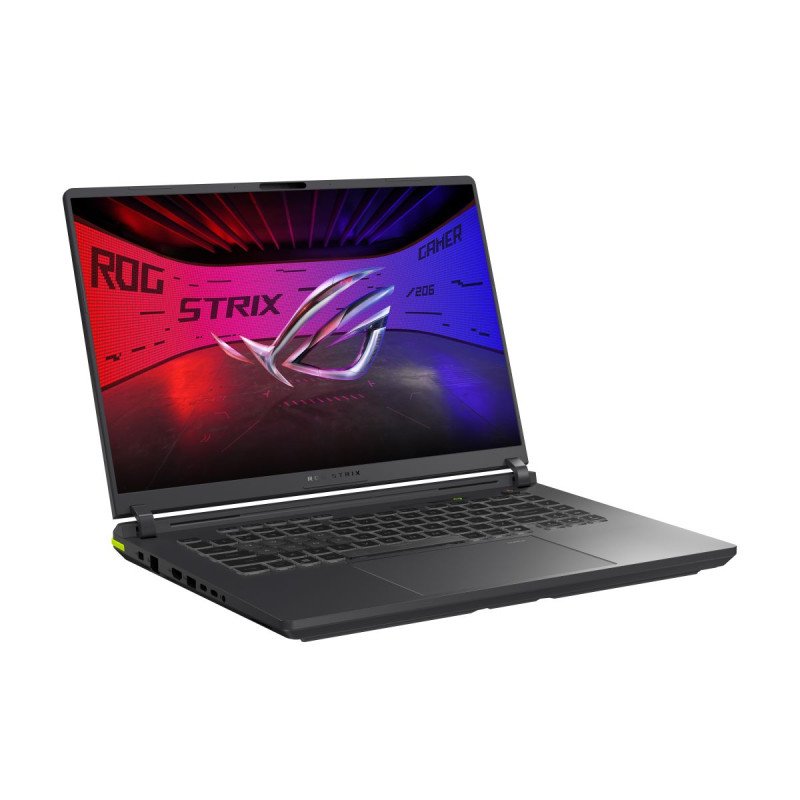

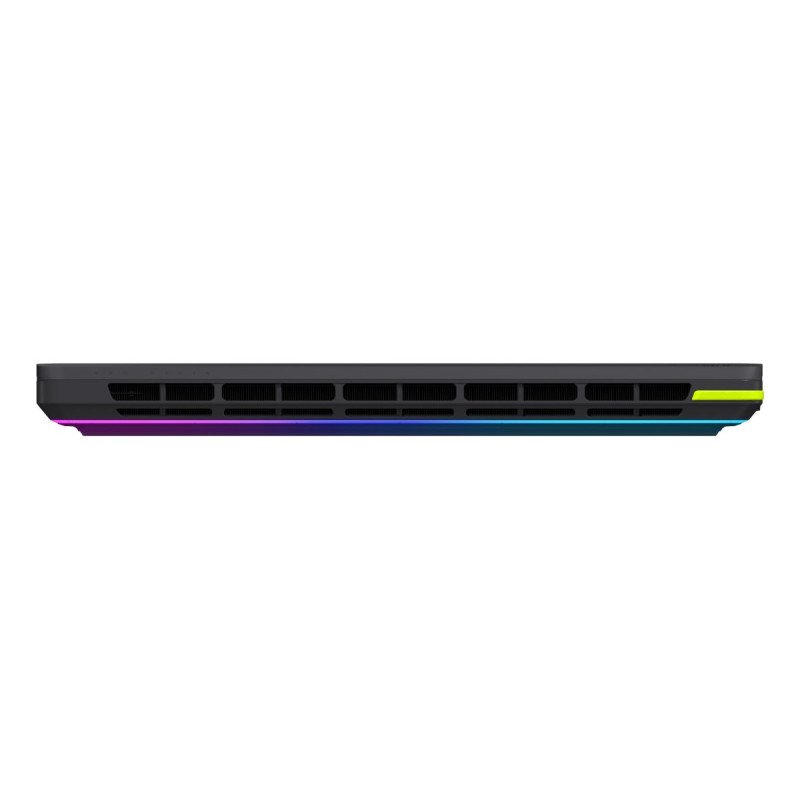

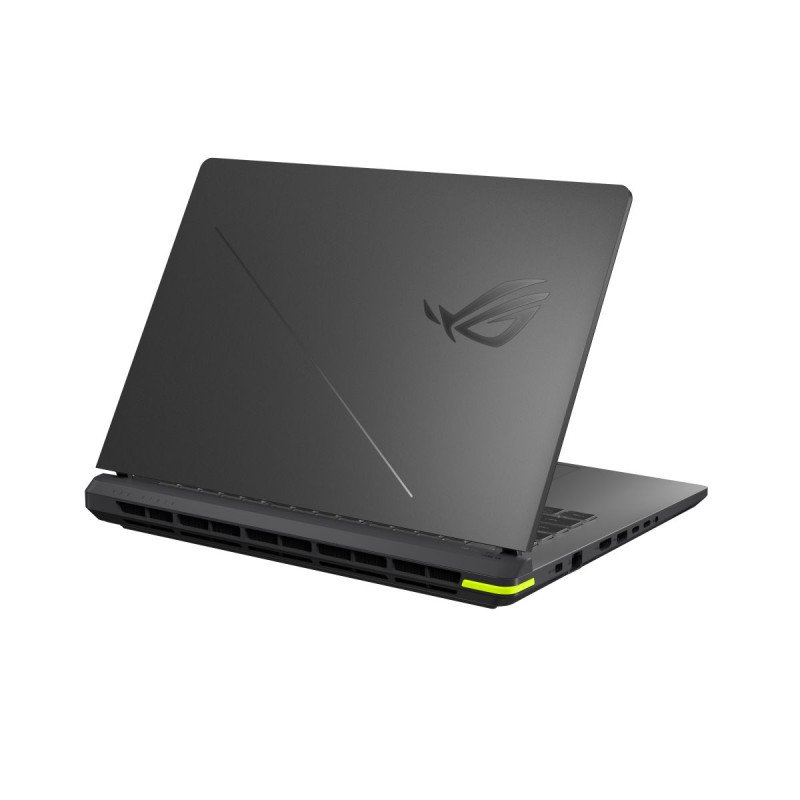

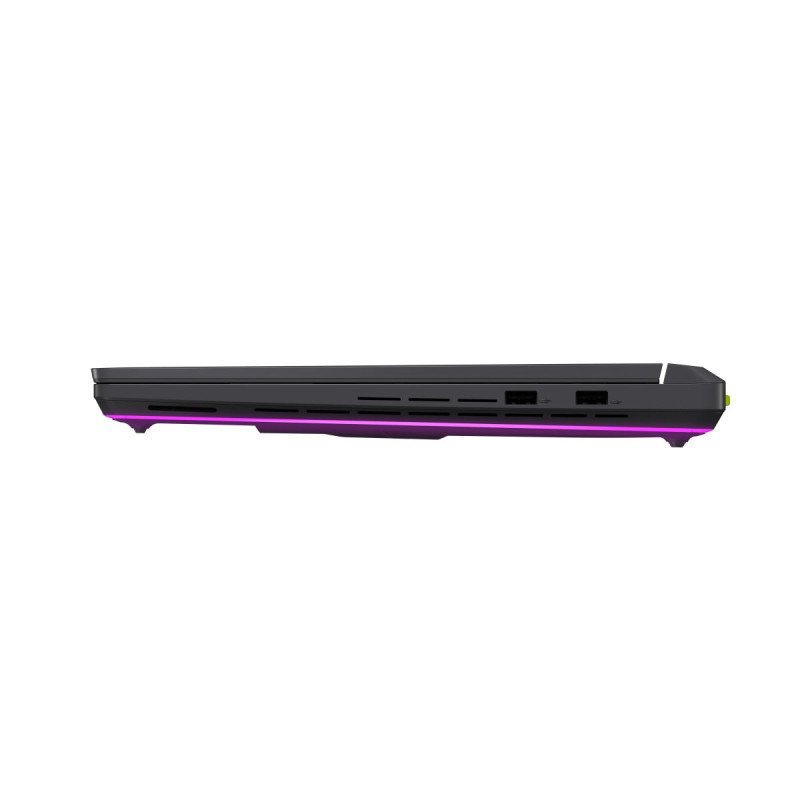

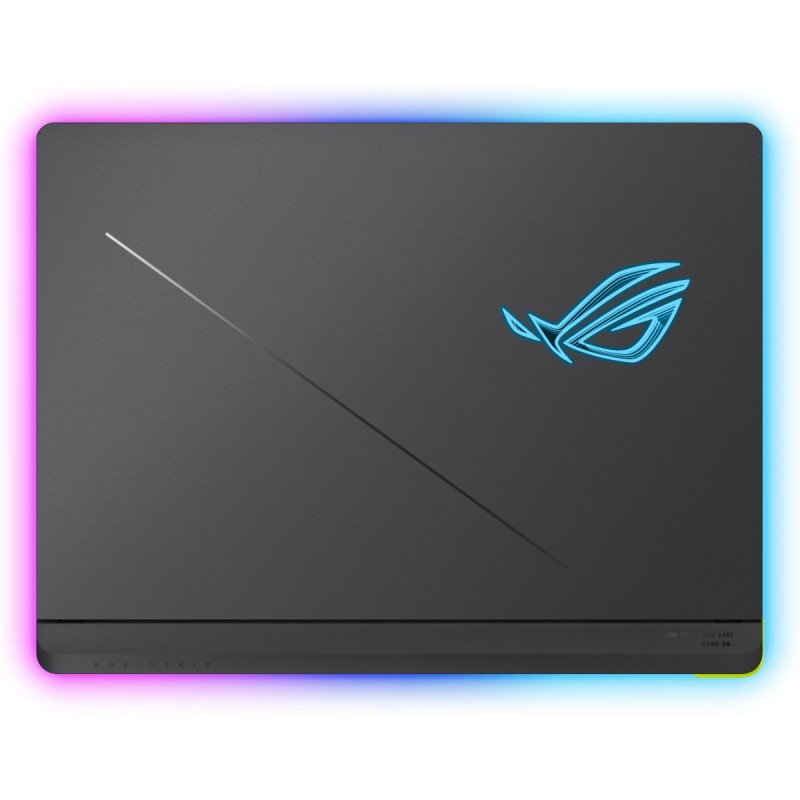

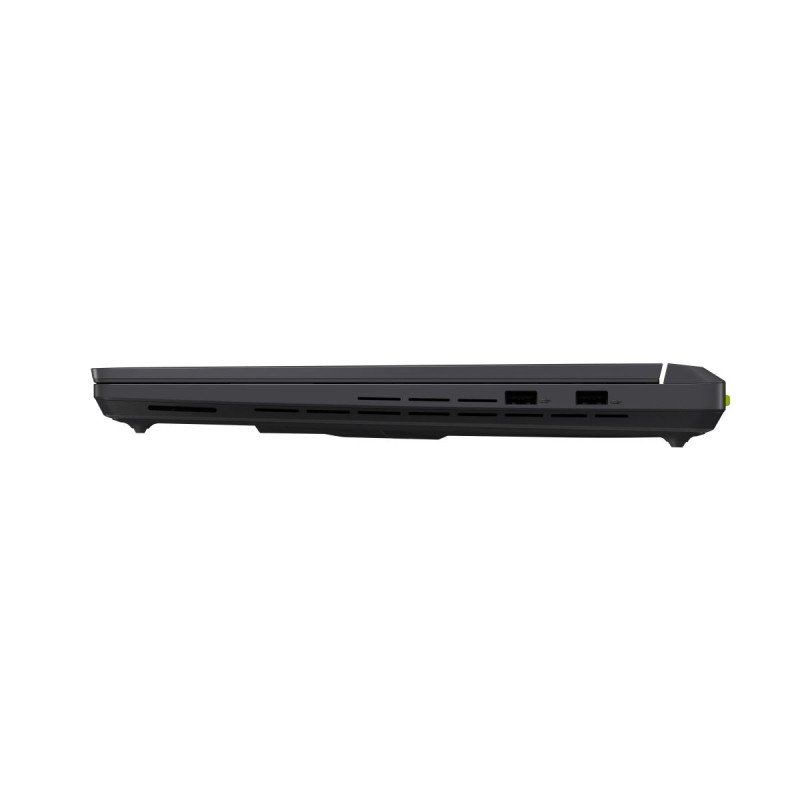

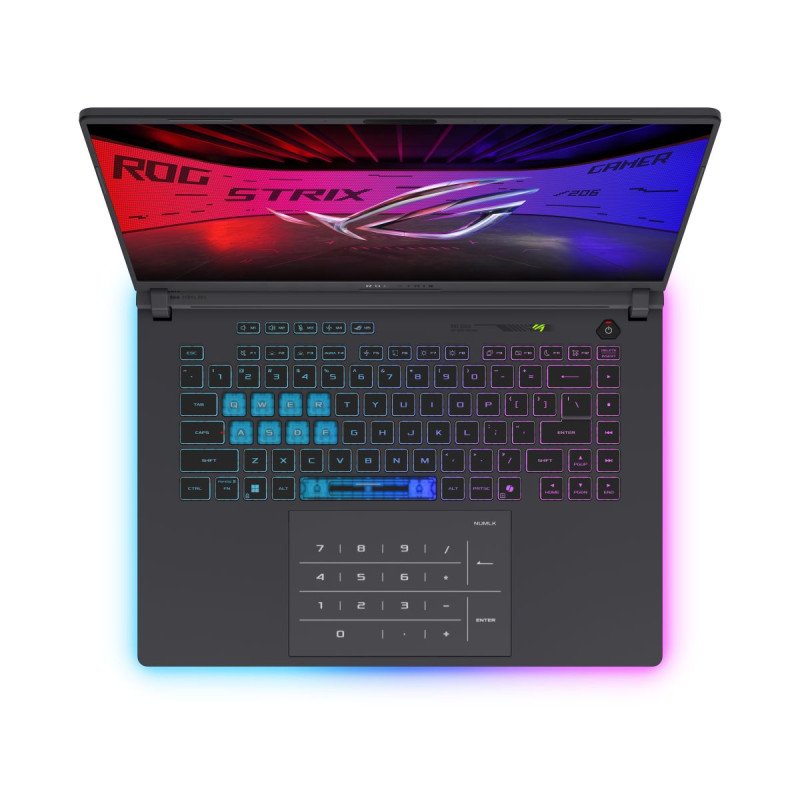

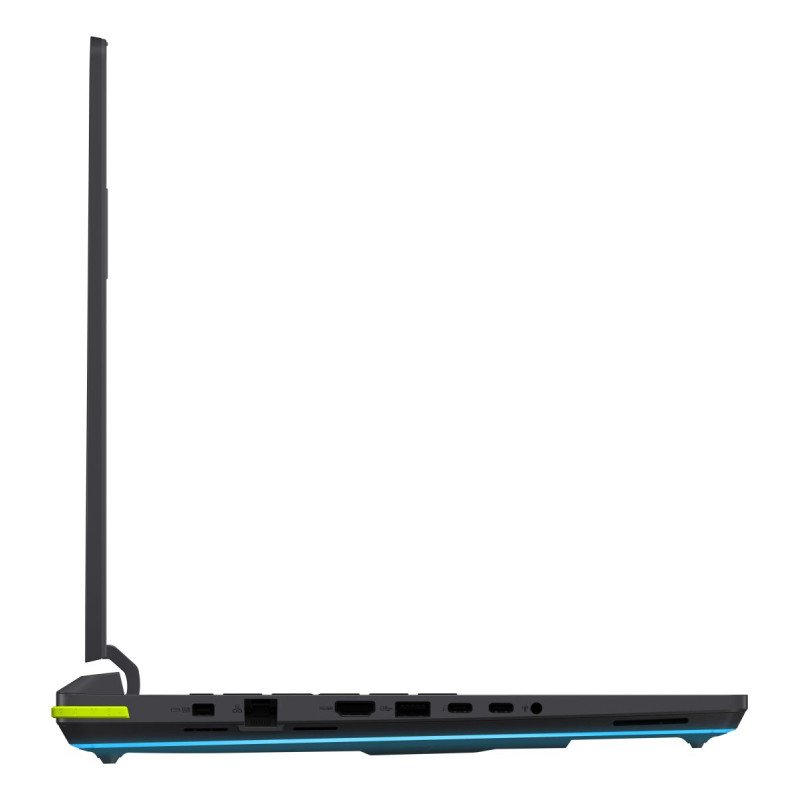

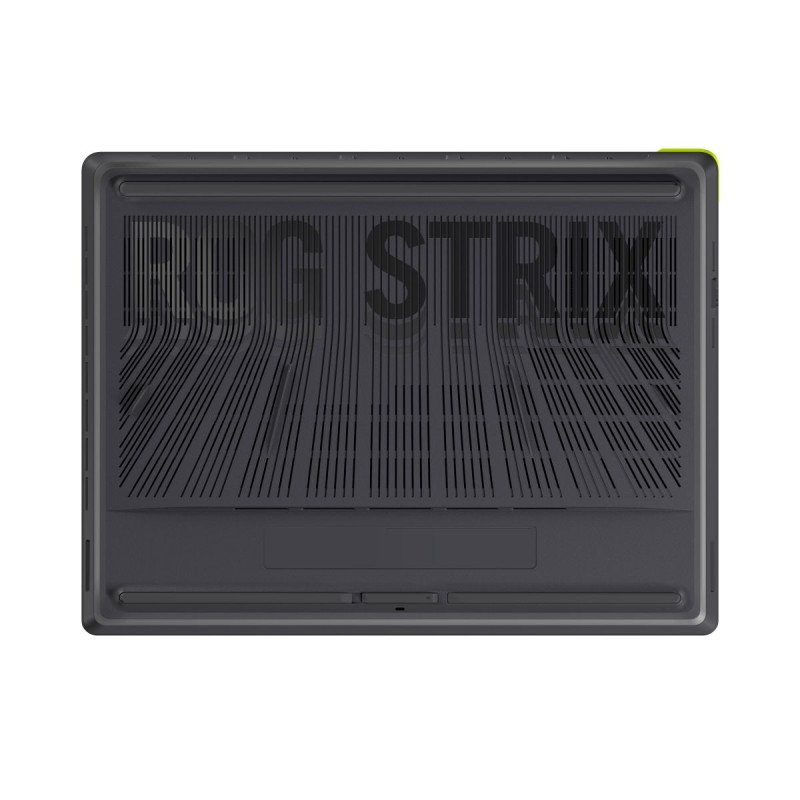

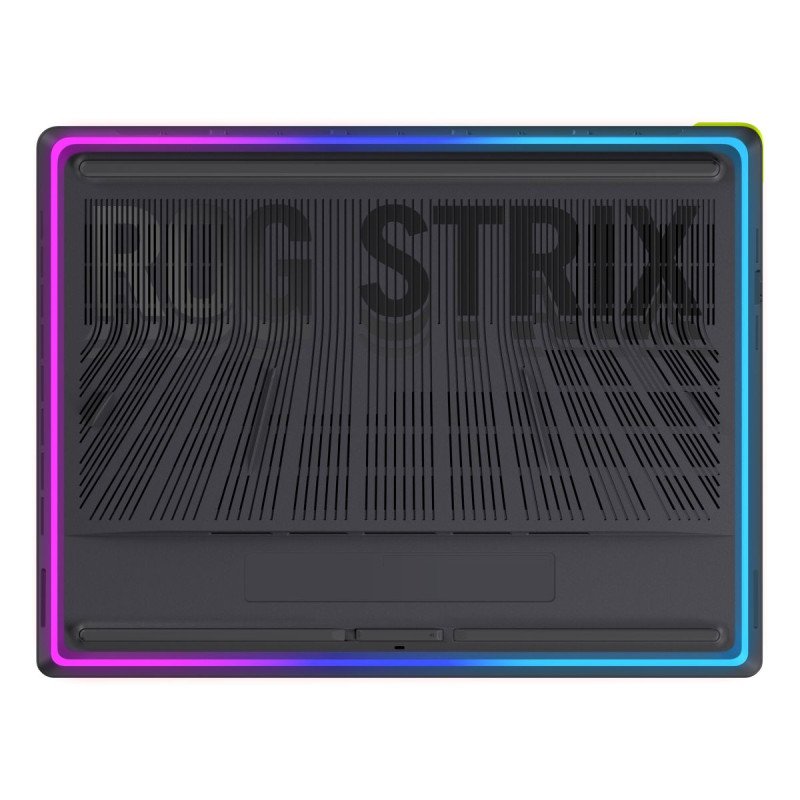

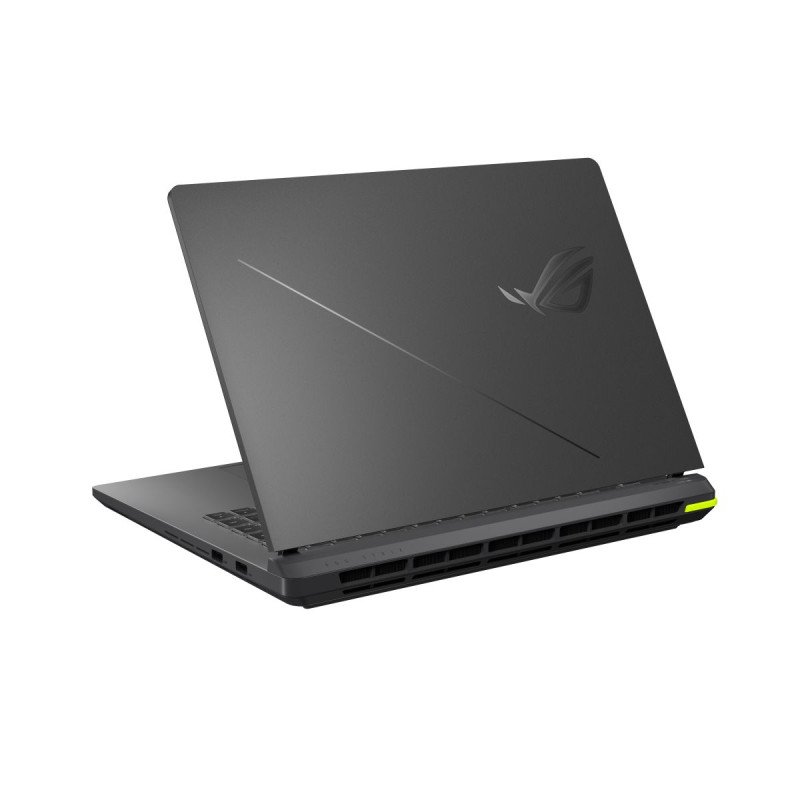

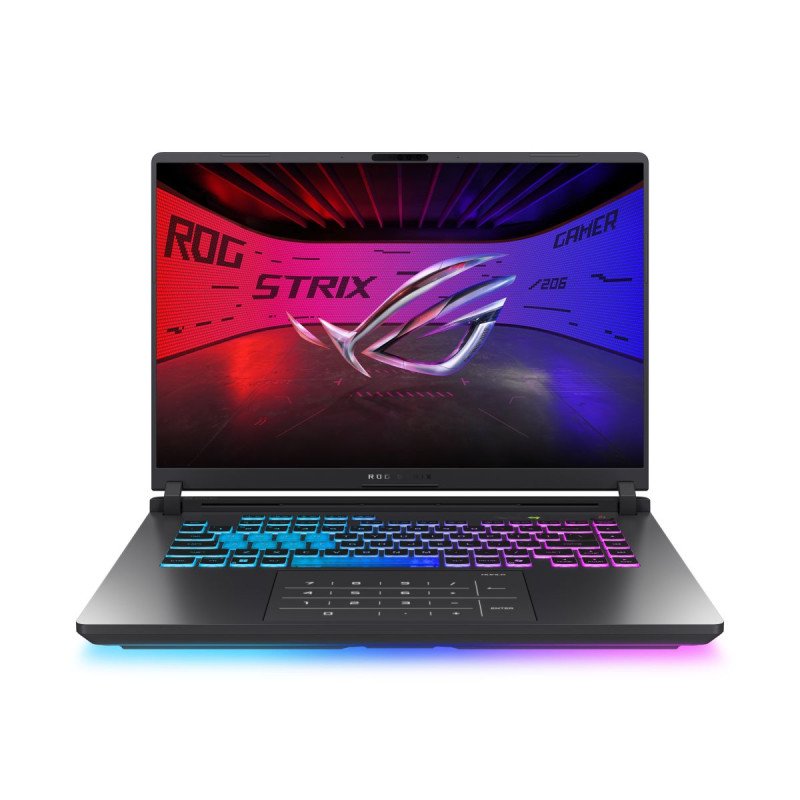

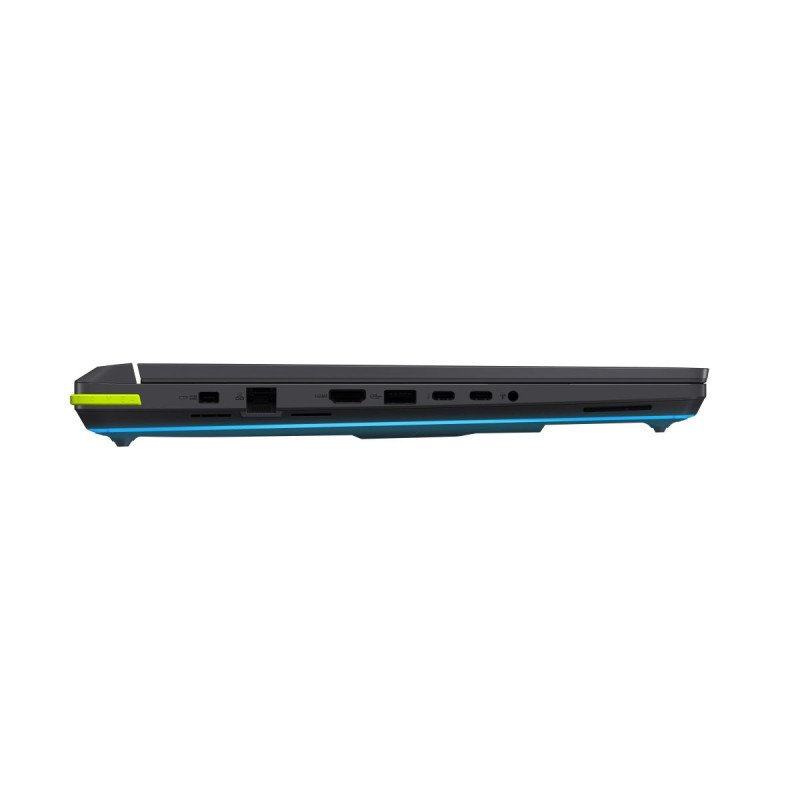

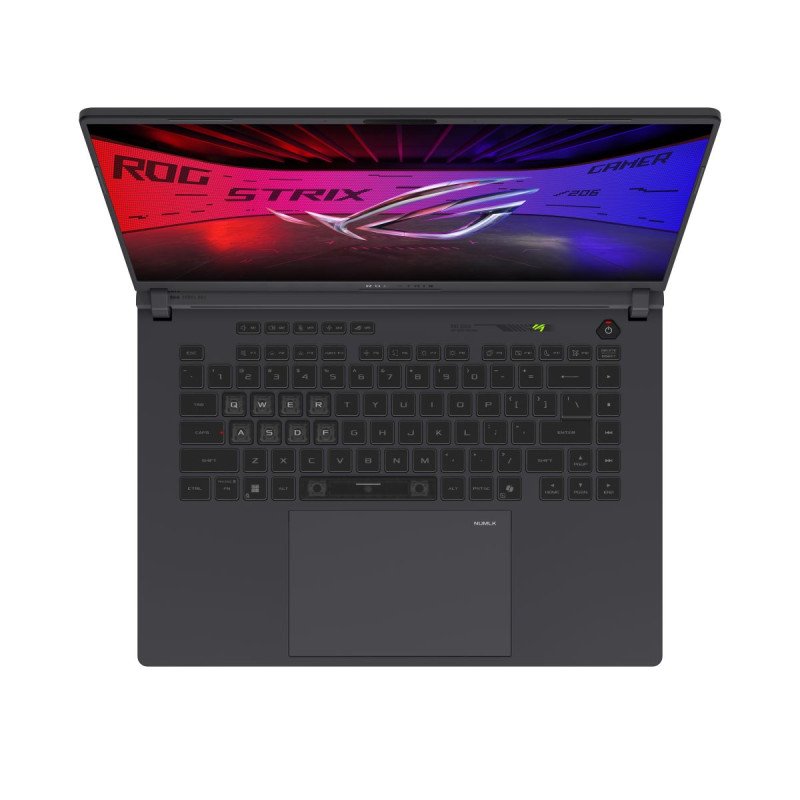

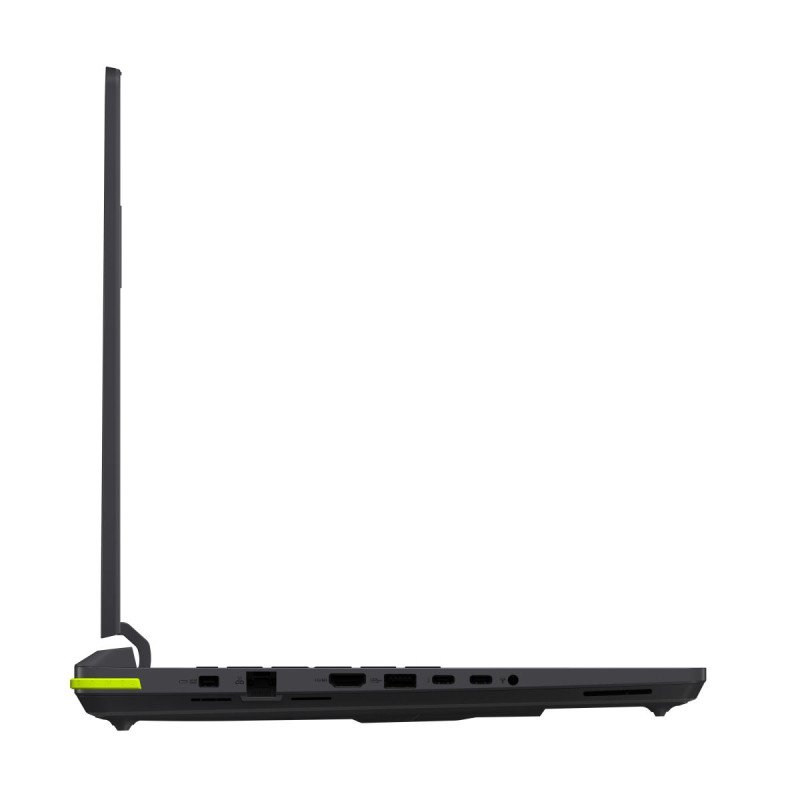

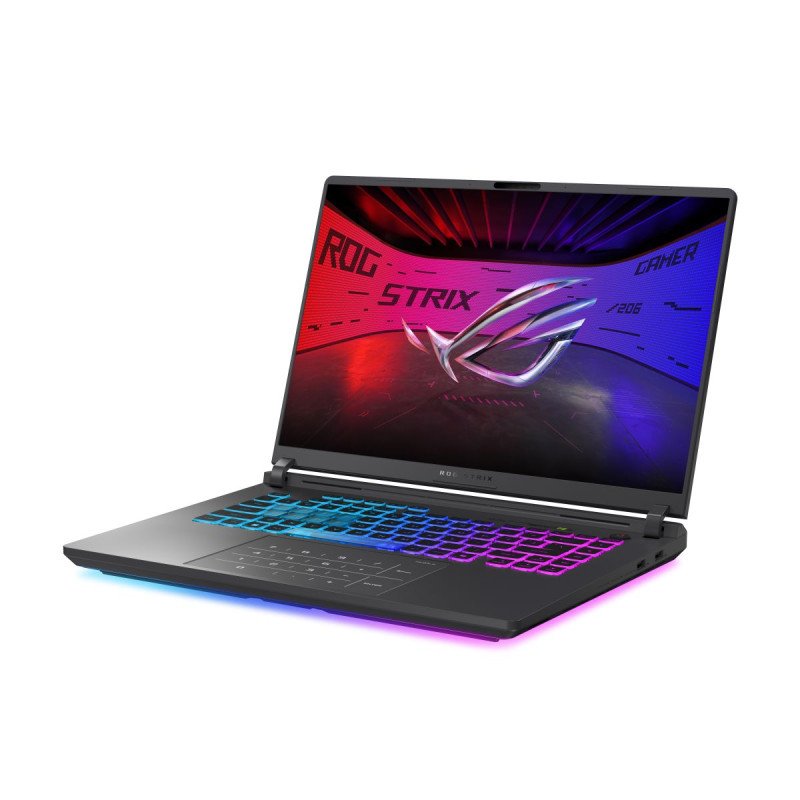

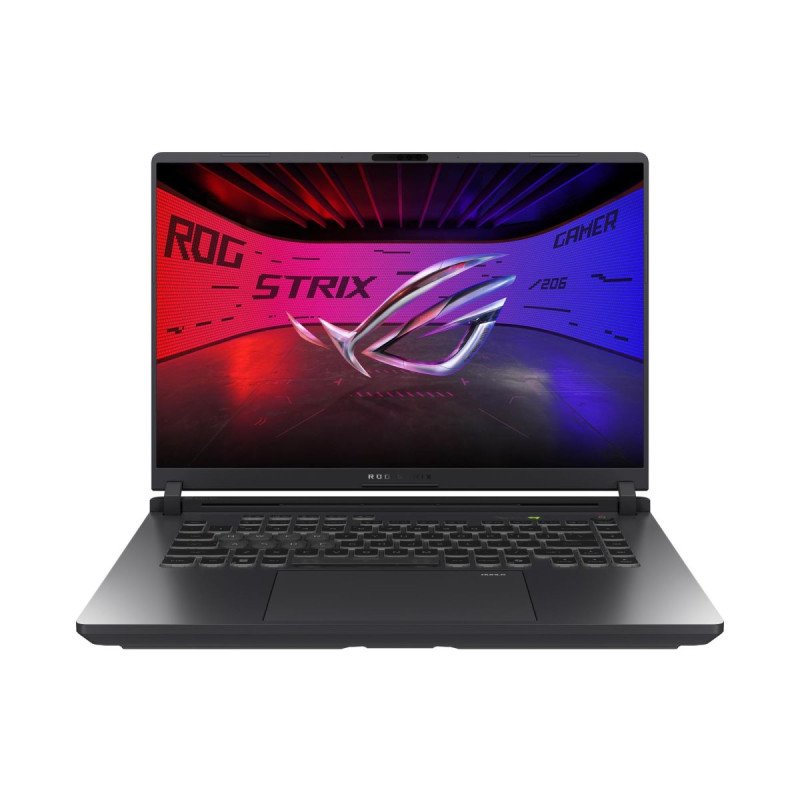

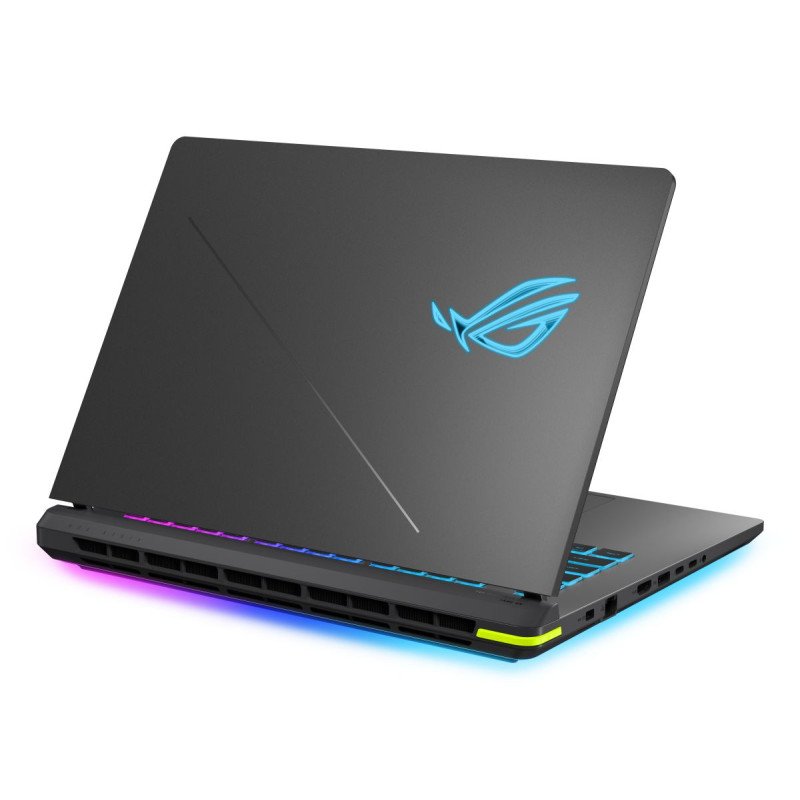

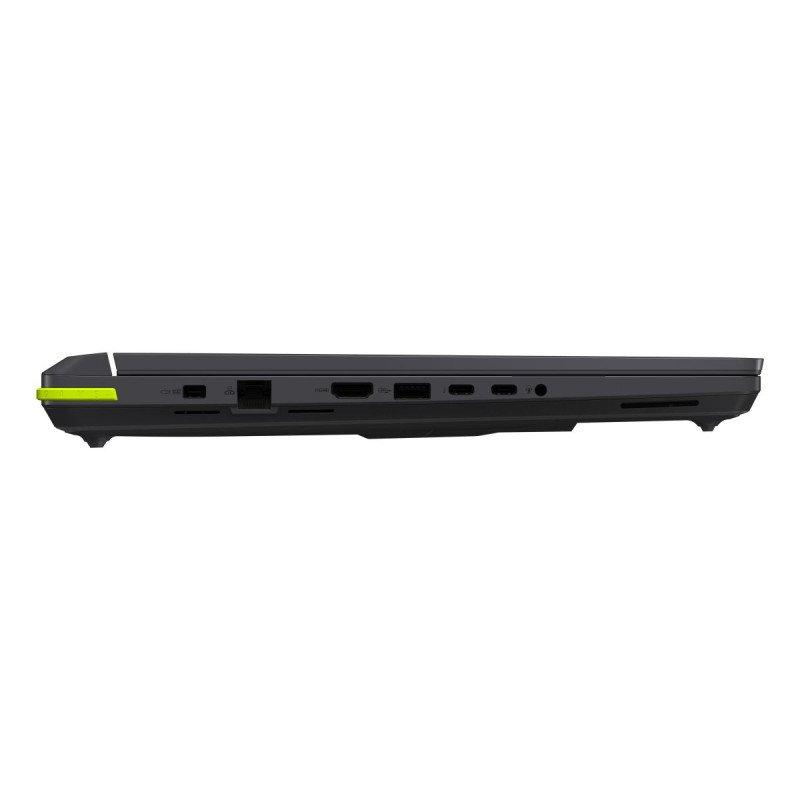

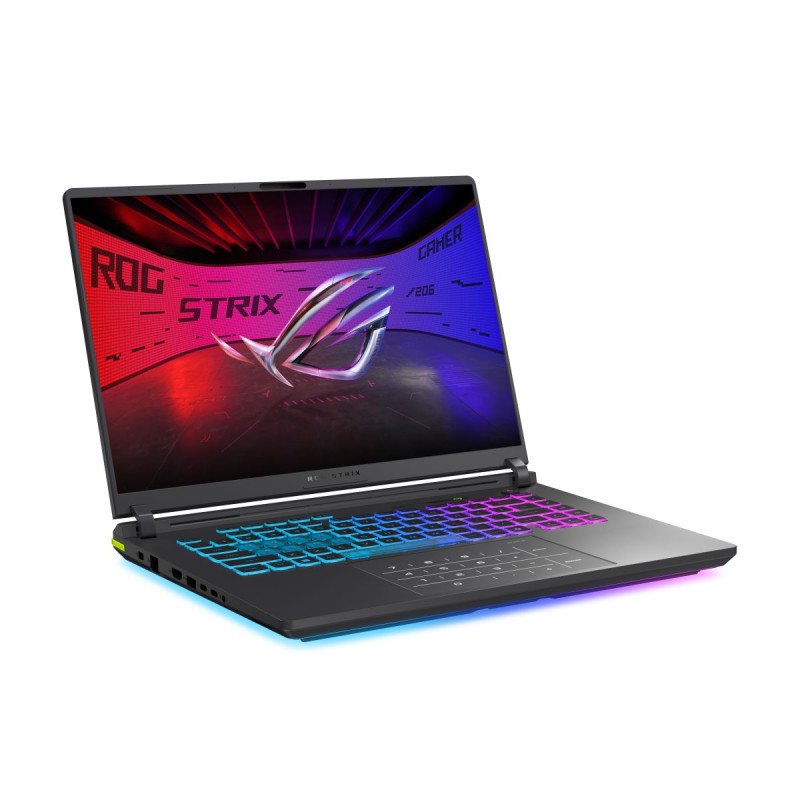

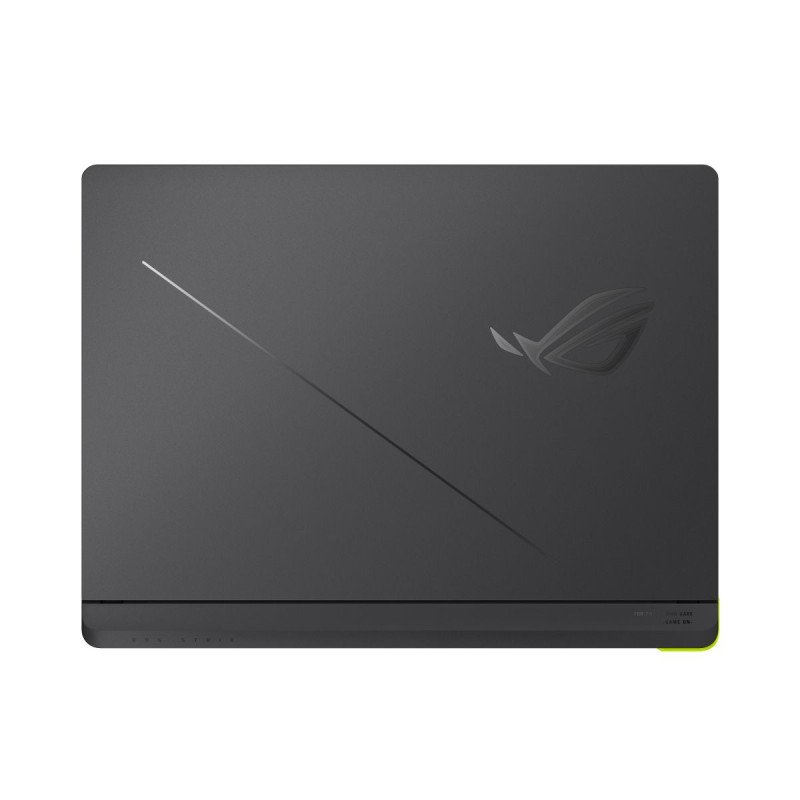

ROG Strix G16 (2025)

Technical Specifications

• Summary: ASUS ROG Strix G16 G615LR-S5076. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070 Ti. Product colour: Green, Grey. Weight: 2.65 kg
• Vendor Homepage: https://rog.asus.com/laptops/rog-strix/rog-strix-g16-2025
• Name: NB G615LR CU7-255HX 16"/32GB/2TB G615LR-S5076 ASUS
• Category Code: NB
• NB Family name: ROG Strix
• Model name: G16 (2025)
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 255HX
• Processor cores: 20
• Processor threads: 20
• Processor boost frequency: 5.2
• Performance cores: 8
• Efficient cores: 12
• Performance-core Max Turbo Frequency: 5.2
• Efficient-core Max Turbo Frequency: 4.5
• Performance-core base frequency: 2.4
• Efficient-core base frequency: 1.8
• Processor cache: 30
• Maximum turbo power: 160
• Processor base power: 55
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: IPS-Level
• HD type: WQXGA
• Touchscreen: No
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Volt Green
• Product type: Laptop
• Product colour: Green,Grey
• Form factor: Clamshell
• Housing material: Plastic
• Market positioning: Gaming
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 33
• NPU performance up to: 13
• GPU performance up to: 8
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Memory channels: Dual-channel
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• Number of SSDs installed: 1
• SSD capacity: 2000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070 Ti
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 12
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel® Graphics
• On-board graphics card model: Intel® Graphics
• NVIDIA G-SYNC: Yes
• Audio system: Dolby Atmos
• Number of built-in speakers: 2
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000/2500
• Bluetooth: Yes
• Bluetooth version: 5.4
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 5 ports quantity: 2
• Intel® Thunderbolt 5: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB Type-C DisplayPort Alternate Mode: Yes
• Repairability index: 9.9
• Pointing device: NumberPad
• Keyboard backlit: Yes
• Numeric keypad: No
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 4-zone RGB
• Copilot key: Yes
• Operating system installed: No
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 90
• AC adapter power: 280
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 14
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS/User
• Width: 354
• Depth: 268
• Height (front): 22.8
• Height (rear): 30.8
• Weight: 2650
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01518
• Unit Calculated Weight: 5
