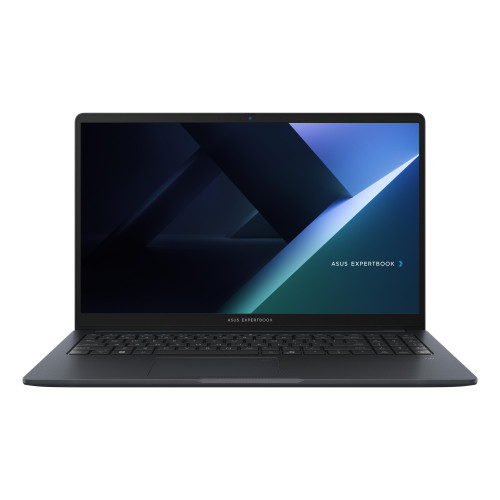

ExpertBook BM1503CDA

Technical Specifications

• Description:

  Elevate everyday performance to the next level

• Vendor Homepage: https://www.asus.com/laptops/for-work/expertbook/asus-expertbook-bm1-bm1503/
• Name: NB BM1503CDA R7-7735U 15"/16GB/1TB BM1503CDA-S70837 ASUS
• Category Code: NB
• NB Family name: ExpertBook
• Model name: BM1503CDA
• Model: BM1503CDA-S70837
• Processor manufacturer: AMD
• Processor family: AMD Ryzenâ„¢ 7
• Processor generation: AMD Ryzen 7000 Series
• Processor model: 7735U
• Processor cores: 8
• Processor threads: 16
• Processor boost frequency: 4.75
• Processor frequency: 2.7
• Processor cache type: L2 & L3
• L3 cache: 16
• L2 cache: 4
• Display diagonal: 15.6
• Display resolution: 1920 x 1080
• HD type: Full HD
• Touchscreen: No
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 300
• Colour gamut: 45
• RGB colour space: NTSC
• Colour name: Gentle Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Plastic
• Market positioning: Work
• Introduction year: 2024
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x SO-DIMM
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: No
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card model: AMD Radeon 680M
• Built-in speaker(s): Yes
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: HD
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 1.4
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Keyboard language: English
• Operating system installed: No
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 3
• Width: 359.5
• Depth: 232.2
• Height: 19.9
• Weight: 1780
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.012
• Unit Calculated Weight: 2.6
