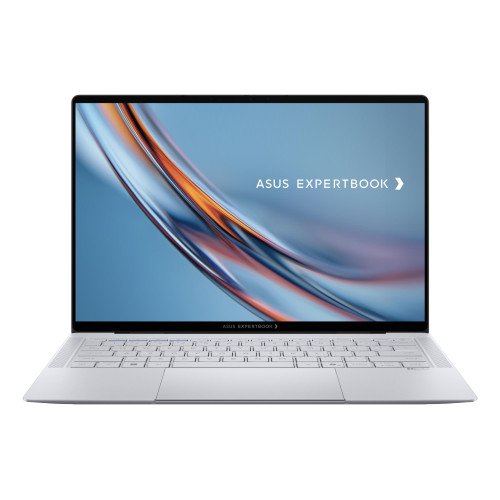

ExpertBook B9406CAA-TH0728X

Technical Specifications

• Summary: ASUS ExpertBook Ultra B9406CAA-TH0728X. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra X7, Processor model: 358H. Display diagonal: 35.6 cm (14"), HD type: WQXGA+, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc B390. Operating system installed: Windows 11 Pro. Product colour: Grey
• Vendor Homepage: https://www.asus.com/laptops/for-work/expertbook/asus-expertbook-ultra
• Name: NB B9406CAA CUX7-358H 14"/64GB/1TB B9406CAA-TH0728X ASUS
• Category Code: NB
• NB Family name: ExpertBook
• Model name: B9406CAA-TH0728X
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra X7
• Processor generation: Intel Core Ultra (Series 3)
• Processor model: 358H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 4.8
• Performance cores: 4
• Efficient cores: 8
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 4.8
• Efficient-core Max Turbo Frequency: 3.5
• Low Power Efficient-core Max Turbo Frequency: 3.3
• Performance-core base frequency: 1.9
• Efficient-core base frequency: 1.5
• Low Power Efficient-core Base Frequency: 1500
• Processor cache: 18
• Processor cache type: Smart Cache
• Processor socket: FCBGA2540
• Maximum turbo power: 80
• Processor base power: 25
• Display diagonal: 14
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: WQXGA+
• Touchscreen: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display glass type: Gorilla Glass
• Gorilla Glass version: Gorilla Glass Victus
• Display brightness: 600
• Maximum display brightness (HDR): 1400
• Colour gamut: 100
• RGB colour space: DCI-P3
• Display response rise/fall: 1
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000
• Colour name: Morn Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Display back cover material: Aluminum-magnesium alloy
• Housing material: Magnesium,Aluminium
• Market positioning: Work
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: ONNX RT/OpenVINO/WebNN/Windows ML
• NPU performance up to: 50
• GPU performance up to: 122
• Internal memory: 64
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Maximum internal memory: 64
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• Self-Encrypting Drive (SED): Yes
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc B390
• Ray tracing acceleration: Yes
• Audio system: Dolby Atmos
• Number of built-in speakers: 6
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 6.0
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Operating system architecture: 64-bit
• Trial software: 1-month trial for new Microsoft 365 customers. Credit card required. McAfee 30 days free trial
• Operating system installed: Windows 11 Pro
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 70
• AC adapter power: 90
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 4.5
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 90
• USB Type-C required charging power (min): 80
• USB Power Delivery (USB PD): Yes
• Fingerprint reader: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR/Forest Stewardship Council (FSC) Mix/TCO
• Width: 310.9
• Depth: 212.8
• Height (front): 10.9
• Height (rear): 16.4
• Weight: 1100
• AC adapter included: Yes
• Bag included: Yes
• Interface adapters included: USB male - Ethernet LAN (RJ-45) female
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0126
• Unit Calculated Weight: 3.5
