B1503CVA-S78928

Technical Specifications

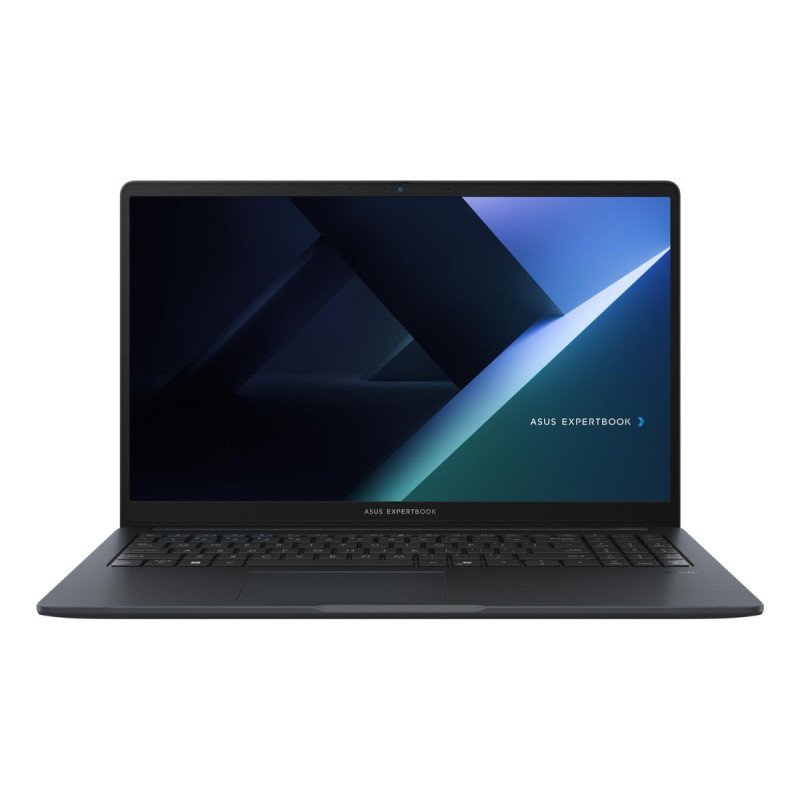

• Summary: ASUS ExpertBook B1 B1503CVA-S78928. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core 7, Processor model: 150U. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics. Product colour: Black, Grey. Weight: 1.64 kg
• Vendor Homepage: https://www.asus.com/laptops/for-work/expertbook/asus-expertbook-b1-b1503/
• Name: NB B1503CVA C7-150U 15"/16GB/1TB B1503CVA-S78928 ASUS
• Category Code: NB
• Model name: B1503CVA-S78928
• Processor manufacturer: Intel
• Processor family: Intel Core 7
• Processor generation: Intel Core (Series 1)
• Processor model: 150U
• Processor cores: 10
• Processor threads: 12
• Processor boost frequency: 5.4
• Performance cores: 2
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4
• Performance-core base frequency: 1.8
• Efficient-core base frequency: 1.2
• Processor cache: 12
• Processor cache type: Smart Cache
• Processor socket: BGA 1744
• Maximum turbo power: 55
• Processor base power: 15
• Display diagonal: 15.6
• Display resolution: 1920 x 1080
• HD type: Full HD
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Colour name: Gentle Grey
• Product type: Laptop
• Product colour: Black,Grey
• Form factor: Clamshell
• Market positioning: Work
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory form factor: SO-DIMM
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio system: Dirac
• Built-in microphone: Yes
• Front camera: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 1.4
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Numeric keypad: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 3
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 3.25
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD/User
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR/EPEAT Climate +/Forest Stewardship Council (FSC) Recycled/TCO
• Width: 359.5
• Depth: 232.2
• Height: 19.9
• Weight: 1640
• Additional model naming: B1503CVA-S78928
• Unit Calculated Volume: 0.01224
• Unit Calculated Weight: 5
