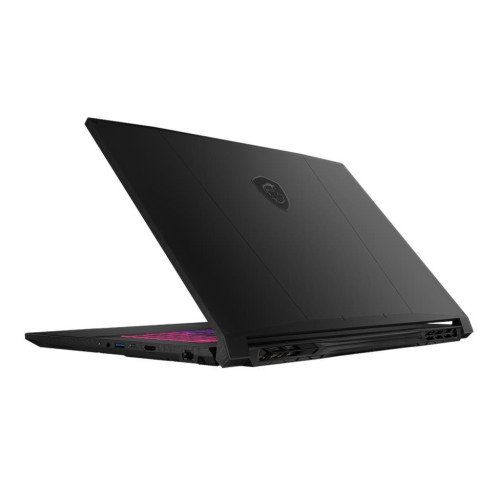

Katana 17 HX

Technical Specifications

• Summary: MSI Katana 17 HX B14WGK-087XRO. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core i7, Processor model: i7-14650HX. Display diagonal: 43.9 cm (17.3"), HD type: Quad HD, Display resolution: 2560 x 1440 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070. Operating system installed: FreeDOS. Product colour: Black
• Vendor Homepage: https://www.msi.com/Laptop/Katana-17-HX-B14WX
• Name: NB KATANA 17 CI7-14650HX 17"/32GB/1TB 9S7-17L791-087 MSI
• Category Code: NB
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: Intel Core i7 (14th gen)
• Processor model: i7-14650HX
• Processor cores: 16
• Processor threads: 24
• Processor boost frequency: 5.2
• Performance cores: 8
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 5.2
• Efficient-core Max Turbo Frequency: 3.7
• Performance-core base frequency: 2.2
• Efficient-core base frequency: 1.6
• Processor cache: 30
• Processor cache type: Smart Cache
• Maximum turbo power: 157
• Processor base power: 55
• Display diagonal: 17.3
• Display resolution: 2560 x 1440
• Panel type: IPS-Level
• HD type: Quad HD
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Original brand name: MSI
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 96
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Audio system: Nahimic 3
• Number of built-in speakers: 2
• Speaker power: 2
• Front camera: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720
• Video capturing speed: 30
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB Type-C DisplayPort Alternate Mode: Yes
• Motherboard chipset: Intel HM770
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 4-zone RGB
• Copilot key: Yes
• Operating system installed: FreeDOS
• Number of battery cells: 4
• Battery capacity: 4850
• Battery capacity: 75
• AC adapter power: 240
• AC adapter input voltage: 90 - 264
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Width: 398
• Depth: 275.6
• Height: 27.8
• Weight: 2700
• AC adapter included: Yes
• Warranty period: 2
• Units per Pallet: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0155925
• Unit Calculated Weight: 5
