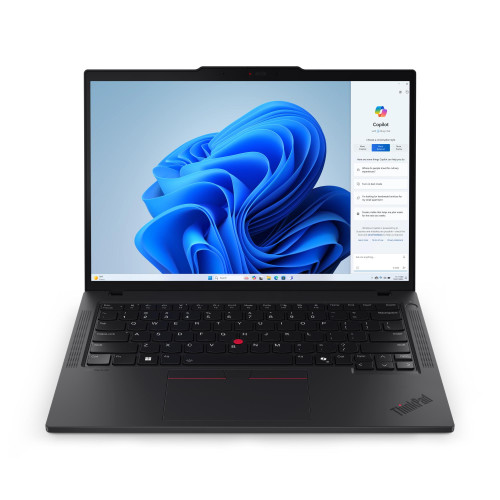

ThinkPad P14s Gen 5 (AMD)

Technical Specifications

• Description:
  • AMD Ryzen 7 PRO 8840HS (8C/16T, 3.3/5.1GHz, 8MB L2/16MB L3)
  • 14" WUXGA (1920x1200) IPS 400nits 45% NTSC
  • 2x 16GB SODIMM DDR5-5600 Non-ECC
  • 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
  • AMD Radeon 780M Graphics
  • Windows 11 Pro

• Summary: Lenovo ThinkPad P14s Gen 5 (AMD). Product type: Mobile workstation, Form factor: Clamshell. Processor family: AMD Ryzenâ„¢ 7 PRO, Processor model: 8840HS, Processor frequency: 3.3 GHz. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 780M. Operating system installed: Windows 11 Pro. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/
• Name: NB TP T14S G5 R7P-8840H 14"/32GB/1TB 11P 21ME0006RI LENOVO
• Category Code: NB
• NB Family name: ThinkPad
• Model name: P14s Gen 5 (AMD)
• Model: P14s Gen 5 (AMD)
• Processor manufacturer: AMD
• Processor family: AMD Ryzenâ„¢ 7 PRO
• Processor model: 8840HS
• Processor cores: 8
• Processor threads: 16
• Processor boost frequency: 5.1
• Processor frequency: 3.3
• Processor cache type: L3
• Processor base power: 28
• Display diagonal: 14
• Display resolution: 1920 x 1200
• Panel type: IPS
• HD type: WUXGA
• Touchscreen: No
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 400
• Colour gamut: 45
• RGB colour space: NTSC
• Product type: Mobile workstation
• Product colour: Black
• Form factor: Clamshell
• Neural processor unit (NPU): AMD Ryzen AI
• Total processor performance up to: 38
• NPU performance up to: 16
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 96
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: No
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 780M
• Audio chip: Realtek ALC3287
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• Near Field Communication (NFC): No
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel® Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Sleep-and-Charge: Yes
• Motherboard chipset: AMD SoC
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Numeric keypad: No
• Keyboard language: English
• Operating system language: English/ROM
• Operating system installed: Windows 11 Pro
• Battery capacity: 52.5
• AC adapter power: 65
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Smart card reader: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS
• Width: 315.9
• Depth: 223.7
• Height: 17.7
• Weight: 1310
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009982
• Unit Calculated Weight: 5
