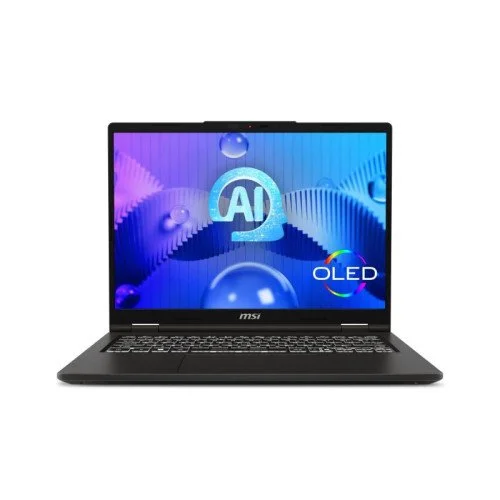

MSI Venture 16 AI

Technical Specifications

• Summary: MSI Venture 16 AI A1MG-038XRO. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 155H. Display diagonal: 35.6 cm (14"), HD type: 2K, Display resolution: 2048 x 1280 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Operating system installed: FreeDOS. Product colour: Grey. Weight: 1.7 kg
• Vendor Homepage: https://www.msi.com/Business-Productivity/Venture-14-AI-A1MX/Specification
• Name: NB VENTURE 16AI CU7-155H 16"/16/512GB 9S7-261221-038 MSI
• Category Code: NB
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 1)
• Processor model: 155H
• Processor cores: 16
• Processor threads: 22
• Processor boost frequency: 4.8
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 4.8
• Efficient-core Max Turbo Frequency: 3.8
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 1.4
• Efficient-core base frequency: 0.9
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 24
• Processor cache type: Smart Cache
• Maximum turbo power: 115
• Processor base power: 28
• Display diagonal: 14
• Display resolution: 2048 x 1280
• Panel type: OLED
• HD type: 2K
• Maximum refresh rate: 120
• Colour name: Solid Gray
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Market positioning: Business
• Original brand name: MSI
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/Windows ML
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory layout (slots x size): 2 x 8
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 96
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics
• Number of built-in speakers: 2
• Speaker power: 2
• Front camera: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720
• Video capturing speed: 30
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• Keyboard backlit: Yes
• Keyboard backlit colour: White
• Copilot key: Yes
• Operating system installed: FreeDOS
• Number of battery cells: 4
• Battery capacity: 55.2
• AC adapter power: 90
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Width: 315.6
• Depth: 235.5
• Height (front): 19.3
• Height (rear): 21.6
• Weight: 1700
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.012512
• Unit Calculated Weight: 3
