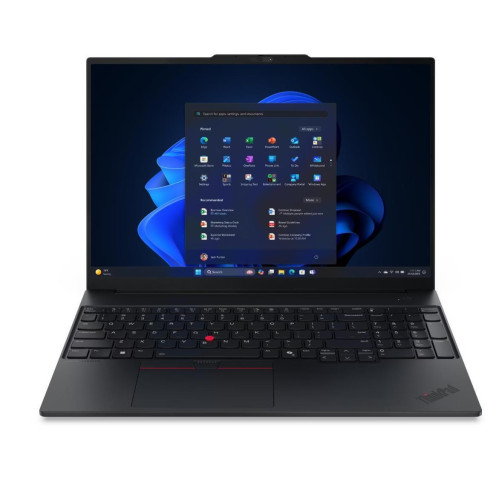

ThinkPad E16 Gen 3 (Intel)

Technical Specifications

• Description:
  • Intel Core Ultra 7 255H, 16C (6P + 8E + 2LPE)/16T, Max Turbo up to 5.1GHz, 24MB
  • 16" WUXGA (1920x1200) IPS 300nits 45% NTSC 60Hz
  • 1x 16GB SODIMM DDR5-5600
  • 512GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0
  • Intel Arc 140T GPU Functions as Intel Graphics
  • No OS

• Summary: Lenovo ThinkPad E16 Gen 3 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Product colour: Black. Weight: 1.63 kg
• Vendor Homepage: https://www.lenovo.com/
• Name: NB TP E16 G3 CU7-225U 16''/16/512GB 21SR004KRI LENOVO
• Category Code: NB
• NB Family name: ThinkPad
• Model name: E16 Gen 3 (Intel)
• Model: E16 Gen 3 (Intel)
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 255H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.1
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.1
• Efficient-core Max Turbo Frequency: 4.4
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2
• Efficient-core base frequency: 1.5
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 24
• Maximum turbo power: 115
• Processor base power: 28
• Display diagonal: 16
• Display resolution: 1920 x 1200
• Panel type: IPS
• HD type: WUXGA
• Touchscreen: No
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 300
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Aluminium
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/Windows ML
• Total processor performance up to: 96
• NPU performance up to: 13
• GPU performance up to: 74
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 16
• Maximum internal memory: 64
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: No
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T
• Audio chip: Senary SN6147
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• Near Field Communication (NFC): No
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel® Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel SoC
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard language: English
• Operating system installed: No
• Battery capacity: 64
• AC adapter power: 65
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Smart card reader: No
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: TCO,RoHS
• Width: 356
• Depth: 249
• Height (front): 10.1
• Height (rear): 17.05
• Weight: 1630
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.012544
• Unit Calculated Weight: 3
