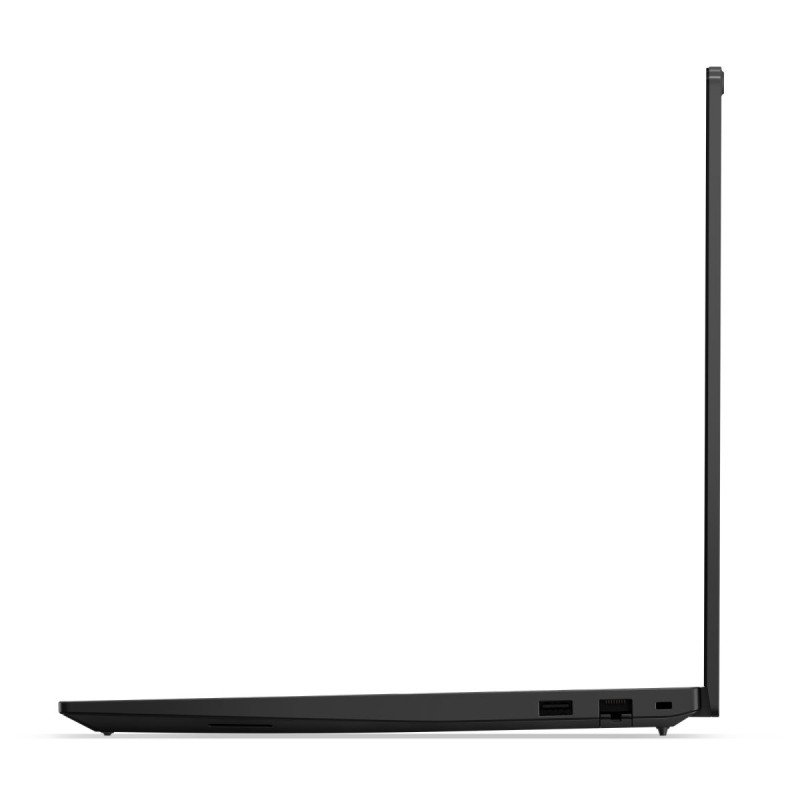

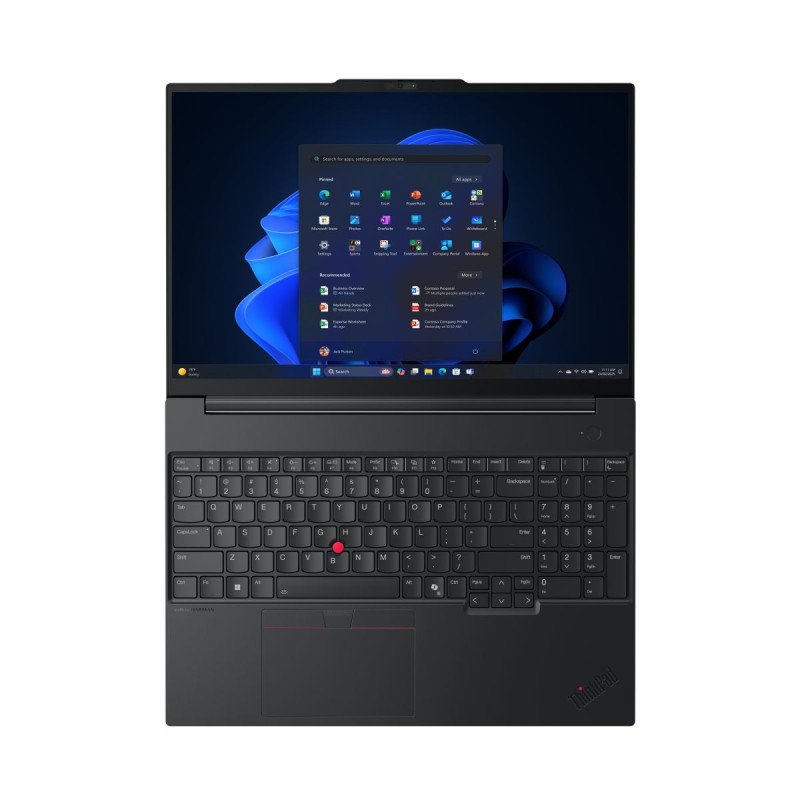

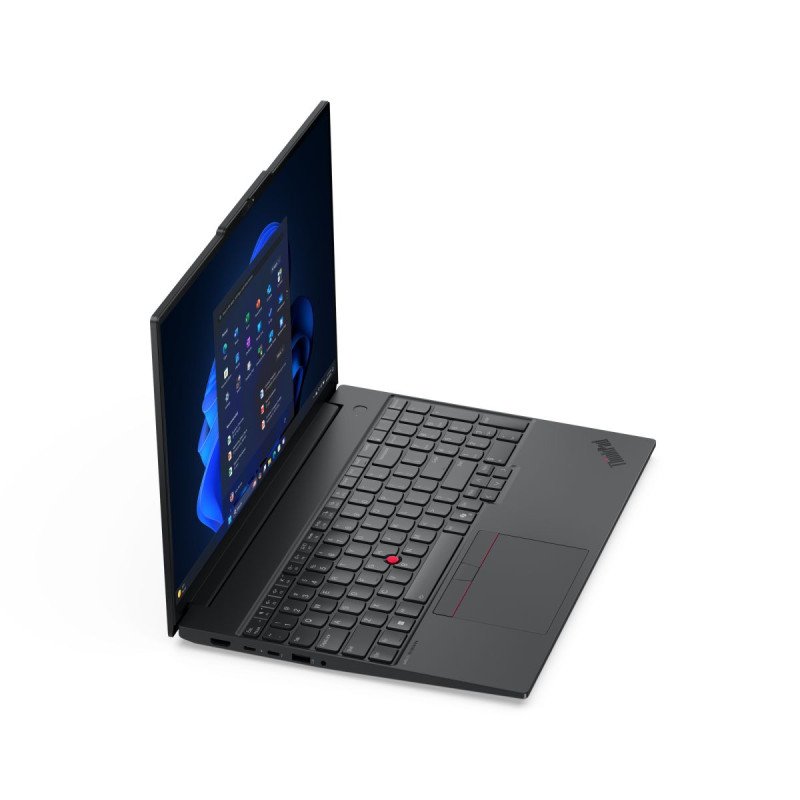

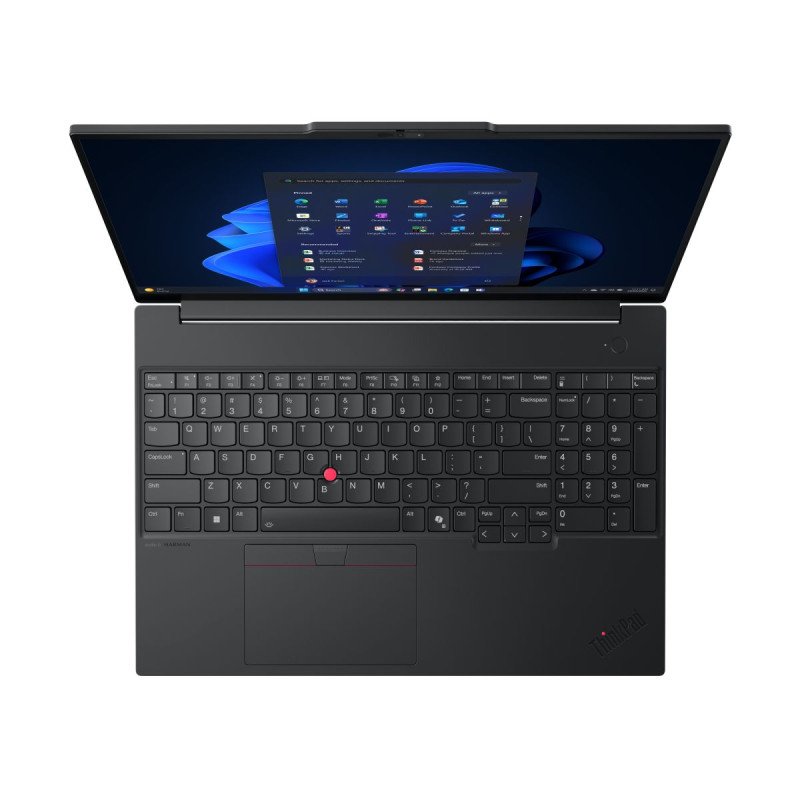

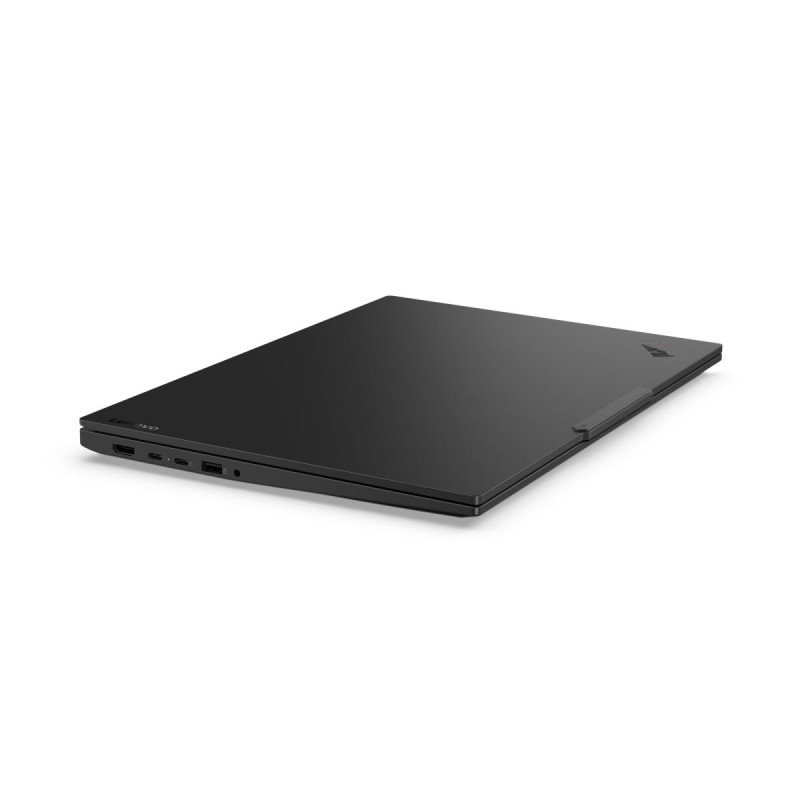

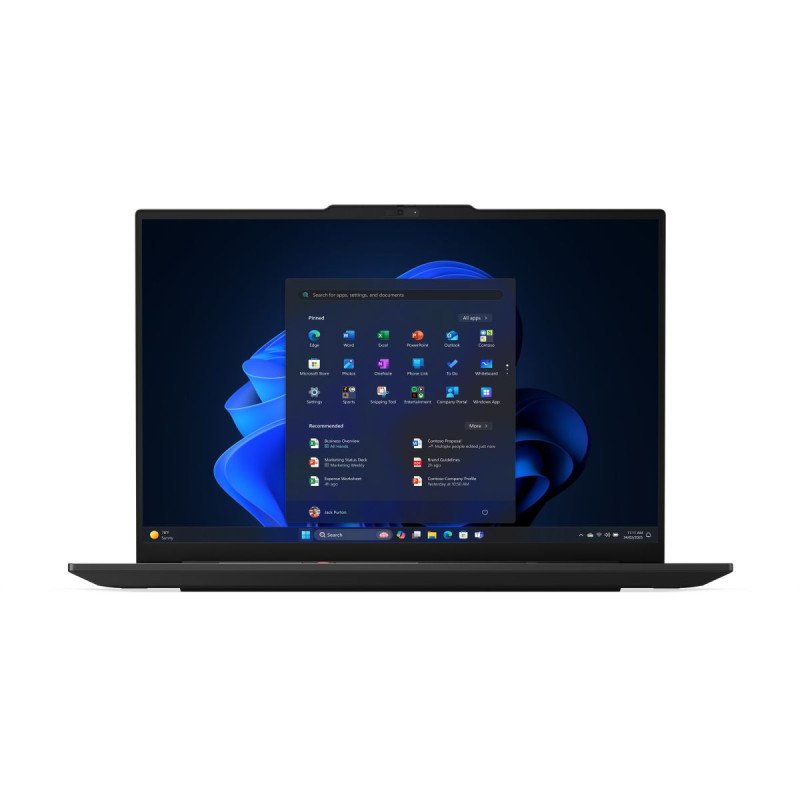

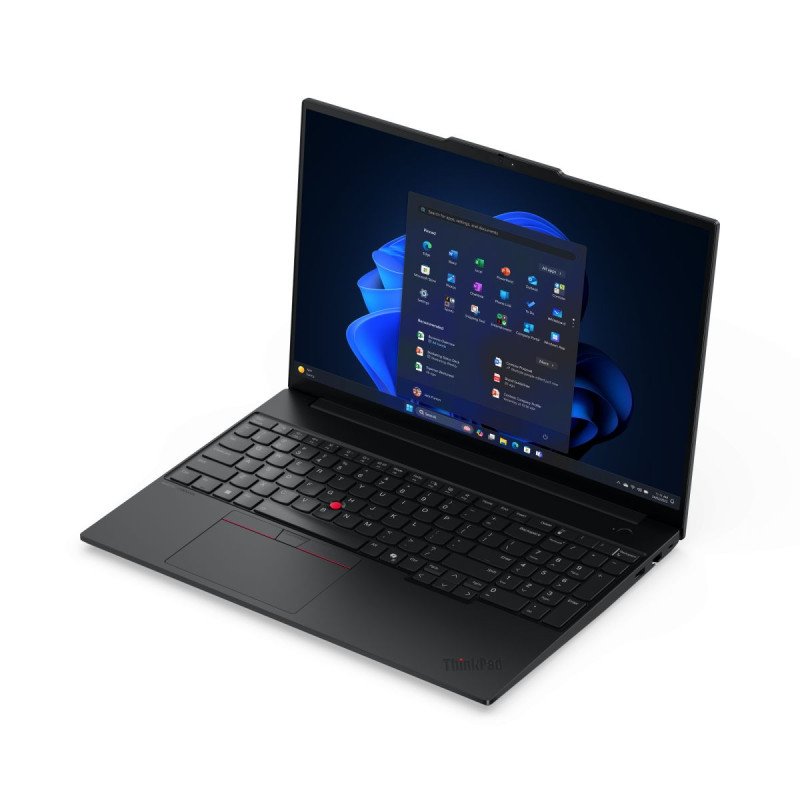

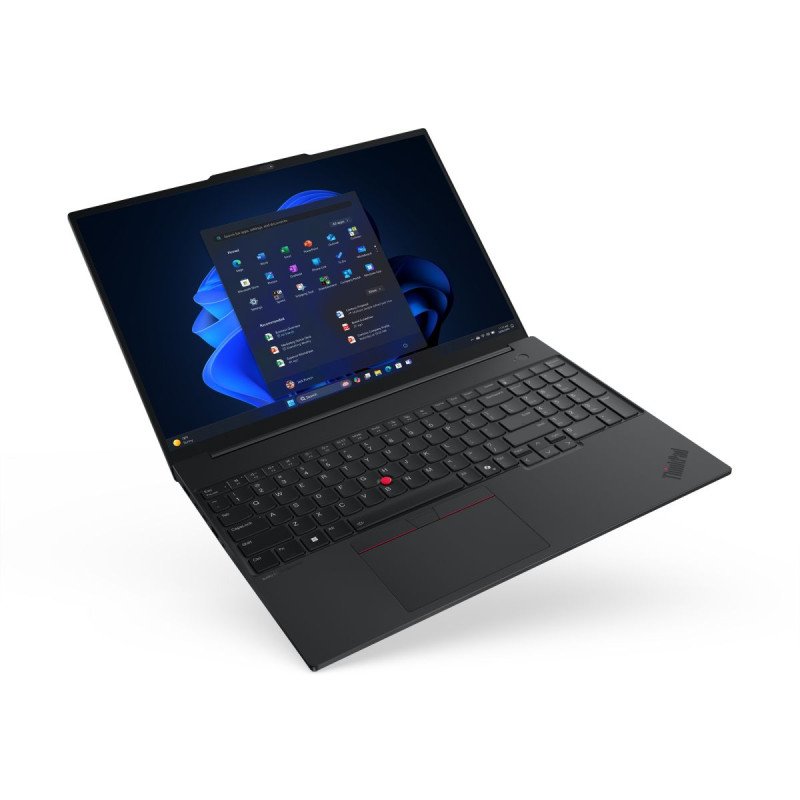

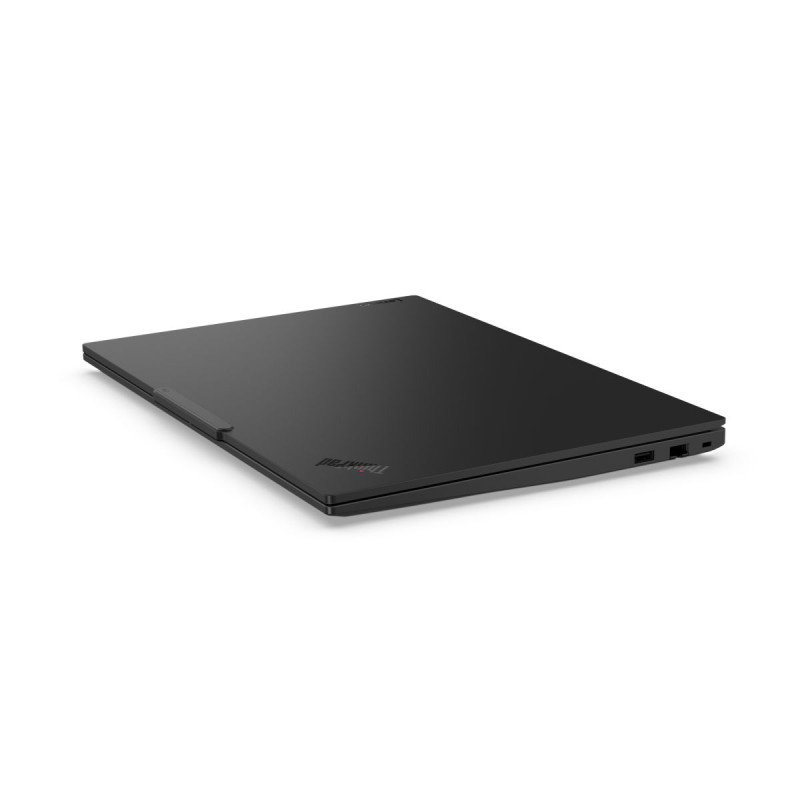

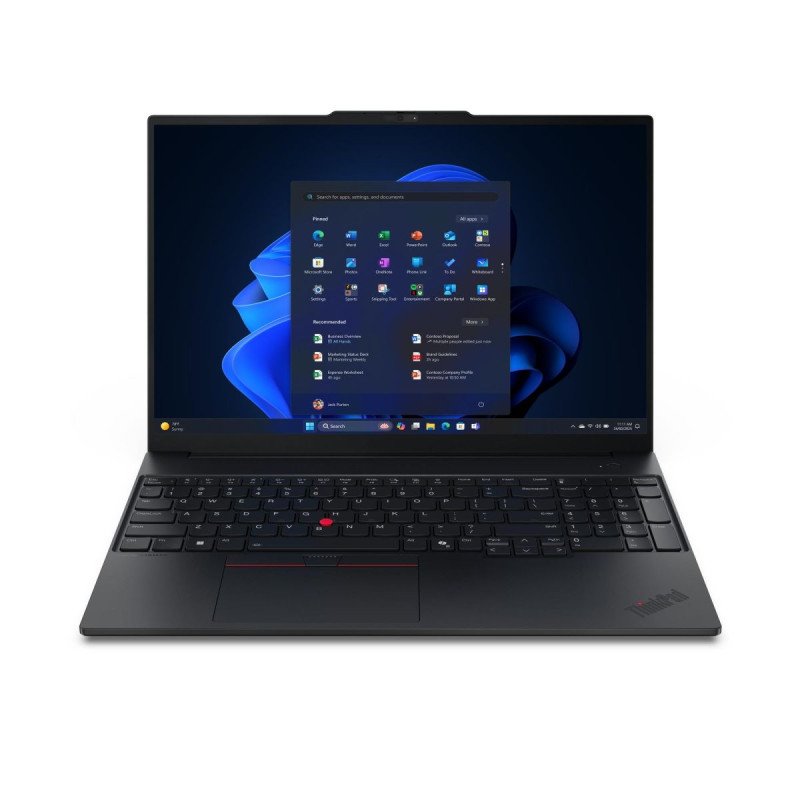

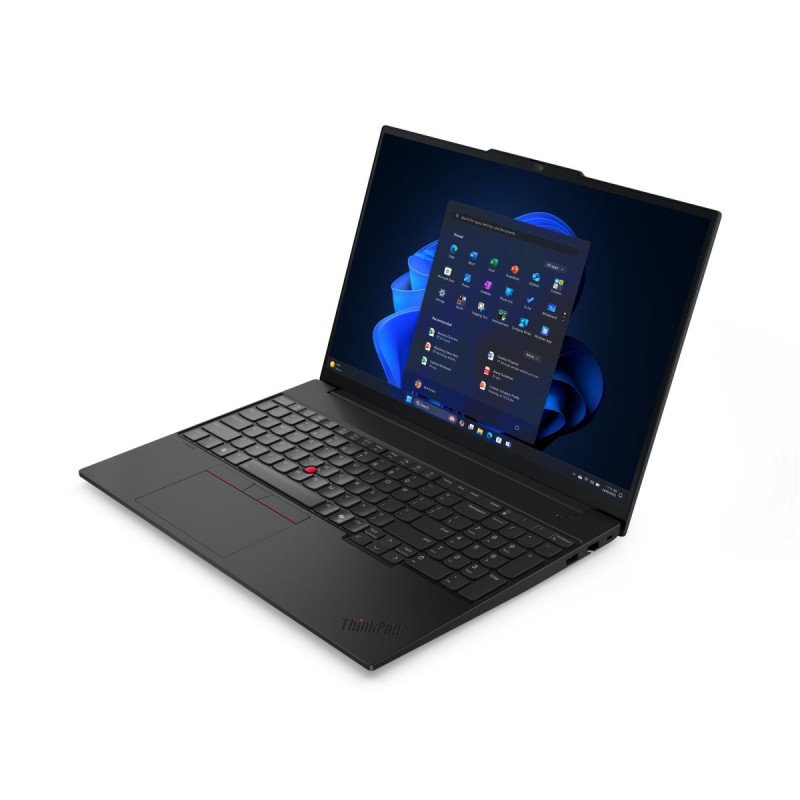

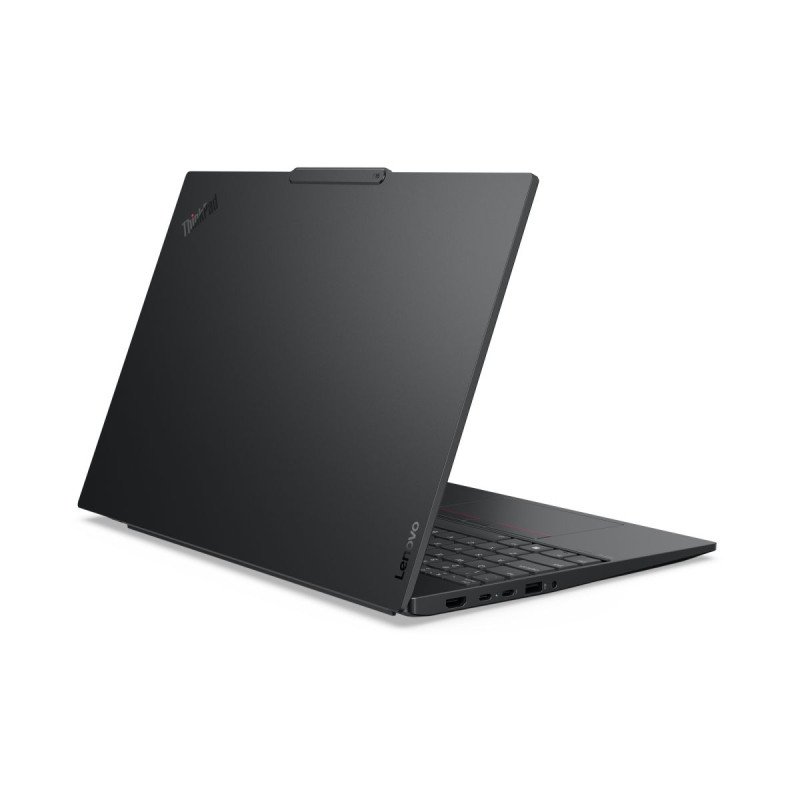

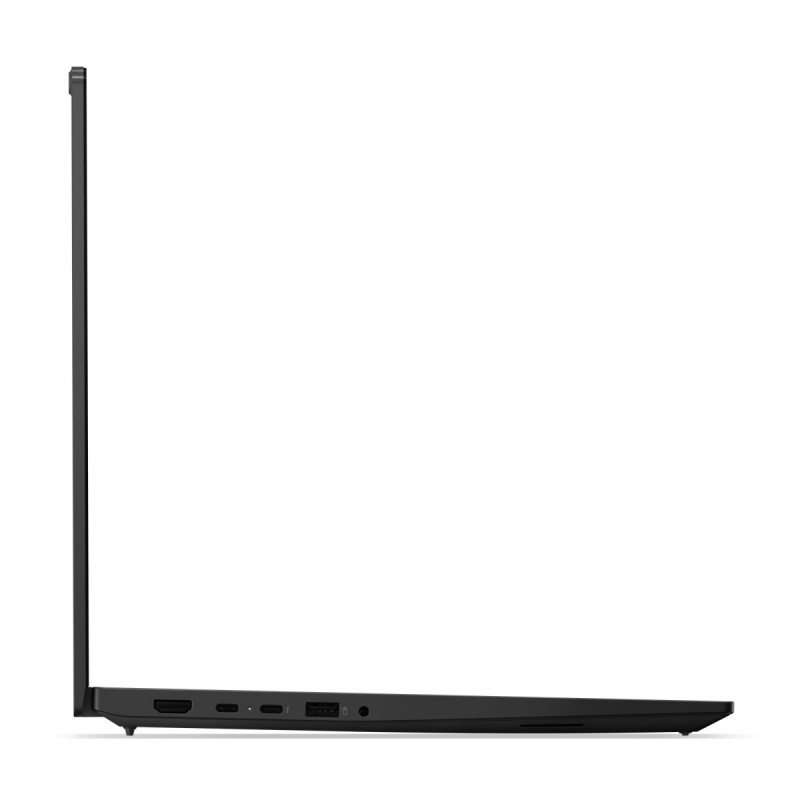

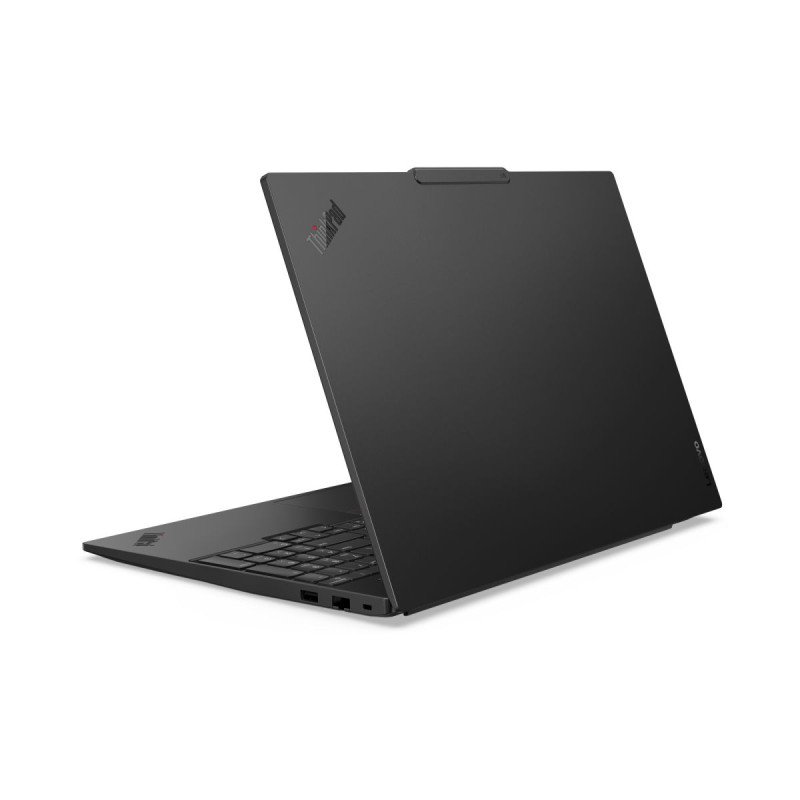

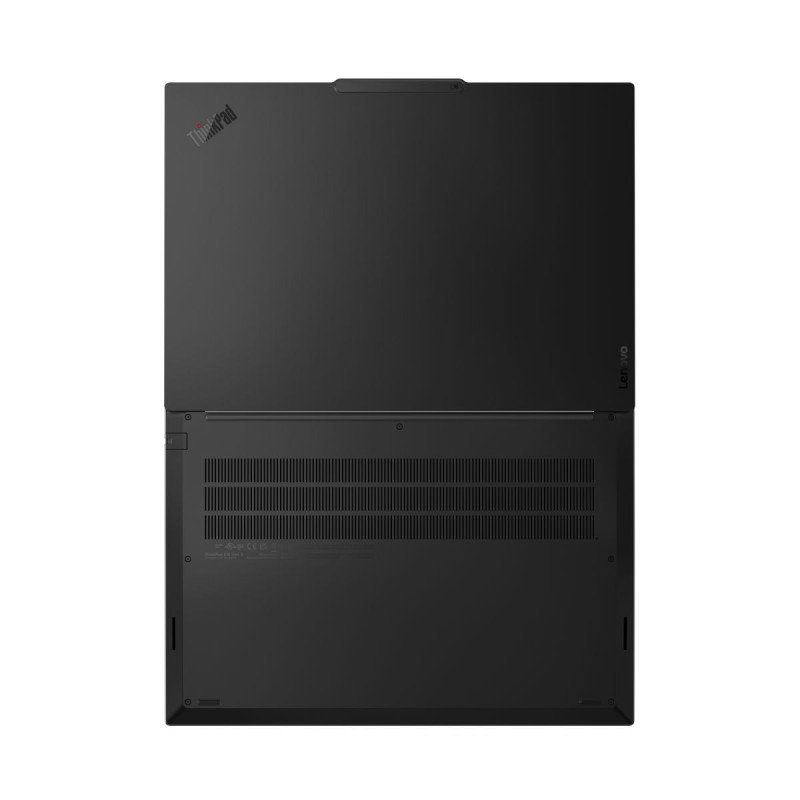

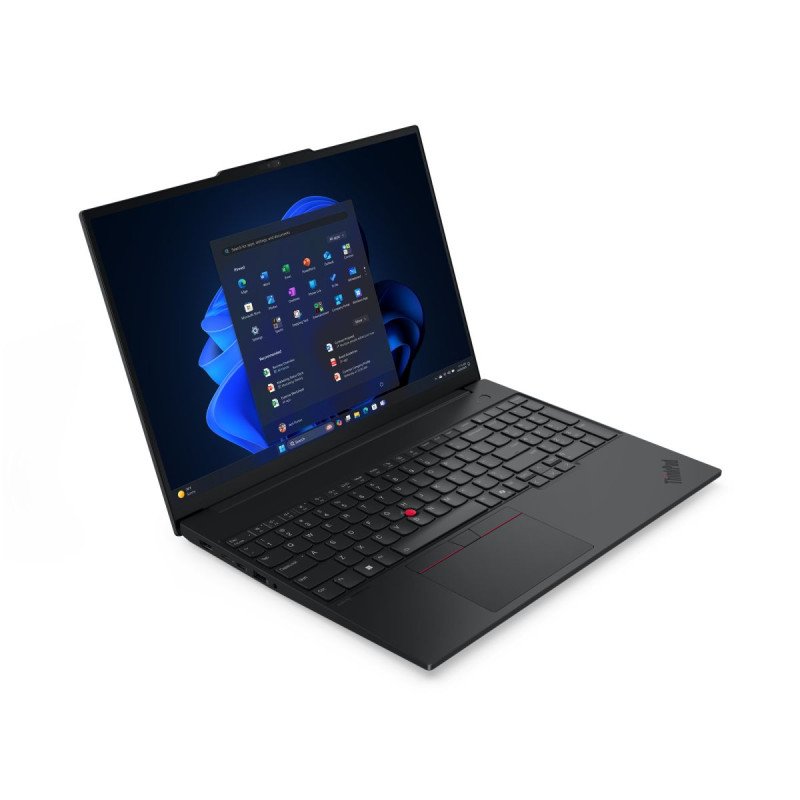

ThinkPad E16 Gen 3 (Intel)

Technical Specifications

• Summary: Lenovo ThinkPad E16 Gen 3 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 228V. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Product colour: Black. Weight: 1.61 kg
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/thinkpad/thinkpade/lenovo-thinkpad-e16-gen-3-16-inch-intel/len101t0120?orgRef=https%253A%252F%252Fwww.google.com%252F&srsltid=AfmBOooTp6xH4jSkuPsrQ12p_WKuOIvuSrJ179yayN9Zo9qM76F3fiYX
• Name: NB TP E16 G3 CU5-228V 16/32GB/1TB 22AY0026RI LENOVO
• Category Code: NB
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 5
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 228V
• Processor cores: 8
• Processor threads: 8
• Processor boost frequency: 4.5
• Performance cores: 4
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 4.5
• Low Power Efficient-core Max Turbo Frequency: 3.5
• Performance-core base frequency: 2.1
• Low Power Efficient-core Base Frequency: 2100
• Processor cache: 8
• Processor cache type: Smart Cache
• Maximum turbo power: 37
• Processor base power: 17
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: IPS
• HD type: WQXGA
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 400
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 120
• Contrast ratio (typical): 1200:1
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Aluminium
• Copilot+ PC: Yes
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 97
• NPU performance up to: 40
• GPU performance up to: 53
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8533
• Memory form factor: On-board
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total HDDs capacity: 1
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics 130V
• Audio chip: Senary SN6147
• Audio system: Dolby Atmos
• Number of built-in speakers: 2
• Speakers manufacturer: Harman Kardon
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel SoC
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Spill-resistant keyboard: Yes
• Keyboard language: English
• Copilot key: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 64
• AC adapter power: 65
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/Power on/Supervisor
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Certification: ErP Lot 6/26 RoHS compliant TCO Certified, generation 10 MIL-STD-810H military test passed Eyesafe Certified 2.0
• Width: 356
• Depth: 249
• Height (front): 10.1
• Height (rear): 17.05
• Weight: 1610
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01445
• Unit Calculated Weight: 3
