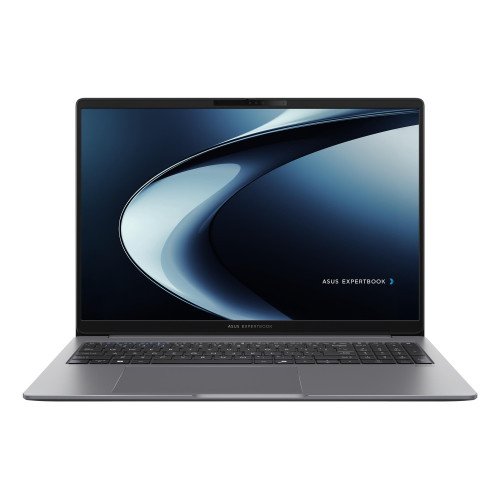

ExpertBook P3

Technical Specifications

• Summary: ASUS ExpertBook P3 PM3606CKA-MB0296. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 7, Processor model: 350, Processor frequency: 2 GHz. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 860M. Product colour: Grey. Weight: 1.87 kg
• Vendor Homepage: https://www.asus.com/laptops/for-work/expertbook/asus-expertbook-p3-pm3606
• Name: NB PM3606CKA RAI7-350 15"/16GB/1TB PM3606CKA-MB0296 ASUS
• Category Code: NB
• NB Family name: ExpertBook
• Model name: PM3606CKA-MB0296
• Processor manufacturer: AMD
• Processor family: AMD Ryzen AI 7
• Processor generation: AMD Ryzen AI 300 Series
• Processor model: 350
• Processor cores: 8
• Processor threads: 16
• Processor boost frequency: 5
• Processor frequency: 2
• Processor cache type: L2 & L3
• L3 cache: 16
• L2 cache: 8
• Display diagonal: 16
• Display resolution: 1920 x 1200
• HD type: WUXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 300
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Contrast ratio (typical): 1000:1
• Colour name: Misty Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Display back cover material: Aluminium
• Housing material: Aluminium
• Market positioning: Work
• Neural processor unit (NPU): AMD Ryzen AI
• Total processor performance up to: 66
• NPU performance up to: 50
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory form factor: SO-DIMM
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 860M
• On-board graphics card 4K support: Yes
• On-board graphics card 8K support: Yes
• AMD FreeSync: Yes
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 1000
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 70
• AC adapter power: 90
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 4.5
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 90
• USB Type-C required charging power (min): 80
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Sustainability certificates: Forest Stewardship Council (FSC) Recycled/TCO
• Width: 358.4
• Depth: 253.5
• Height (front): 17.9
• Height (rear): 18
• Weight: 1870
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009604
• Unit Calculated Weight: 4
