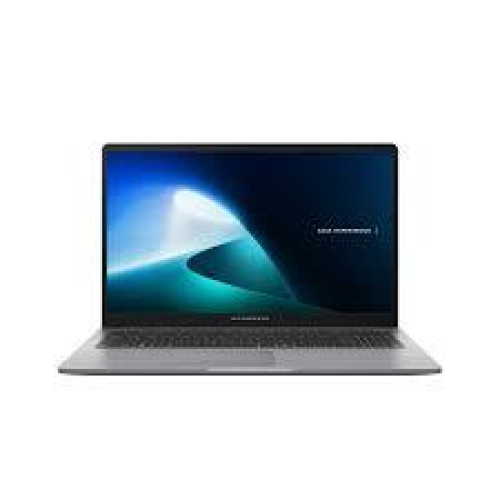

ExpertBook P1

Technical Specifications

• Description:

  Elevate your efficiency, anywhere
  The compact and elegant ASUS ExpertBook P1 weighs a mere 1.6kg1 with a breathtaking new design, and features exceptional efficiency to supercharge your productivity. It’s engineered to deliver superb performance powered by an up to AMD® Ryzen™ 7 processor and packs up to 1TB capacity with dual SSDs. ASUS ExpertBook P1 is also engineered to protect your privacy and business data via a built-in fingerprint sensor and integrated TPM 2.0 chip2 — your reliable, trusted traveling companion, ready to complete every task on time.


  • No OS
  • AMD Ryzen 5 7535HS (3.3GHz)
  • 39.6 cm (15.6") Full HD 1920 x 1080
  • 8GB DDR5-SDRAM (1 x 8) & 512GB SSD

• Summary: ASUS ExpertBook P1 PM1503CDA-S70026. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzenâ„¢ 5, Processor model: 7535HS, Processor frequency: 3.3 GHz. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 660M. Product colour: Grey
• Vendor Homepage: https://www.asus.com/laptops/for-work/expertbook/asus-expertbook-p1-pm1503/
• Name: NB PM1503CDA R5-7535HS 15"/8/512GB PM1503CDA-S70026 ASUS
• Category Code: NB
• NB Family name: ExpertBook
• Model name: P1
• Processor manufacturer: AMD
• Processor family: AMD Ryzenâ„¢ 5
• Processor generation: AMD Ryzen 7000 Series
• Processor model: 7535HS
• Processor cores: 6
• Processor boost frequency: 4.55
• Processor frequency: 3.3
• Processor cache type: L2 & L3
• L3 cache: 16
• L2 cache: 3
• Display diagonal: 15.6
• Display resolution: 1920 x 1080
• HD type: Full HD
• Touchscreen: No
• LED backlight: Yes
• Native aspect ratio: 16:9
• Display brightness: 300
• Colour gamut: 45
• RGB colour space: NTSC
• Colour name: Misty Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Plastic
• Market positioning: Work
• Introduction year: 2025
• Internal memory: 8
• Internal memory type: DDR5-SDRAM
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 8
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• Optical drive type: No
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board graphics card: Yes
• On-board graphics card model: AMD Radeon 660M
• Audio system: Dirac
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 1.4
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Numeric keypad: Yes
• Spill-resistant keyboard: Yes
• Operating system installed: No
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 3
• Battery capacity: 50
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 3.25
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD/User
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR/EPEAT Climate +/EPEAT Gold/Forest Stewardship Council (FSC) Recycled/TCO
• Width: 359.5
• Depth: 232.2
• Height: 19.9
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.008388
• Unit Calculated Weight: 2.7
