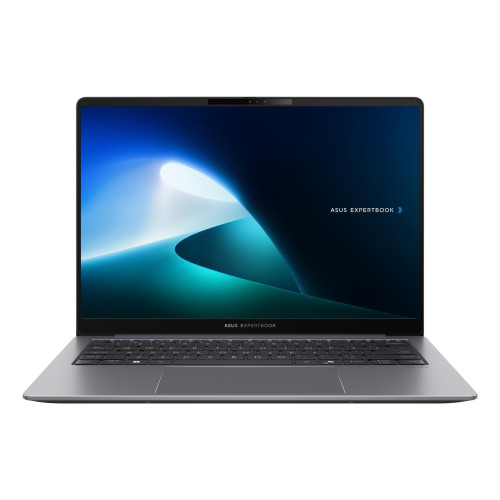

ExpertBook P5

Technical Specifications

• Description:

  Work reimagined, with AI
  Say hello to ASUS ExpertBook P5 – a revolutionary leap in AI PC for work. Designed to elevate productivity for mobile professionals and home offices, ExpertBook P5 harnesses the power of Intel® Core™ Ultra processors (Series 2)1. This AI powerhouse empowers you with our brand-new, exclusive meeting assistant ASUS AI ExpertMeet, streamline workflows and enhance collaboration. With a light yet durable aluminum chassis, stunning 2.5K 144 Hz display, and business-grade security and service, the ExpertBook P5 provides peak performance and seamless work experiences, anywhere.

• Vendor Homepage: https://www.asus.com/laptops/for-work/expertbook/expertbook-p5-p5405/
• Name: NB P5405CSA CU5-226V 14" 16GB/1TB P5405CSA-NZ0169 ASUS
• Category Code: NB
• NB Family name: ExpertBook
• Model name: P5
• Model: P5405CSA-NZ0169
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 5
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 226V
• Processor cores: 8
• Processor threads: 8
• Performance-core base frequency: 2.1
• Processor cache: 8
• Display diagonal: 14
• Display resolution: 2560 x 1600
• HD type: WQXGA
• Touchscreen: No
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 400
• Colour gamut: 100
• RGB colour space: sRGB
• Colour name: Misty Gray
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Aluminium
• Market positioning: Work
• Introduction year: 2025
• Internal memory: 16
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• Optical drive type: No
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics 130V
• Audio system: Dolby Atmos
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: No
• Bluetooth: Yes
• Bluetooth version: 5.4
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: No
• Keyboard language: English
• Operating system installed: No
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 3
• Battery capacity: 63
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 3.25
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Fingerprint reader: Yes
• Width: 312
• Depth: 223.2
• Height: 16.4
• Weight: 1270
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009576
• Unit Calculated Weight: 2.6
