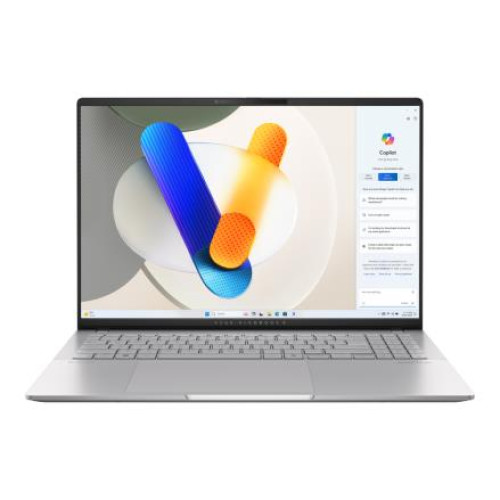

VivoBook S 16 OLED

Technical Specifications

• Description:

  So slim. So light. So right.
  The ASUS Vivobook S 16 OLED transforms your laptop experience with cutting-edge technology and a sleek minimalist design. Powered by the AMD Ryzen™ Processor, it delivers top-notch performance with a 45 W TDP and features the AMD Ryzen™ AI accelerator for intelligent workload optimization. The dedicated Copilot key provides instant one-touch access to AI capabilities. With a slim 1.39 cm profile, weighing 1.5 kg, and up to a 14-hour battery life, it’s designed for on-the-go convenience.

• Vendor Homepage: https://www.asus.com/laptops/for-home/vivobook/asus-vivobook-s-16-oled-m5606/
• Name: NB M5606KA RAI7-350 16"/24GB/1TB M5606KA-RI035 ASUS
• Category Code: NB
• NB Family name: VivoBook S
• Model name: 16 OLED
• Model: M5606KA-RI035
• Processor manufacturer: AMD
• Processor family: AMD Ryzen AI 7
• Processor generation: AMD Ryzen AI 300 Series
• Processor model: 350
• Processor cores: 8
• Processor threads: 16
• Processor boost frequency: 5
• Processor frequency: 2
• Processor cache type: L2 & L3
• L3 cache: 16
• L2 cache: 8
• Display diagonal: 16
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 3K
• Touchscreen: No
• Display number of colours: 1.07 billion colours
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 400
• Maximum display brightness (HDR): 600
• Colour gamut: 100
• Low Blue Light technology: Yes
• RGB colour space: DCI-P3
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: HDR True Black 500
• Colour name: Cool Silver
• Product type: Laptop
• Product colour: Silver
• Form factor: Clamshell
• Housing material: Aluminium
• Market positioning: Home
• Introduction year: 2024
• Internal memory: 24
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Maximum internal memory: 24
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 860M
• Audio system: Smart Amp
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: No
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• USB4 Gen 3x2 ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 1-zone RGB
• Operating system installed: No
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 75
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 3.25
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Width: 353.6
• Depth: 246.9
• Height (front): 13.9
• Height (rear): 15.9
• Weight: 1500
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0097728
• Unit Calculated Weight: 3.2
