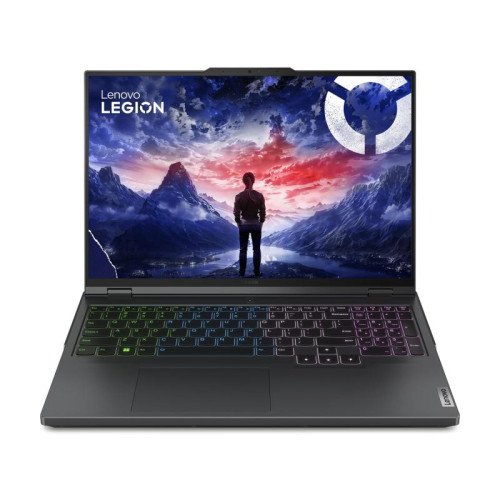

Legion Pro 5 16IRX9

Technical Specifications

• Summary: Lenovo Legion Pro 5 16IRX9. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core i7, Processor model: i7-14700HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 4060. Product colour: Grey. Weight: 2.5 kg
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/legion-laptops/legion-5-series/lenovo-legion-pro-5i-gen-9-(16-inch-intel)/len101g0033
• Name: NB LP5-16IRX9 CI7-14700HX 16"/32GB/1TB 83DF002PRM LENOVO
• Category Code: NB
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: Intel Core i7 (14th gen)
• Processor model: i7-14700HX
• Processor cores: 20
• Processor threads: 28
• Processor boost frequency: 5.5
• Performance cores: 8
• Efficient cores: 12
• Performance-core Max Turbo Frequency: 5.5
• Efficient-core Max Turbo Frequency: 3.9
• Performance-core base frequency: 2.1
• Efficient-core base frequency: 1.5
• Processor cache: 33
• Processor cache type: Smart Cache
• Maximum turbo power: 157
• Processor base power: 55
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: IPS
• HD type: WQXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 300
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 165
• Contrast ratio (typical): 1200:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Onyx grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Polycarbonate (PC),Acrylonitrile butadiene styrene (ABS),Aluminium
• Market positioning: Gaming
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 4060
• Discrete graphics memory type: GDDR6
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• NVIDIA G-SYNC: Yes
• Audio chip: Realtek ALC3287
• Audio system: Nahimic Audio
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.2
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel HM770
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 4-zone RGB
• Keyboard language: English
• Battery technology: Lithium Polymer (LiPo)
• Battery capacity: 80
• Battery life (max): 5.2
• Continuous video playback time: 7.1
• Fast charging: Yes
• AC adapter power: 300
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/Power on/Supervisor
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ErP Lot 3 TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution)
• Width: 363.4
• Depth: 261.75
• Height (front): 21.99
• Height (rear): 26.95
• Weight: 2500
• AC adapter included: Yes
• Box contents: Lenovo Legion Gaming Speed Mouse Pad M
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01782
• Unit Calculated Weight: 4.8
