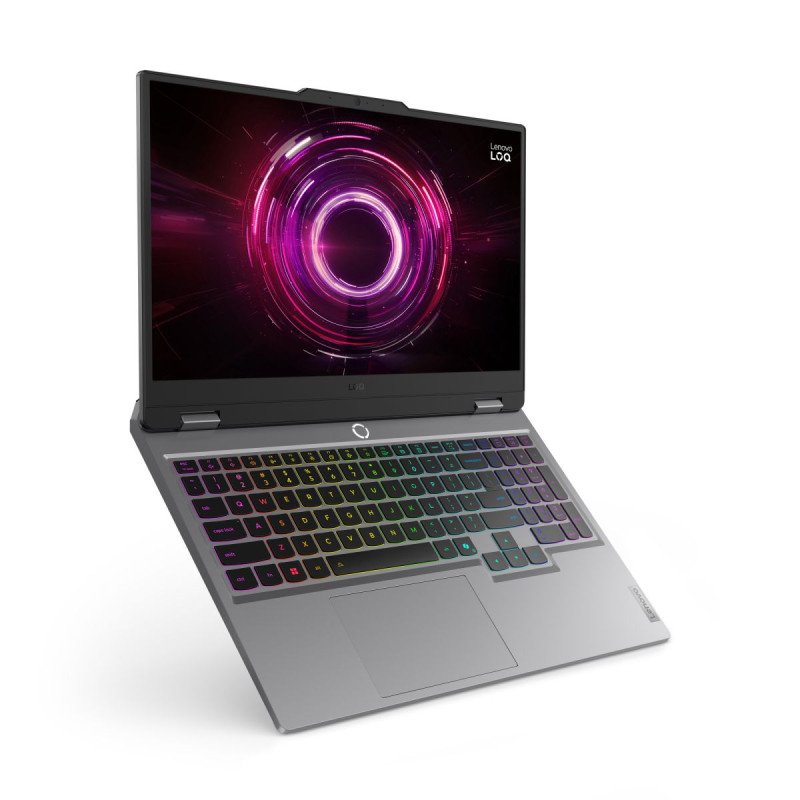

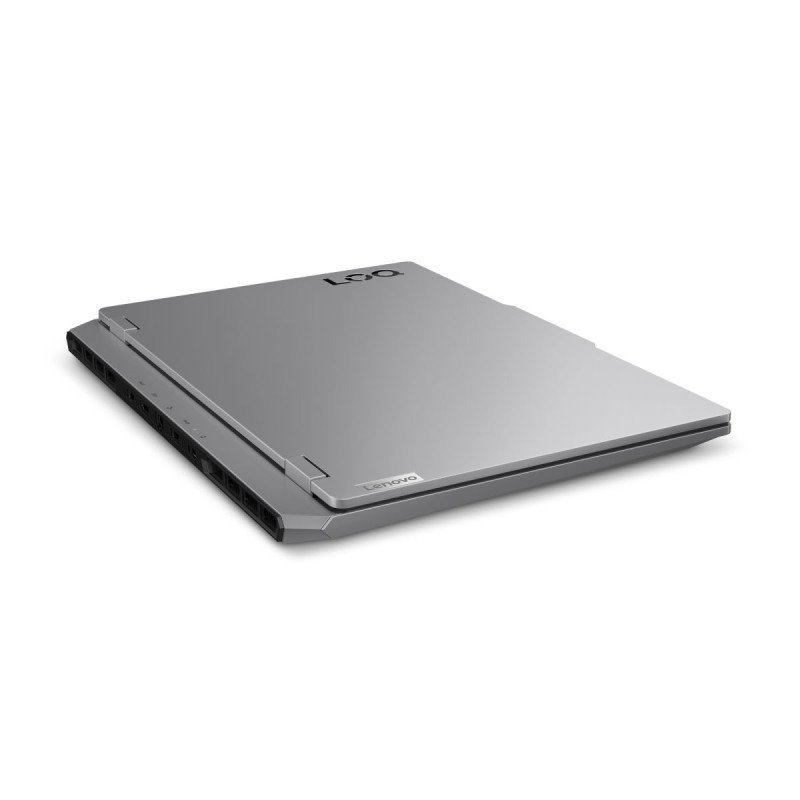

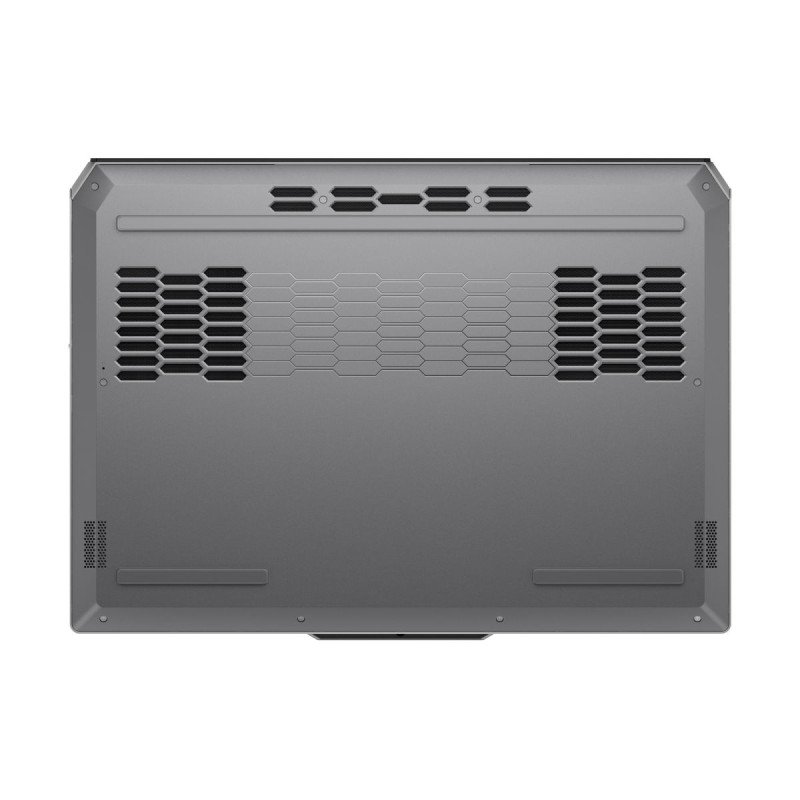

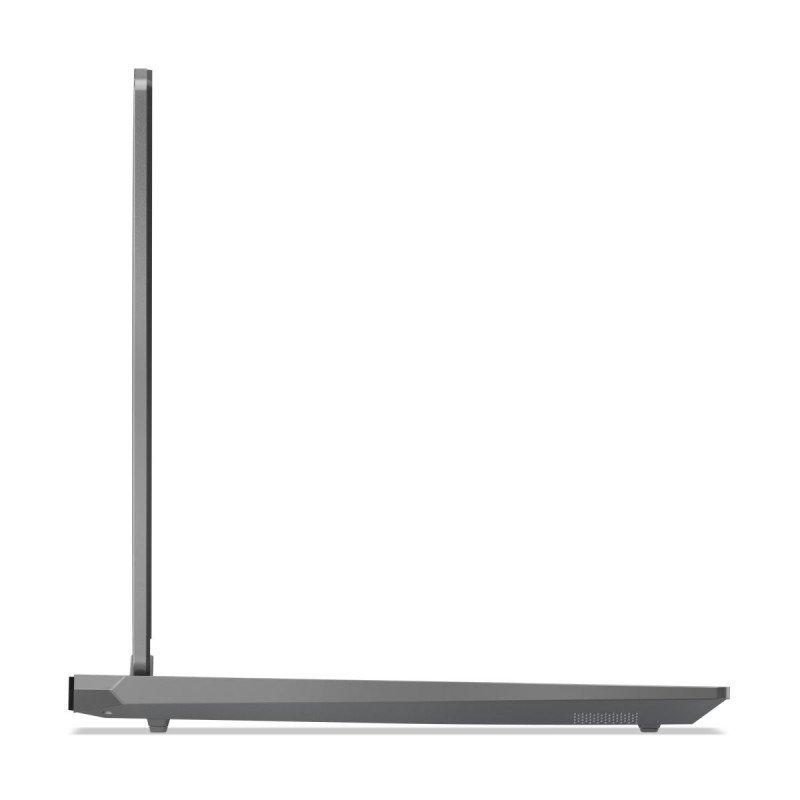

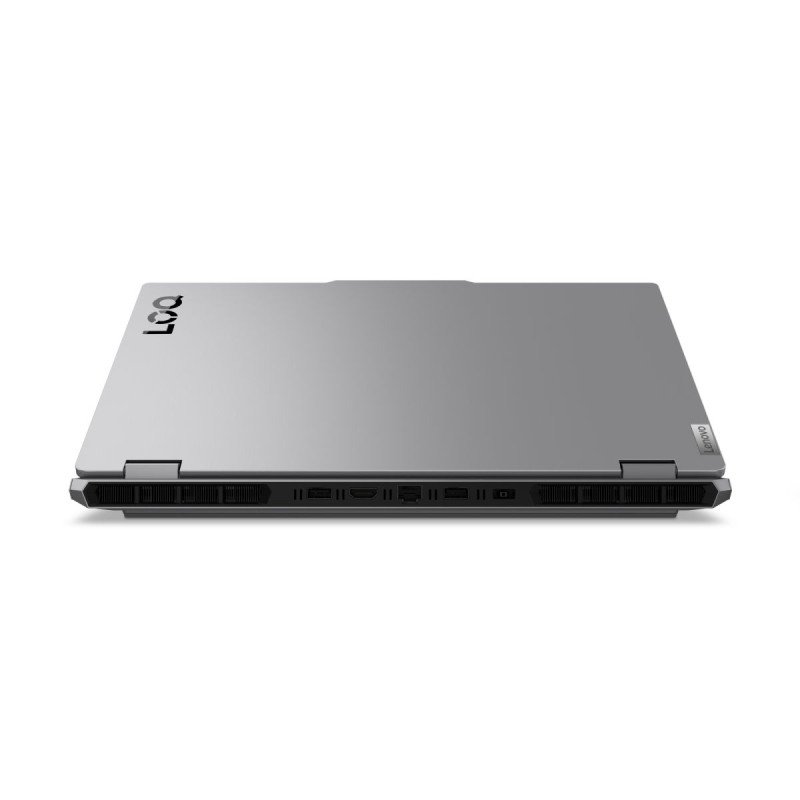

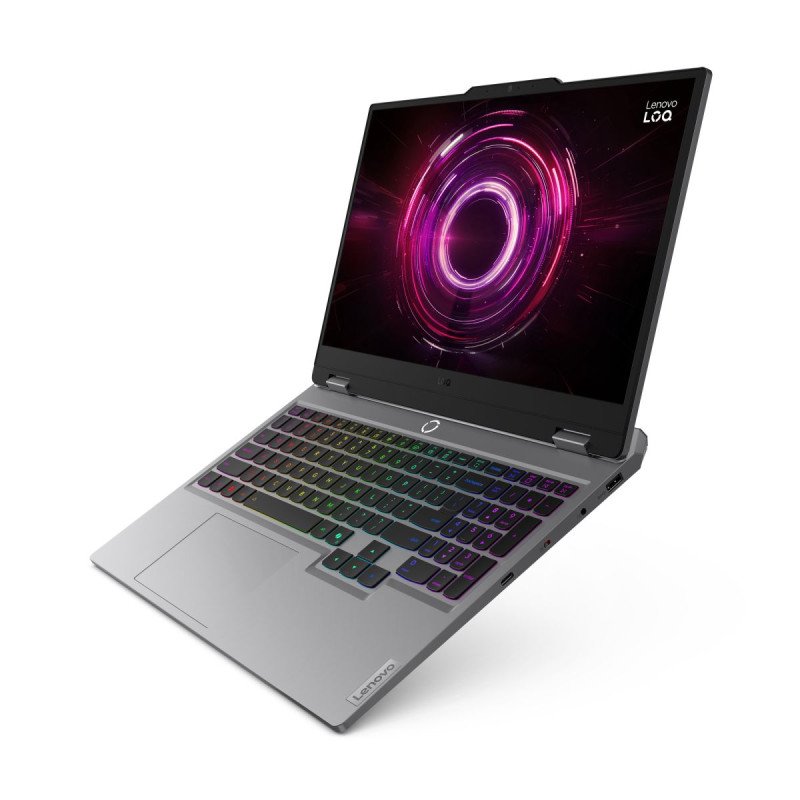

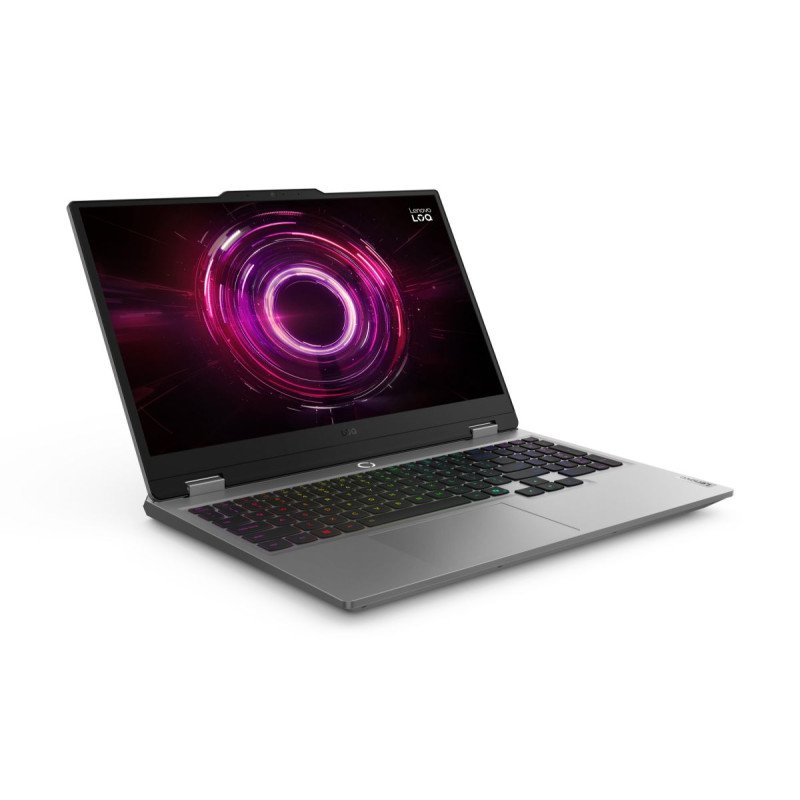

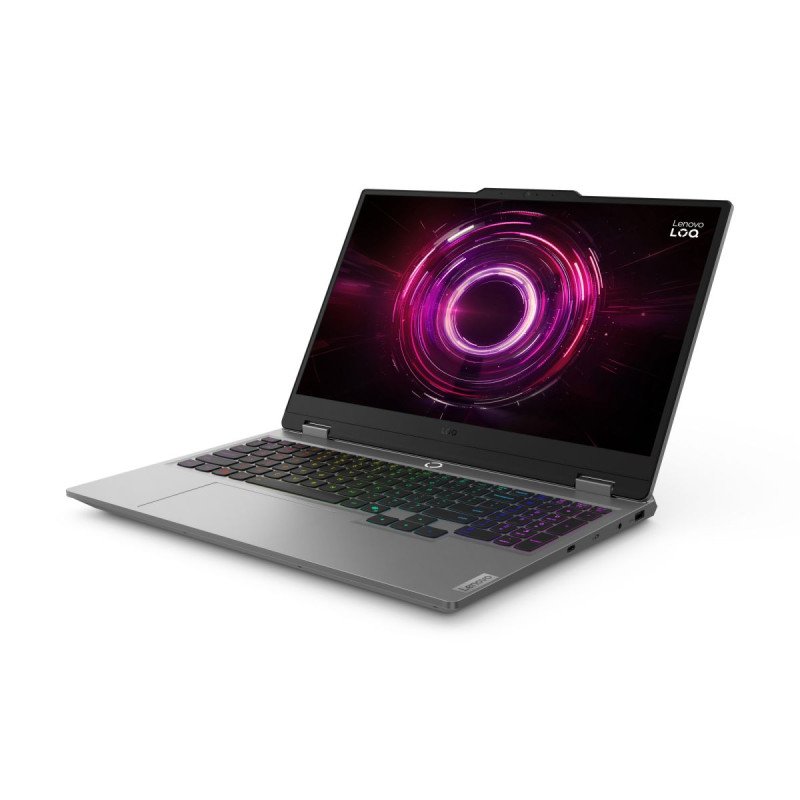

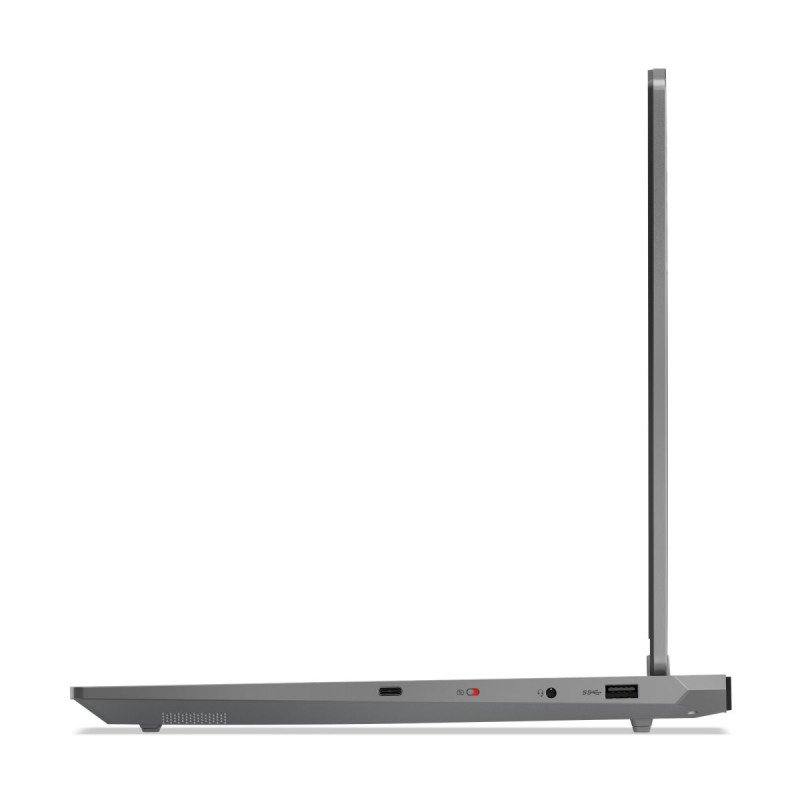

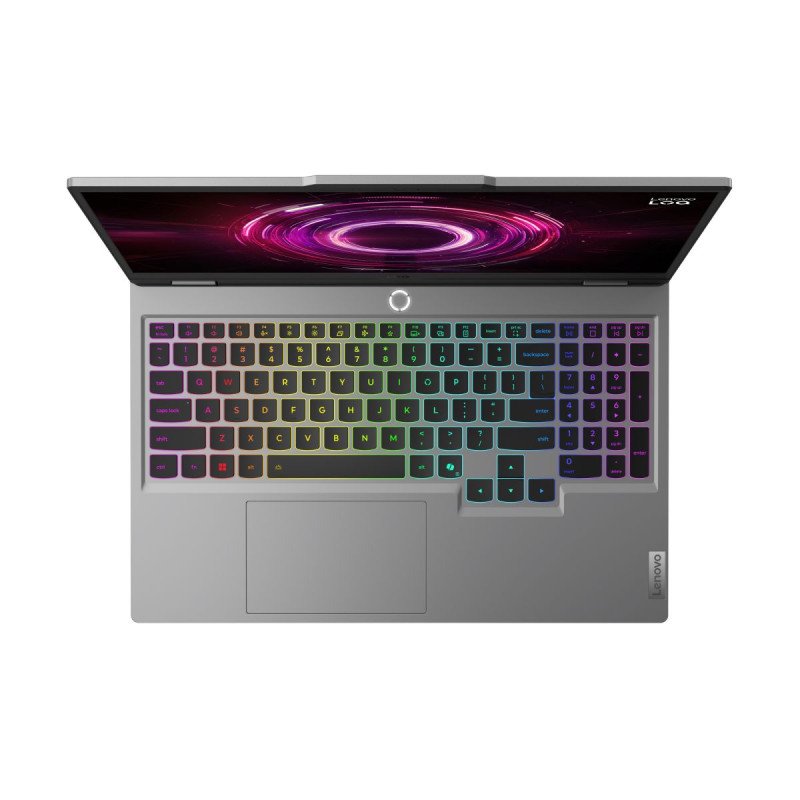

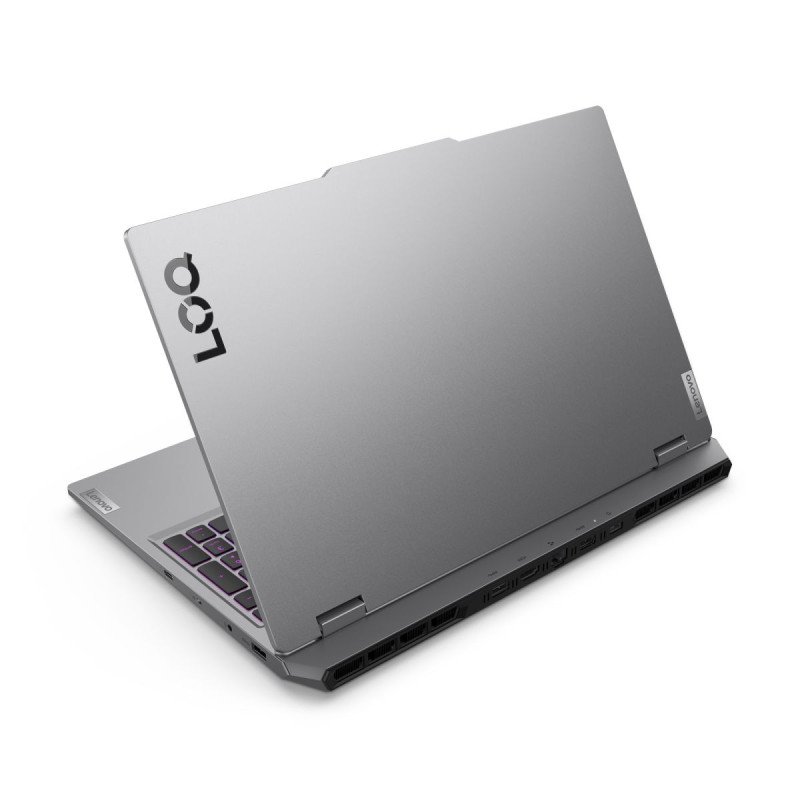

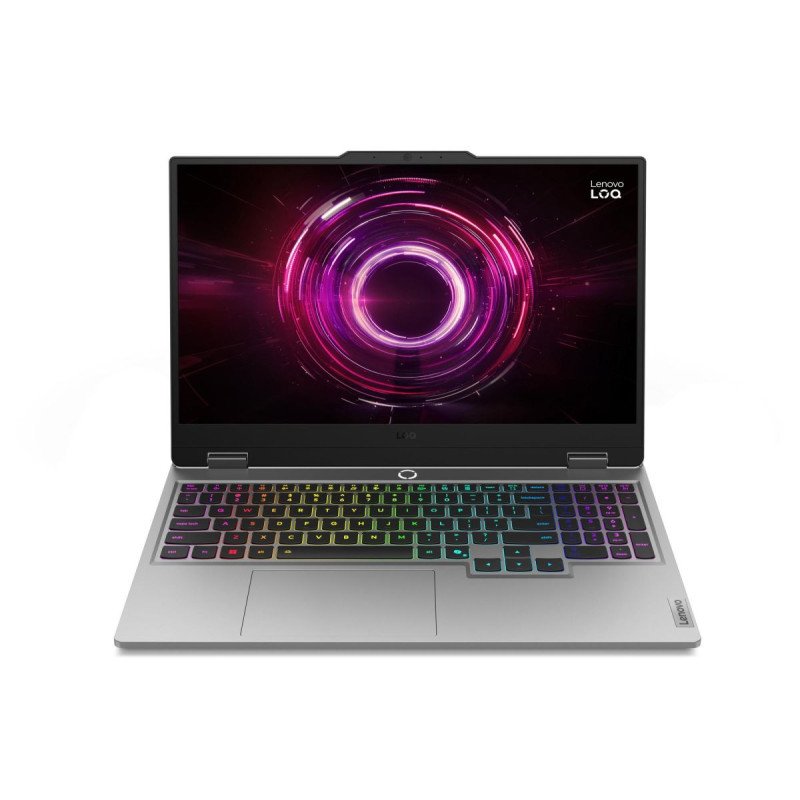

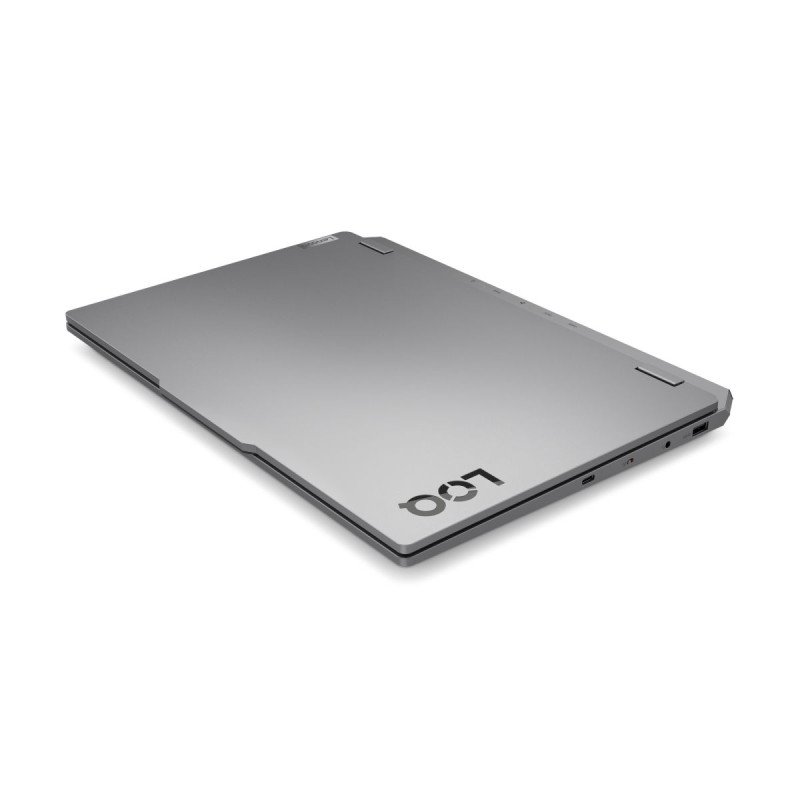

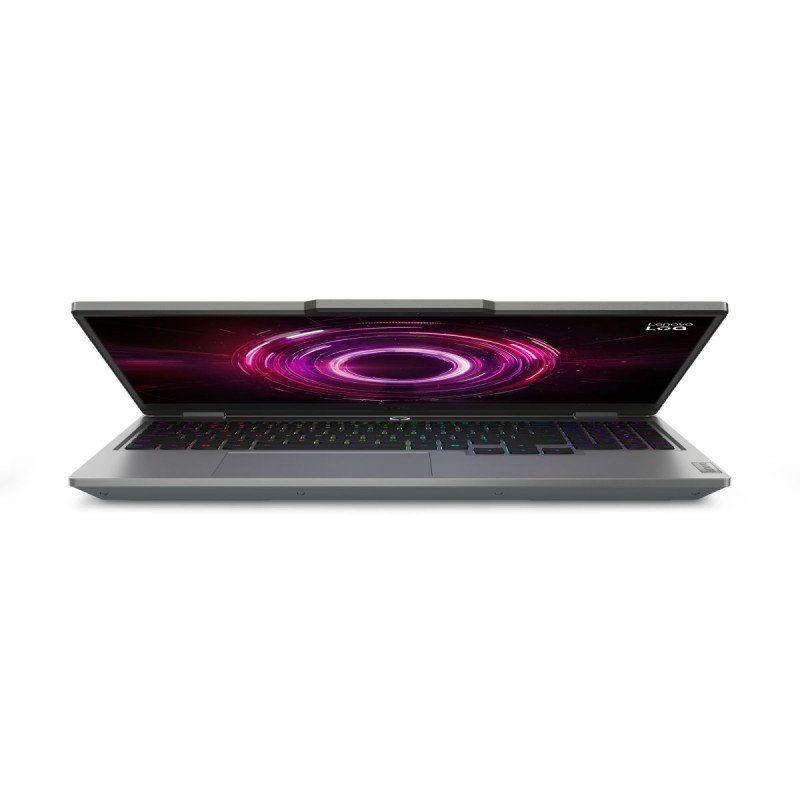

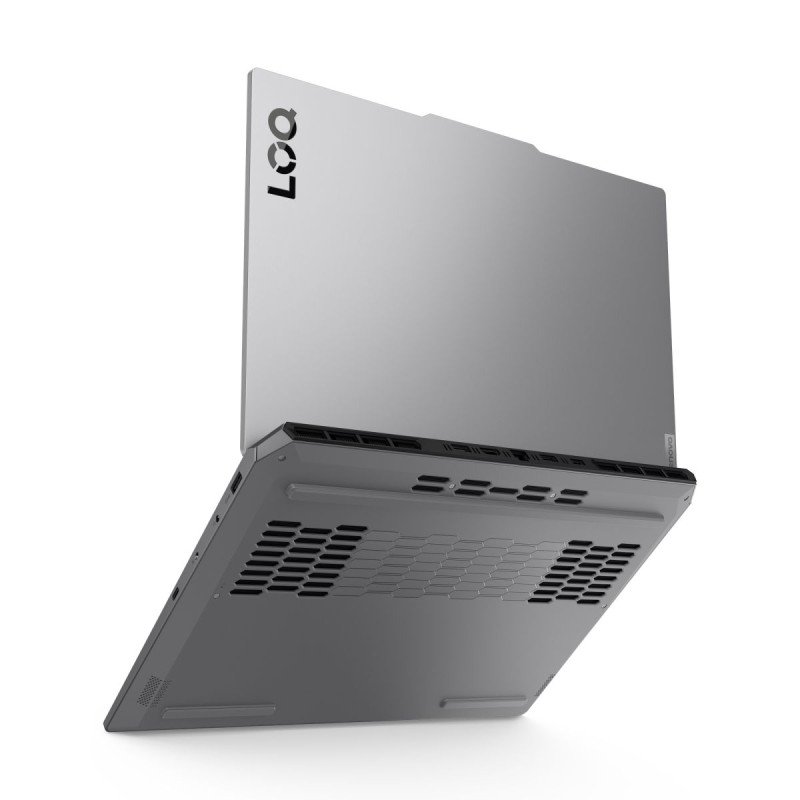

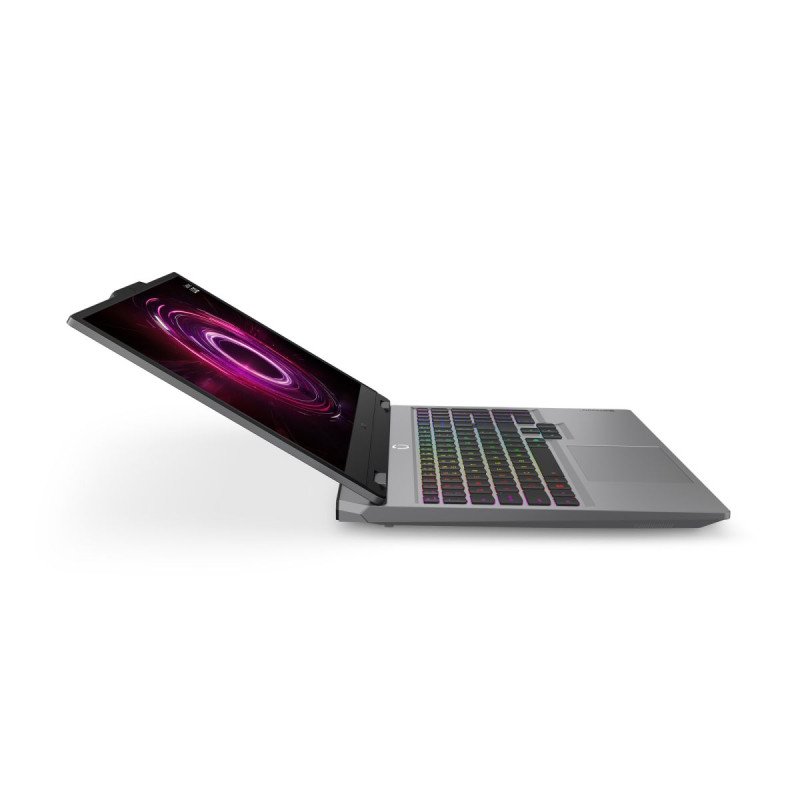

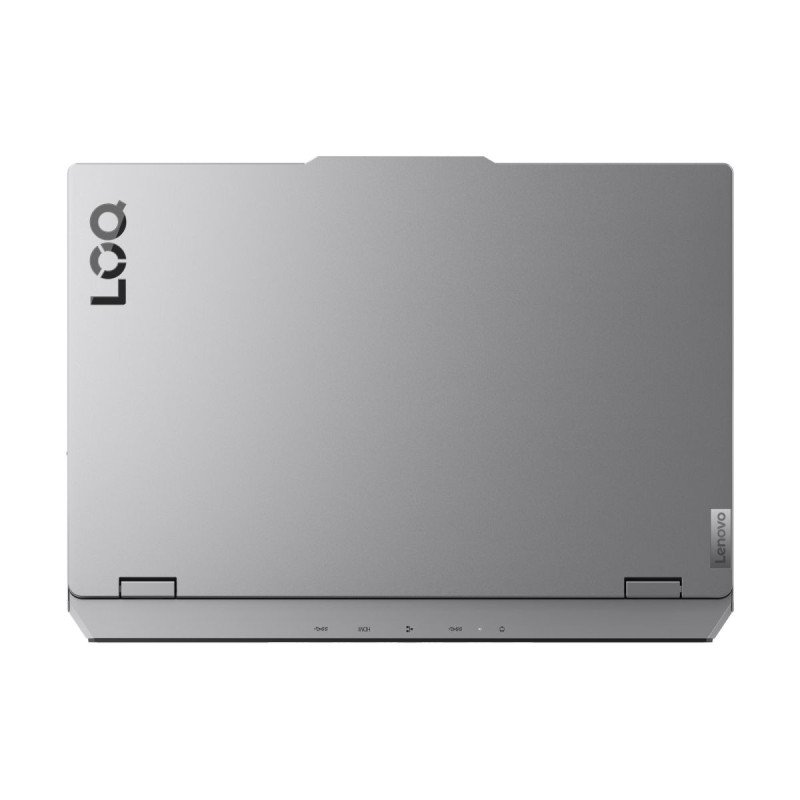

LOQ 15AHP10

Technical Specifications

• Summary: Lenovo LOQ 15AHP10. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen 5, Processor model: 220, Processor frequency: 3.2 GHz. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 24 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 740M, Discrete graphics card model: NVIDIA GeForce RTX 5050. Product colour: Grey
• Vendor Homepage: https://psref.lenovo.com/l/Detail/LOQ_15AHP10?M=83JG00EQRM
• Name: NB LOQ-15AHP10 R5-220 15"/24/512GB 83JG00EQRM LENOVO
• Category Code: NB
• Model name: LOQ 15AHP10
• Processor manufacturer: AMD
• Processor family: AMD Ryzen 5
• Processor generation: AMD Ryzen 200 Series
• Processor model: 220
• Processor cores: 6
• Processor threads: 12
• Processor boost frequency: 4.9
• Processor frequency: 3.2
• Processor cache type: L2 & L3
• L3 cache: 16
• L2 cache: 6
• Display diagonal: 15.6
• Display resolution: 1920 x 1080
• Panel type: IPS
• HD type: Full HD
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 300
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 144
• Contrast ratio (typical): 1000:1
• Colour name: Luna Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
• Market positioning: Gaming
• Internal memory: 24
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 24
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5050
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 740M
• NVIDIA G-SYNC: Yes
• Audio chip: Realtek ALC3287
• Audio system: Nahimic Audio
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720
• Privacy camera: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Motherboard chipset: AMD SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: White
• Keyboard language: English
• Copilot key: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 60
• Battery life (max): 4.4
• Continuous video playback time: 10.4
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 170
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 100
• USB Type-C required charging power (min): 65
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD/Power on/User
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ErP Lot 6/26 RoHS compliant TÜV Rheinland Low Blue Light (Software Solution)
• Sustainability certificates: ErP
• Width: 359.86
• Depth: 258.7
• Height (front): 21.9
• Height (rear): 23.9
• Weight: 2400
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01469
• Unit Calculated Weight: 5
