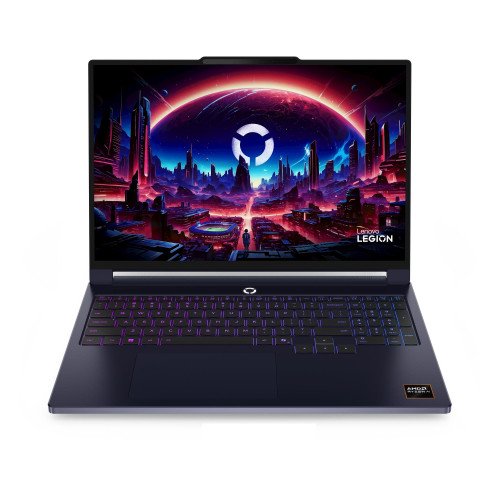

Legion 7 16AGP11

Technical Specifications

• Summary: Lenovo Legion 7 16AGP11. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ AI 7, Processor model: 450, Processor frequency: 2 GHz. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 860M, Discrete graphics card model: NVIDIA GeForce RTX 5060. Weight: 1.8 kg
• Vendor Homepage: https://psref.lenovo.com/l/Detail/Legion_7_16AGP11?M=83Q80010RM
• Name: NB L7-16AGP11 RAI7-450 16"/32GB/1TB 83Q80010RM LENOVO
• Category Code: NB
• Processor manufacturer: AMD
• Processor family: AMD Ryzen AI 7
• Processor model: 450
• Processor cores: 8
• Processor threads: 16
• Processor boost frequency: 5.1
• Processor frequency: 2
• Processor cache type: L2 & L3
• L3 cache: 16
• L2 cache: 8
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: OLED
• HD type: WQXGA
• LED backlight: Yes
• Native aspect ratio: 16:9
• Display surface: Gloss
• Maximum display brightness (HDR): 1100
• Standard Dynamic Range (SDR) brightness: 500
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 240
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000
• Colour name: Nebula
• Product type: Laptop
• Form factor: Clamshell
• Display back cover material: Aluminium
• Housing material: Aluminium
• Market positioning: Gaming
• Neural processor unit (NPU): AMD Ryzen AI
• Total processor performance up to: 66
• NPU performance up to: 50
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8533
• Memory form factor: On-board
• Maximum internal memory: 32
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5060
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 860M
• NVIDIA G-SYNC: Yes
• Audio chip: Realtek ALC3306
• Audio system: Nahimic Audio
• Number of built-in speakers: 4
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB4 Gen 3x2 ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: AMD SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 24-zone RGB
• Keyboard language: English
• Copilot key: Yes
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 84
• Battery life (max): 12.8
• Continuous video playback time: 14.8
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 245
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 140
• USB Type-C required charging power (min): 65
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: HDD/Power on/User
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Certification: ErP Lot 6/26 RoHS compliant Pantone SkinTone Validated Pantone Validated TÜV Rheinland Flicker Free TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution)
• Width: 361.35
• Depth: 254.16
• Height (front): 15.5
• Height (rear): 16.9
• Weight: 1800
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01309
• Unit Calculated Weight: 3.4
