IdeaPad

Technical Specifications

• Description:
  • Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB
  • 16" WUXGA (1920x1200) IPS 300nits Glossy 45% NTSC 60Hz TÃœV Low Blue Light Glass Touch
  • 16GB LPDDR5x-8000
  • 512GB SSD M.2 2242 PCIe 4.0x4 NVMe
  • Intel Graphics
  • Windows 11 Home

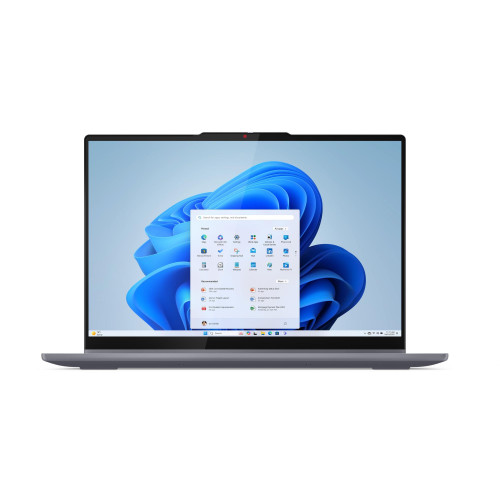

• Summary: Lenovo IdeaPad 5 2-in-1 16IAL10. Product type: Hybrid (2-in-1), Form factor: Convertible (Folder). Processor family: Intel Core Ultra 5, Processor model: 225U. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Home. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/
• Name: NB IP5-16IAL10 CU5-225U 16"T/16/512GB 11P 83KS001LRM LENOVO
• Category Code: NB
• NB Family name: IdeaPad
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 5
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 225U
• Processor cores: 12
• Processor threads: 14
• Processor boost frequency: 4.8
• Performance cores: 2
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 4.8
• Efficient-core Max Turbo Frequency: 3.8
• Low Power Efficient-core Max Turbo Frequency: 2.4
• Performance-core base frequency: 1.5
• Efficient-core base frequency: 1.3
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 12
• Maximum turbo power: 57
• Processor base power: 15
• Display diagonal: 16
• Display resolution: 1920 x 1200
• Panel type: IPS
• HD type: WUXGA
• Touchscreen: Yes
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 300
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Colour name: Luna Grey
• Product type: Hybrid (2-in-1)
• Product colour: Grey
• Form factor: Convertible (Folder)
• Housing material: Acrylonitrile butadiene styrene (ABS),Aluminium,Glass fibre,Polycarbonate (PC)
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Internal memory: 16
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8000
• Memory form factor: On-board
• Maximum internal memory: 16
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio chip: Realtek ALC3287
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Ethernet LAN: No
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 1.4b
• Combo headphone/mic port: Yes
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Operating system language: English/ROM
• Trial software: Office
• Operating system installed: Windows 11 Home
• Battery capacity: 57
• AC adapter power: 65
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Fingerprint reader: No
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: ENERGY STAR,EPEAT Gold,RoHS
• Width: 356
• Depth: 255
• Height: 18.4
• Weight: 2000
• AC adapter included: Yes
• Stylus pen: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.12555
• Unit Calculated Weight: 3
