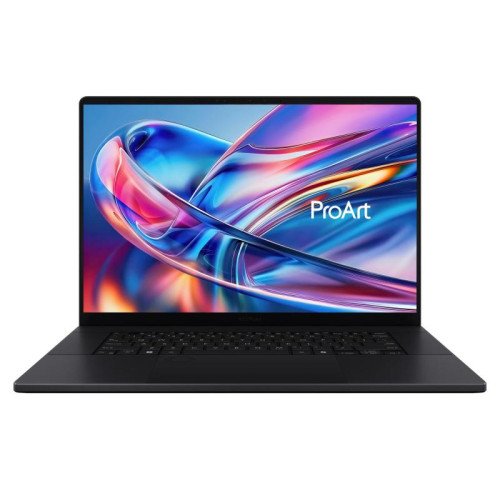

ProArt P16

Technical Specifications

• Summary: ASUS ProArt P16 H7606WX-SE056X. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 9 HX, Processor model: 370, Processor frequency: 2 GHz. Display diagonal: 40.6 cm (16"), HD type: WQUXGA, Display resolution: 3840 x 2400 pixels, Touchscreen. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. Operating system installed: Windows 11 Pro. Product colour: Black
• Vendor Homepage: https://www.asus.com/laptops/for-creators/proart/proart-p16-h7606
• Name: NB H7606WX RAI9-HX370 16"T 64G/2TB 11P H7606WX-SE056X ASUS
• Category Code: NB
• NB Family name: ProArt
• Model name: H7606WX-SE056X
• Processor manufacturer: AMD
• Processor family: AMD Ryzen AI 9 HX
• Processor generation: AMD Ryzen AI 300 Series
• Processor model: 370
• Processor cores: 12
• Processor threads: 24
• Processor boost frequency: 5.1
• Processor frequency: 2
• Processor cache type: L2 & L3
• L3 cache: 24
• L2 cache: 12
• Display diagonal: 16
• Display resolution: 3840 x 2400
• Panel type: OLED
• HD type: WQUXGA
• Touchscreen: Yes
• Display number of colours: 1.07 billion colours
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Maximum display brightness (HDR): 1600
• Colour gamut: 100
• Low Blue Light technology: Yes
• RGB colour space: DCI-P3
• Display response rise/fall: 0.2
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000
• Colour name: Nano Black
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Display back cover material: Aluminium
• Housing material: Aluminium
• Copilot+ PC: Yes
• Neural processor unit (NPU): AMD Ryzen AI
• Total processor performance up to: 80
• NPU performance up to: 50
• Internal memory: 64
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Maximum internal memory: 64
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• Number of SSDs installed: 1
• SSD capacity: 2000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5090
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 24
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 890M
• Audio system: Smart Amp
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• USB4 Gen 3x2 ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes
• Repairability index: 9.5
• Pointing device: Touchpad + DialPad
• Keyboard backlit: Yes
• Copilot key: Yes
• Operating system architecture: 64-bit
• Microsoft Copilot: Yes
• Trial software: 1-month trial for new Microsoft 365 customers. Credit card required.
• Operating system installed: Windows 11 Pro
• Bundled software: 6-Month GoPro Premium+ Subscription Three-Month Membership of Adobe Creative Cloud All Apps, Individual.The redemption duration from September 15, 2021 to August 31, 2026.
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 90
• AC adapter power: 240
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 12
• AC adapter output voltage: 20
• DC-in jack: Yes
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 100
• USB Type-C required charging power (min): 45
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR
• Width: 354.9
• Depth: 246.9
• Height (front): 14.9
• Height (rear): 18.3
• Weight: 1950
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.05016
• Unit Calculated Weight: 6.5
