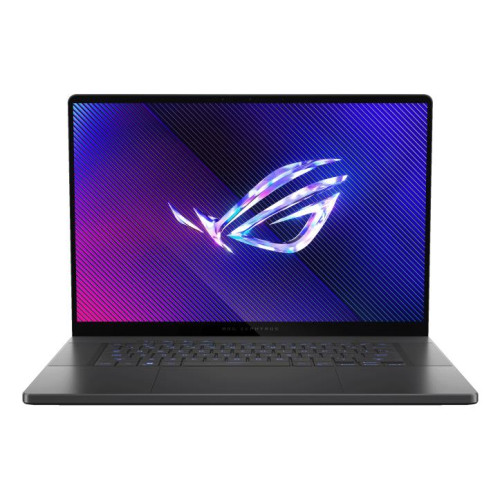

ROG Zephyrus GU605CR-QR123

Technical Specifications

• Summary: ASUS ROG Zephyrus G16 GU605CR-QR123. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 40.6 cm (16"), HD type: 2.5K, Display resolution: 2560 x 1600 pixels. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA GeForce RTX 5070 Ti. Product colour: Grey. Weight: 1.95 kg
• Vendor Homepage: https://rog.asus.com/laptops/rog-zephyrus/rog-zephyrus-g16-2025-gu605/
• Name: NB GU605CR CU9-285H 16"/64GB/1TB GU605CR-QR123 ASUS
• Category Code: NB
• NB Family name: ROG Zephyrus
• Model name: GU605CR-QR123
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 285H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.4
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.5
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2.9
• Efficient-core base frequency: 2.7
• Low Power Efficient-core Base Frequency: 1000
• Processor cache: 24
• Maximum turbo power: 115
• Processor base power: 45
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: OLED
• HD type: 2.5K
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Eclipse Gray
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Market positioning: Gaming
• Introduction year: 2025
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 99
• NPU performance up to: 13
• GPU performance up to: 77
• Internal memory: 64
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 7467
• Memory form factor: On-board
• Maximum internal memory: 64
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070 Ti
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 12
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T
• Audio system: Dolby Atmos
• Number of built-in speakers: 4
• Built-in microphone: Yes
• Number of microphones: 3
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 1-zone RGB
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 90
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 240
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 12
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 100
• USB Type-C required charging power (min): 45
• USB Power Delivery (USB PD): Yes
• Face recognition: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS/User
• Width: 354
• Depth: 246
• Height (front): 14.9
• Height (rear): 17.4
• Weight: 1950
• Mouse connectivity: Wired
• Mouse included: Yes
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01995
• Unit Calculated Weight: 5
