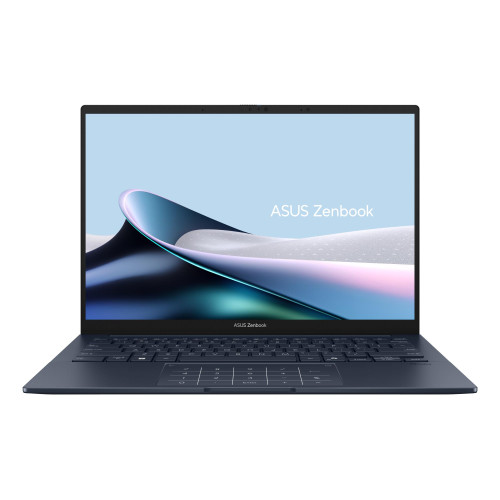

Name: NB UX3405CA CU9-285H 14" 16GB/1TB W11P UX3405CA-ST1077X ASUS
Category Code: NB
NB Family name: ZenBook Series
Model name: UX3405CA-ST1077X
Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 285H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 5.4
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.4
Efficient-core Max Turbo Frequency: 4.5
Low Power Efficient-core Max Turbo Frequency: 2.5
Performance-core base frequency: 2.9
Efficient-core base frequency: 2.7
Low Power Efficient-core Base Frequency: 1000
Processor cache: 24
Processor cache type: Smart Cache
Display diagonal: 14
Display resolution: 2880 x 1800
Panel type: OLED
HD type: 3K
Touchscreen: No
Native aspect ratio: 16:10
Display surface: Gloss
Display brightness: 500
Maximum display brightness (HDR): 1000
Colour gamut: 100
RGB colour space: DCI-P3
Display response rise/fall: 0.2
Maximum refresh rate: 120
Contrast ratio (typical): 1000000:1
High Dynamic Range (HDR) supported: Yes
High Dynamic Range (HDR) technology: DisplayHDR True Black 1000
Colour name: Ponder Blue
Product type: Laptop
Product colour: Blue
Form factor: Clamshell
Housing material: Aluminium
Market positioning: Home
Certified refurbished: No
Copilot+ PC: No
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI datatype support on NPU: Int8
AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
Total processor performance up to: 99
NPU performance up to: 13
GPU performance up to: 77
Internal memory: 16
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-board
Maximum internal memory: 16
Total storage capacity: 1000
Storage media: SSD
Total SSDs capacity: 1000
Number of SSDs installed: 1
SSD capacity: 1000
NVMe: Yes
SSD interface: PCI Express 4.0
M.2 SSD size: 2280 (22 x 80 mm)
SSD form factor: M.2
Optical drive type: No
Discrete graphics card: No
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card: Yes
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc 140T
On-board graphics card 4K support: Yes
On-board graphics card 8K support: Yes
Graphics card Open GL support: Yes
Audio system: Smart Amp
Built-in microphone: Yes
Front camera: Yes
Front camera HD type: Full HD
Front camera resolution: 1920 x 1080
Infrared (IR) camera: Yes
Privacy camera: Yes
Privacy type: Privacy shutter
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Mobile network connection: No
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Ethernet LAN: No
Bluetooth: Yes
Bluetooth version: 5.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Intel Thunderbolt 4: Yes
Combo headphone/mic port: Yes
USB Type-C DisplayPort Alternate Mode: Yes
Repairability index: 9.3
Pointing device: NumberPad
Keyboard backlit: Yes
Numeric keypad: No
Operating system architecture: 64-bit
Trial software: 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days
Operating system installed: Windows 11 Pro
Bundled software: 3-Month GoPro Premium+ Subscription *Available in eligible markets only. Eligibility varies by region, device, and time. Terms and conditions apply. See promotion pages for details. 1-Month Membership of Adobe Creative Cloud All Apps, Individual. The rede
Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4
Battery capacity: 75
AC adapter power: 65
AC adapter frequency: 50 - 60
AC adapter input voltage: 100 - 240
AC adapter output current: 3.25
AC adapter output voltage: 20
USB Type-C charging port: Yes
USB Type-C required charging power (max): 65
USB Type-C required charging power (min): 45
USB Power Delivery (USB PD): Yes
Face recognition: Yes
Windows Hello: Yes
Trusted Platform Module (TPM): Yes
Password protection: Yes
Compliance certificates: REACH
Certification: US MIL-STD 810H military-grade standard
Sustainability certificates: ENERGY STAR/EPEAT Gold
