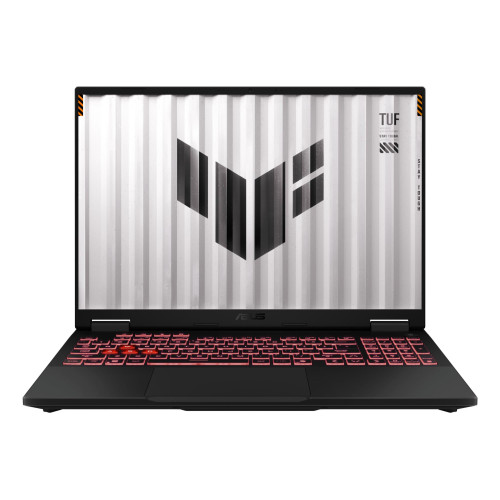

TUF Gaming A16 (2025)

Technical Specifications

• Summary: ASUS TUF Gaming A16 FA608PM-RV065. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzenâ„¢ 9, Processor model: 8940HX, Processor frequency: 2.4 GHz. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 610M, Discrete graphics card model: NVIDIA GeForce RTX 5060. Product colour: Black, Grey
• Vendor Homepage: https://www.asus.com/laptops/for-gaming/tuf-gaming/asus-tuf-gaming-a16-2025/
• Name: NB FA608PM R9-8940HX 16"/16GB/1TB FA608PM-RV065 ASUS
• Category Code: NB
• NB Family name: TUF
• Model name: Gaming A16 (2025)
• Processor manufacturer: AMD
• Processor family: AMD Ryzenâ„¢ 9
• Processor generation: AMD Ryzen 8000 Series
• Processor model: 8940HX
• Processor cores: 16
• Processor threads: 32
• Processor boost frequency: 5.3
• Processor frequency: 2.4
• Processor cache type: L2 & L3
• L3 cache: 64
• L2 cache: 16
• Display diagonal: 16
• Display resolution: 1920 x 1200
• Panel type: IPS-Level
• HD type: WUXGA
• Touchscreen: No
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 165
• Colour name: Jaeger Gray
• Product type: Laptop
• Product colour: Black,Grey
• Form factor: Clamshell
• Market positioning: Gaming
• Introduction year: 2025
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5200
• Memory form factor: SO-DIMM
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: No
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5060
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 610M
• NVIDIA G-SYNC: Yes
• Audio system: Dolby Atmos
• Number of built-in speakers: 2
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 1-zone RGB
• Copilot key: Yes
• Operating system installed: No
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 90
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 280
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 14
• AC adapter output voltage: 20
• DC-in jack: Yes
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Face recognition: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS/User
• Width: 354
• Depth: 269
• Height (front): 17.9
• Height (rear): 27.3
• Weight: 2200
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01419
• Unit Calculated Weight: 5
